Lauer PCS095.S Operator Panel – Obsolete PCS Series Spare Part

Technical Dossier

Product Details And Specifications

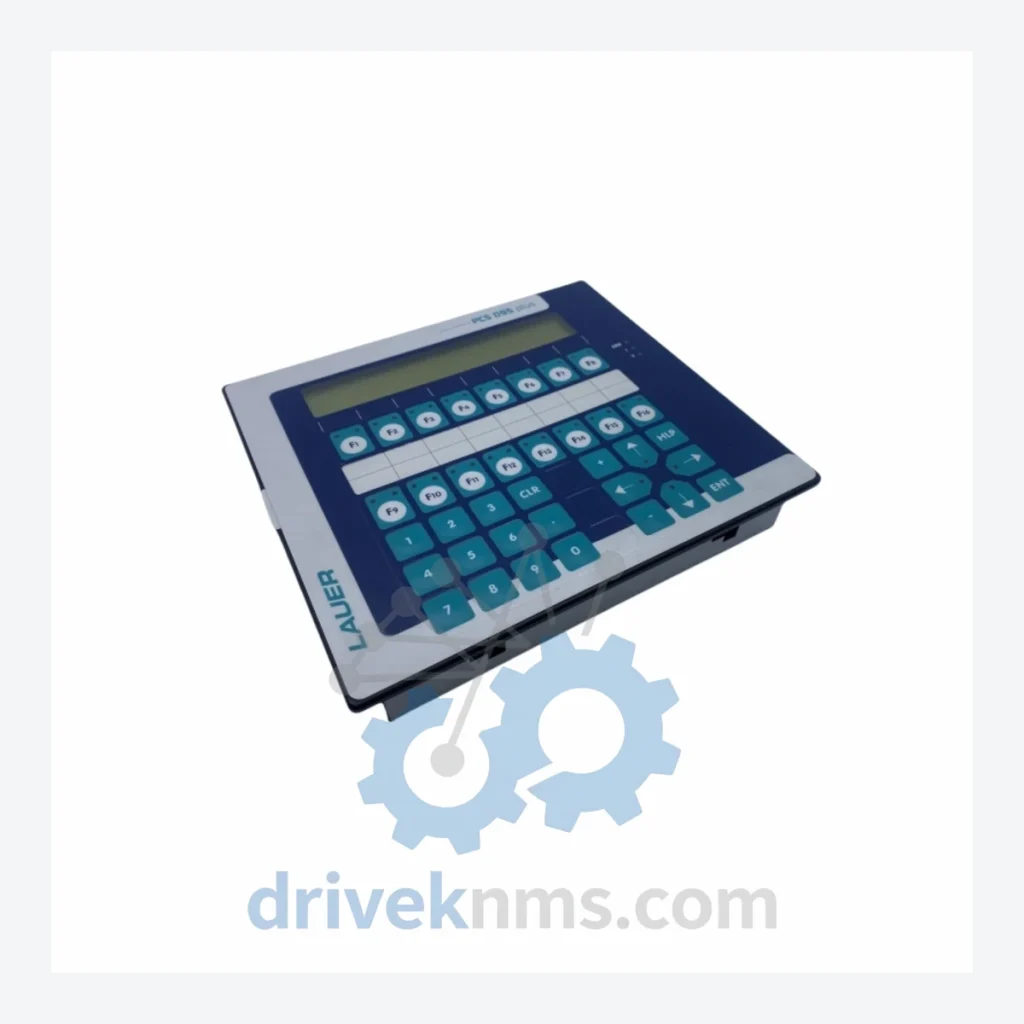

Lauer PCS095.S Operator Panel – Obsolete PCS Series Spare Part

When a Lauer PCS095.S operator panel fails on an active production line, the consequences are not limited to a maintenance call. For facilities still running legacy Lauer PCS Series HMI infrastructure, this single component is the human-machine interface that operators depend on for every process command, alarm acknowledgment, and parameter adjustment. Its failure does not pause production — it stops it. A forced migration to a modern HMI platform, including new hardware, software licensing, PLC re-engineering, operator retraining, and system validation, routinely costs between $150,000 and $800,000 USD per line, and that figure does not account for lost production revenue during the transition period.

DriveKNMS maintains verified stock of the Lauer PCS095.S (095S-i) operator panel. This is not a substitute or functional equivalent — it is the original hardware, sourced through controlled industrial channels, inspected, and held specifically for facilities that have made the deliberate decision to extend the operational life of their existing automation assets rather than absorb the cost of premature system retirement.

Technical Specifications

Note: Electrical parameters such as supply voltage, display resolution, and communication interface specifications are not published here to avoid inaccuracy. Confirmed technical datasheets are available upon request.

Solving the Discontinued Hardware Crisis

Lauer's PCS Series operator panels were widely deployed across European and Asian manufacturing facilities throughout the 1990s and early 2000s, integrated into machine tool controls, packaging lines, and process automation cells. Lauer ceased active production and support for this series years ago, and authorized spare parts channels have been closed for an extended period.

The PCS095.S occupies a specific role in these installations: it is the primary operator interface, and in most configurations it cannot be replaced by a generic HMI without modifying the underlying communication architecture. Facilities that have attempted to substitute third-party panels have encountered protocol incompatibilities, requiring PLC firmware changes or custom communication drivers — work that introduces new failure points and demands engineering hours that were never budgeted.

The most cost-effective path for a plant manager facing a failed PCS095.S is straightforward: source an original replacement unit, restore the line, and implement a structured spare parts buffer to prevent recurrence. This approach preserves the existing validated process, avoids re-qualification costs, and keeps the production asset generating revenue for the remainder of its economic life.

How to extend your automation asset life by 5–10 years through strategic spare parts management:

• Identify single-point-of-failure components. The operator panel is typically the highest-risk item in legacy HMI systems — it is the most frequently touched, most exposed to environmental stress, and the hardest to source once discontinued. Prioritize it in your spare parts inventory plan.
• Establish a minimum buffer of two units. One unit in active service, one in sealed storage. For high-utilization lines running three shifts, consider three units. The carrying cost of a spare panel is a fraction of one hour of unplanned downtime.
• Document your current firmware and configuration. Before any maintenance event, back up all operator panel configurations and parameter sets. This eliminates re-commissioning time when a replacement unit is installed.
• Negotiate long-term supply agreements with specialist distributors. Spot-market pricing for obsolete parts increases significantly as remaining global stock depletes. Securing inventory now, at current pricing, is a measurable cost-avoidance action.
• Schedule proactive panel inspections annually. Electrolytic capacitor degradation, display backlight aging, and membrane keypad wear are predictable failure modes. Catching them before failure converts an emergency replacement into a planned maintenance event.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality process to all obsolete operator panels before dispatch:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, keypad membrane assessment, and corrosion screening on all exposed contacts.
2. Electrolytic capacitor evaluation: Capacitors are the primary age-related failure mode in panels of this generation. Units with measurable capacitance drift or visible swelling are rejected from stock.
3. Firmware version verification: Where accessible, firmware revision is confirmed and documented. Units with unknown or corrupted firmware states are flagged and disclosed prior to sale.
4. Functional power-on test: Each unit is powered and tested for display function, keypad response, and communication port activity under controlled conditions.
5. Packaging for long-term storage: Units are sealed in anti-static packaging with desiccant, suitable for warehouse storage periods of 12–36 months without degradation.

Key Features for System Maintenance

• Drop-in replacement: The PCS095.S installs directly into existing panel cutouts and connects to existing wiring harnesses without modification.
• No reprogramming required: Configuration is retained in the host PLC or transferred from backup. Operator retraining is not required.
• Avoids engineering reconstruction costs: Using the original hardware eliminates the need for communication protocol adaptation, custom driver development, or system re-validation.
• Preserves production continuity: Restoring a failed panel with an original unit returns the line to its validated operating state — the same state that passed your last process audit.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New Old Stock units carry a 180-day warranty. Warranty terms are confirmed in writing prior to order confirmation.

How do I know the unit is genuine and not counterfeit?
All units are sourced from documented industrial channels — decommissioned equipment, authorized distributor closeouts, and verified OEM surplus. Physical markings, serial number formats, and board construction are cross-referenced against known-good references. Units that do not pass authentication screening are not sold.

Should I buy more than one unit?
For any production line where this panel is a single point of failure, holding a minimum of one spare unit in sealed storage is a standard risk management practice. For critical lines or multi-shift operations, two spares is the recommended minimum. The cost of a second unit is recoverable in less than one hour of avoided downtime.

Can you source additional units if I need more?
Global stock of the PCS095.S is finite and depleting. DriveKNMS maintains active sourcing channels for this series. Contact us with your quantity requirement and we will confirm availability and lead time.
