LEE LASER AQS Series Modules

Technical Dossier

Product Details And Specifications

LEE LASER AQS Series: Comprehensive Module Range and Technical Overview

The LEE LASER AQS (Acousto-Optic Q-Switch) Series represents a specialized line of RF-driven acousto-optic modulators engineered for integration into solid-state Nd:YAG and Nd:YVO4 laser systems. These components are deployed across high-demand industrial environments including semiconductor wafer scribing, precision metal marking, ophthalmological laser surgery systems, and military rangefinding platforms. The AQS Series has established a significant installed base in facilities where pulse repetition rate control, beam quality (M²), and long-term MTBF are non-negotiable operational parameters. In chemical processing plants and defense manufacturing lines, LEE LASER AQS modules are specified as OEM-grade components within Q-switched laser heads, where replacement sourcing directly impacts production uptime.

The Evolution of AQS Architecture

The AQS Series originated from LEE LASER's development of intracavity acousto-optic modulators in the late 1980s and early 1990s, targeting the then-emerging market for pulsed Nd:YAG laser systems in industrial material processing. Early-generation units such as the AQS-110 and AQS-150 operated at fixed RF drive frequencies (typically 27.12 MHz) with analog modulation interfaces and required external RF power amplifiers. These units were designed for free-space intracavity insertion with Brewster-angle AR-coated fused silica transducer substrates.

By the mid-1990s, LEE LASER introduced the AQS-200 and AQS-220 sub-series, incorporating integrated RF driver electronics and TTL-compatible digital trigger inputs, reducing system integration complexity. The transition to the AQS-270 platform in the early 2000s marked a significant architectural shift: modular RF driver boards, improved thermal management via direct-bonded copper (DBC) substrates, and compatibility with both 50 MHz and 80 MHz drive frequencies for higher repetition rate applications.

The AQS-274 sub-series — including the AQS-274AM1B3A1 — represents the mature-generation platform, featuring multi-layer AR coatings optimized for 1064 nm, 532 nm, and 355 nm wavelengths, and configurable RF power levels (typically 1–10 W). As of 2026, the AQS-274 platform is in the late-mature/early-obsolescence phase of its product lifecycle. LEE LASER has transitioned newer system designs to fiber-coupled AOM configurations, but the AQS-274 series remains the dominant replacement part for installed Nd:YAG laser systems manufactured between 2000 and 2018. Long-term maintenance support for these units is a primary sourcing requirement for laser service organizations globally.

AQS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the LEE LASER AQS Series. Units are categorized by functional role within the laser system architecture:

Intracavity Q-Switch Modules (Core AOM Units)

• AQS-110: Early-generation 27.12 MHz intracavity AOM, fused silica substrate, analog RF input, free-space mount.
• AQS-150: 27.12 MHz AOM with improved AR coating for 1064 nm, external RF amplifier required, Brewster-angle configuration.
• AQS-200: Integrated RF driver, TTL trigger input, 40 MHz drive frequency, designed for 10–50 kHz PRR Nd:YAG systems.
• AQS-210: Variant of AQS-200 with extended temperature range (-10°C to +60°C), for industrial enclosure deployment.
• AQS-220: Dual-frequency (27.12 / 40 MHz) selectable AOM, TTL and analog modulation inputs, 1064 nm optimized.
• AQS-230: High-repetition-rate variant, 50 MHz drive, optimized for 20–100 kHz PRR, reduced insertion loss (<0.5 dB).
• AQS-250: 80 MHz drive frequency AOM, TeO₂ crystal substrate, for high-speed beam deflection and Q-switching applications.
• AQS-260: Compact form-factor intracavity AOM, 50 MHz, integrated thermal sensor output, for OEM laser head integration.
• AQS-270: Platform-generation AOM, modular RF driver board architecture, 50/80 MHz selectable, DBC thermal substrate.
• AQS-272: AQS-270 variant with enhanced AR coating stack for 532 nm (frequency-doubled) applications.
• AQS-274: Standard production variant of the AQS-270 platform, 1064 nm primary, configurable RF power 1–10 W, TTL/analog input.

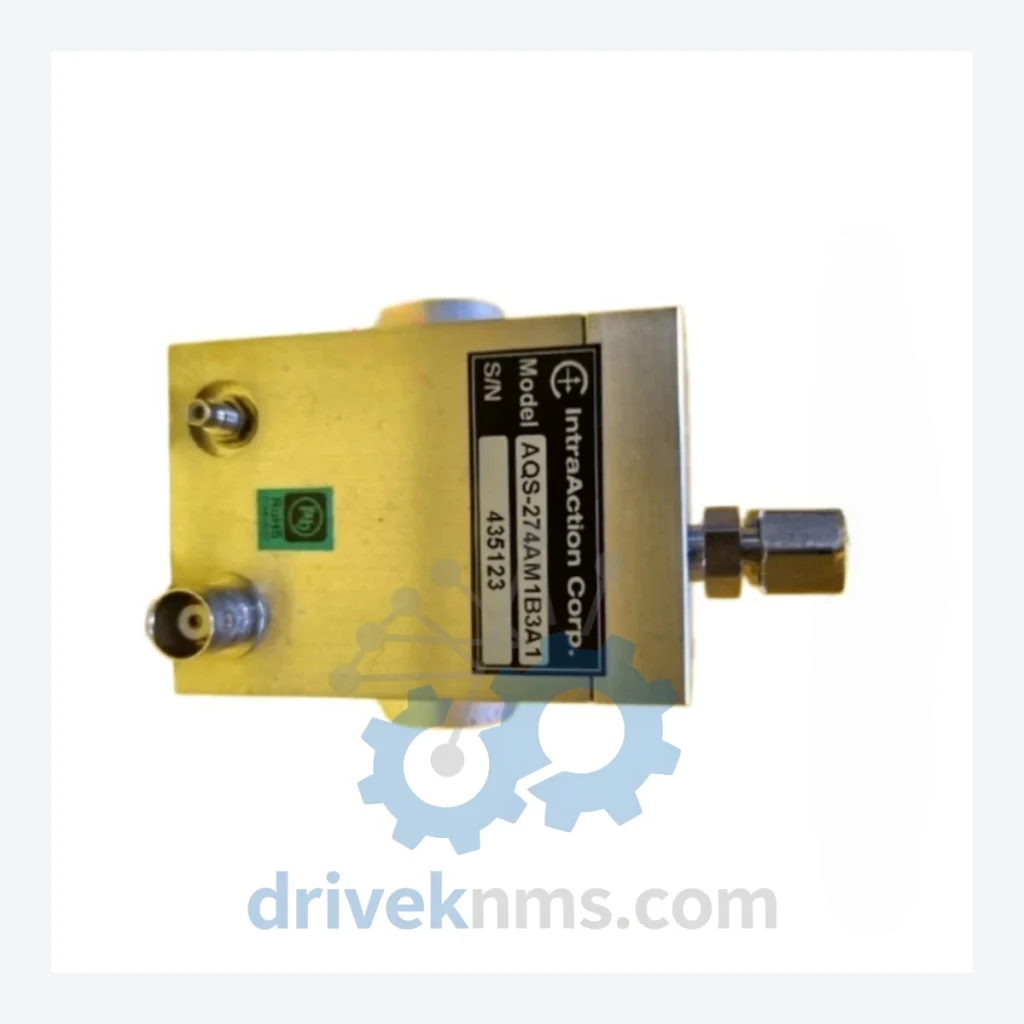

• AQS-274AM1B3A1: AQS-274 with AM1 RF amplifier module, B3 mounting bracket configuration, A1 AR coating (1064 nm, R<0.25%), full OEM assembly.
• AQS-274AM1B3A2: AQS-274AM1B3 with A2 AR coating optimized for 1064 nm / 532 nm dual-wavelength operation.
• AQS-274AM2B3A1: AQS-274 with AM2 high-power RF amplifier (up to 15 W), B3 bracket, A1 coating, for high-average-power laser systems.
• AQS-280: Next-platform AOM, 80 MHz, fiber-pigtailed RF input option, reduced form factor, for compact diode-pumped solid-state (DPSS) lasers.
• AQS-290: High-isolation AOM variant, >50 dB extinction ratio, dual-pass configuration, for ultra-low leakage Q-switch applications in precision metrology.

RF Driver & Amplifier Modules (Ancillary Electronics)

• AQS-RF-27: Standalone 27.12 MHz RF driver board, 5 W output, TTL modulation input, for legacy AQS-110/150 retrofit.
• AQS-RF-50: 50 MHz RF driver, 10 W output, RS-232 control interface, compatible with AQS-230/260/270/274 series.
• AQS-RF-80: 80 MHz RF driver, 15 W output, for AQS-250/280/290 series, includes frequency-lock circuit.

Sourcing Hard-to-Find & Obsolete AQS Series Parts

The AQS-110, AQS-150, AQS-200, and AQS-210 models have been formally discontinued by LEE LASER. The AQS-220 and AQS-230 are in end-of-life status with no new production runs confirmed. For facilities operating laser systems built around these components — including legacy Nd:YAG marking systems, ophthalmological laser platforms, and military rangefinders — direct OEM replacement is no longer available through standard distribution channels.

DriveKNMS maintains a dedicated inventory of tested surplus and refurbished AQS Series units, with particular depth in the AQS-270 and AQS-274 sub-series. Our sourcing network covers decommissioned laser system inventories, OEM overstock, and certified refurbishment pipelines. For obsolete RF driver boards (AQS-RF-27, AQS-RF-50), DriveKNMS provides board-level repair and functional equivalency testing against original LEE LASER specifications.

Lifecycle extension services for AQS Series customers include: functional burn-in testing (72-hour continuous operation), RF power output verification against OEM datasheet tolerances, AR coating integrity inspection via laser damage threshold (LDT) spot testing, and full documentation packages for regulated industries (ISO 9001, AS9100 traceability on request).

Quality Control for the AQS Series Range

AQS Series modules present specific QC challenges due to the precision optical alignment of the transducer-to-crystal bond, the sensitivity of AR coatings to handling contamination, and the RF impedance matching requirements of the integrated driver circuits. DriveKNMS applies the following test protocol to all AQS Series units processed through our facility:

• RF Drive Verification: Output power measured at the transducer terminal using a calibrated RF power meter. Tolerance: ±0.5 dB of rated output across the specified frequency band.
• Optical Insertion Loss: Measured at 1064 nm (and 532 nm where applicable) using a calibrated CW Nd:YAG source. Acceptance criterion: insertion loss ≤ OEM datasheet specification + 0.1 dB.
• Extinction Ratio: RF-on vs. RF-off transmitted power ratio measured. Minimum acceptance: 30 dB for standard AQS units, 50 dB for AQS-290.
• TTL Trigger Response: Rise time and fall time of the acoustic wave measured via fast photodetector. Acceptance: within 10% of OEM specification.
• Thermal Stability: Unit operated at rated RF power for 4 hours; optical output monitored for drift. Acceptance: <2% power variation after thermal stabilization.
• AR Coating Inspection: Visual inspection under 10× magnification and UV lamp for coating delamination, contamination, or laser damage sites.
• Mechanical Inspection: Mounting bracket alignment, connector integrity, and crystal housing seal verified against OEM mechanical drawings.
