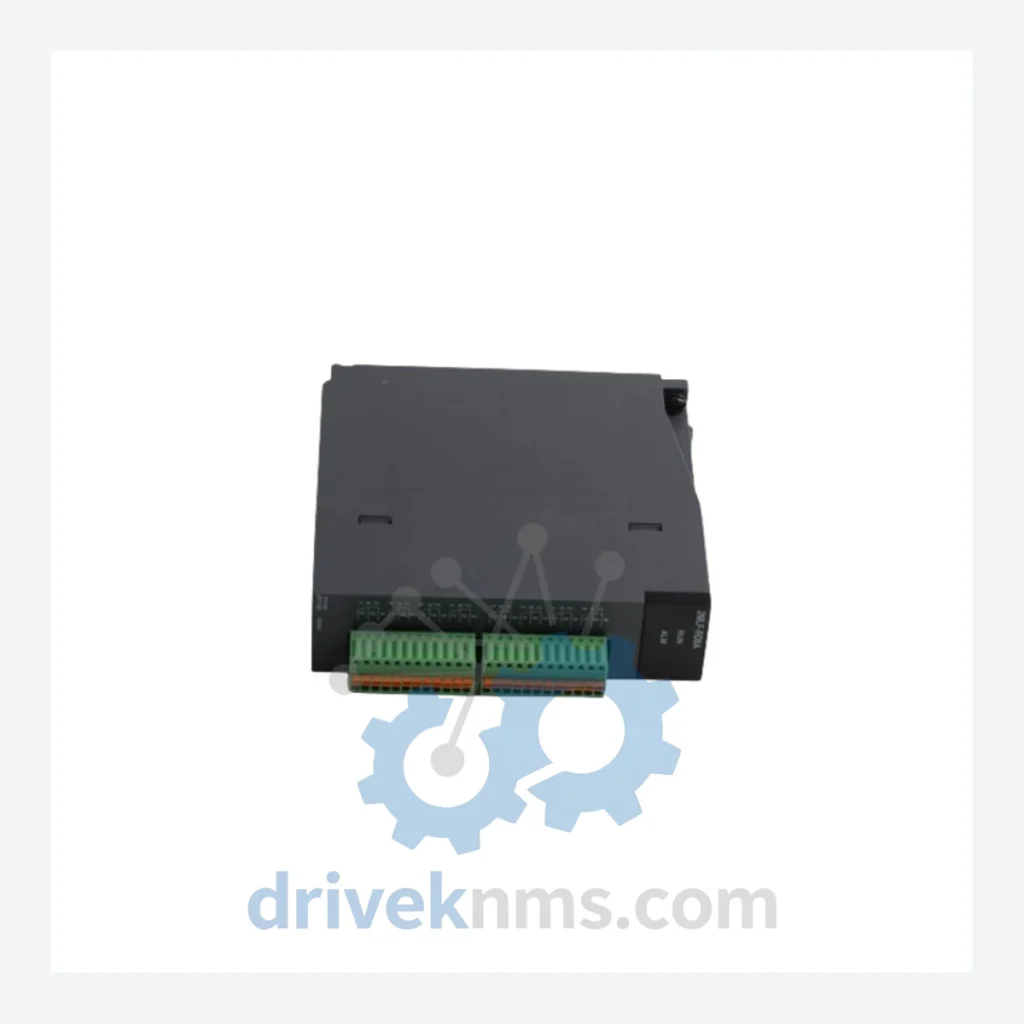

Lenze EPM-S501.2A.10 Analog Output Module – Obsolete EPM Series Spare Part

Technical Dossier

Product Details And Specifications

Lenze EPM-S501.2A.10 Analog Output Module – Obsolete EPM Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as output voltage range, channel count, and resolution are confirmed only against verified documentation. Unverified specifications are intentionally omitted to protect equipment safety.

Solving the Discontinued Hardware Crisis

The Lenze EPM series was widely deployed across European and Asian manufacturing facilities throughout the 1990s and 2000s, integrated into Lenze 8200 Vector and 9300 Servo drive platforms. These systems remain operational in food processing, packaging, textile, and material handling lines where the cost and disruption of full system replacement is not operationally viable.

The EPM-S501.2A.10 analog output module sits at a critical junction in these architectures — translating drive control signals into process-level analog outputs for downstream instrumentation and actuators. There is no plug-compatible modern substitute. Replacing it requires either sourcing the original module or committing to a full drive system redesign.

The strategic approach to legacy system maintenance is not reactive — it is a deliberate asset protection decision. Identifying the three to five highest-risk discontinued components in a drive system and securing verified spares is the lowest-cost insurance available to a maintenance engineering team.

Condition & Reliability Assurance

Discontinued modules sourced from secondary markets carry age-related failure risks that new production parts do not. DriveKNMS applies a 5-step inspection protocol to every EPM-S501.2A.10 unit before it is offered for sale:

• Electrolytic Capacitor Assessment: Visual and functional inspection for capacitor bulging, leakage, and ESR degradation — the most common failure mode in aged analog modules.
• Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for the target drive platform.
• Pin and Connector Inspection: All interface pins and edge connectors are examined for oxidation, corrosion, and mechanical deformation.
• Functional Bench Test: Modules are powered and output signal integrity is verified under controlled conditions.
• Cosmetic and Labeling Review: Part markings, revision labels, and housing integrity are confirmed to match OEM specifications.

Units that do not pass all five stages are not offered for sale. Condition grade is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in Replacement: The EPM-S501.2A.10 installs directly into existing EPM module slots with no mechanical modification required.
• No Reprogramming Required: Drive parameter sets stored in the EPM architecture are retained. Swapping this module does not trigger a parameter reset or require re-commissioning of the drive.
• Avoids Engineering Redesign Costs: Maintaining the original hardware architecture eliminates the need for control system integrator engagement, new I/O mapping, and HMI reconfiguration — costs that typically dwarf the price of the spare module itself.
• Preserves Validated Process Configurations: In regulated industries, replacing a drive system triggers revalidation requirements. Maintaining original hardware avoids that compliance burden entirely.

How do I know the unit is genuine and not a counterfeit?
All units are inspected against OEM physical and labeling specifications. Provenance documentation is provided where available. We do not source from unverified brokers.

Can you source other Lenze EPM series modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components. Contact us with your full part number for availability and pricing.
