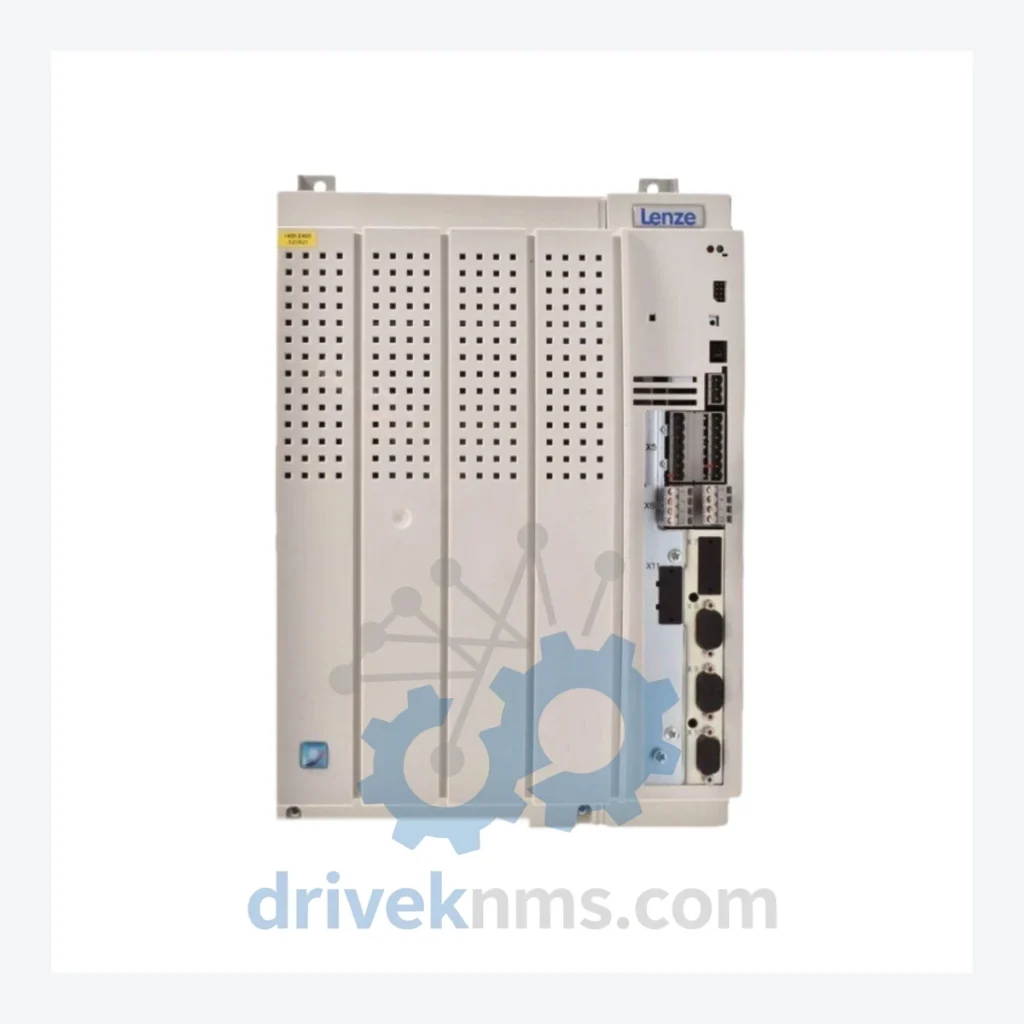

Lenze EVF9328-EHV100 AC Drive – Obsolete EVF Series Spare Part

When a Lenze EVF9328-EHV100 fails on the production floor, the clock starts immediately. This drive is a core motion control component in legacy Lenze EVF Series installations — systems that have been running reliably for decades in paper, textile, material handling, and general manufacturing environments. Replacing the entire control architecture around a discontinued drive is not a matter of weeks; it is a capital project measured in months and millions. A full line retrofit — new drives, new PLCs, new engineering hours, new commissioning, new operator retraining — routinely exceeds USD $500,000 to $2,000,000 for a mid-scale production line. DriveKNMS holds verified stock of the EVF9328-EHV100. Securing one unit today is not a purchasing decision — it is an asset protection decision.

Technical Specifications

Note: Electrical parameters (rated power, input/output voltage, current rating) vary by sub-variant. Contact DriveKNMS with your full nameplate data for confirmation before ordering. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The Lenze EVF 9300 Series was a workhorse platform deployed across European and Asian manufacturing facilities throughout the 1990s and 2000s. Its discontinuation did not retire the machines it controls. Thousands of production lines worldwide still depend on EVF-series drives as the sole motion control interface between the PLC layer and the motor. There is no firmware-compatible, pin-compatible, parameter-compatible successor that can be swapped in without engineering intervention.

For plant managers operating under capital expenditure freezes or facing pressure to defer line modernization, the EVF9328-EHV100 represents a targeted, low-cost intervention. A single verified replacement unit — properly installed and commissioned — can extend the operational life of an existing drive system by 5 to 10 years. That window is sufficient to align a controlled modernization with a planned capital cycle, rather than forcing an emergency retrofit at the worst possible moment.

The cost of one replacement drive is a fraction of one day of unplanned downtime on a production line. Facilities that maintain a minimum buffer stock of one to two critical drive spares consistently outperform those that rely on spot-market sourcing when failures occur. The EVF9328-EHV100 is not a commodity item — it is a system-critical component with no off-the-shelf substitute.

For plant engineers searching: how to extend Lenze EVF 9300 drive life, EVF series replacement without rewiring, keep legacy Lenze drive running, avoid PLC migration cost by replacing VFD — DriveKNMS specializes in sourcing exactly these components.

Condition & Reliability Assurance

Every EVF9328-EHV100 unit processed by DriveKNMS passes a structured 5-step quality assurance protocol before it is offered for sale:

Step 1 – Electrolytic Capacitor Assessment: DC bus capacitors and filter capacitors are inspected for physical swelling, leakage, and ESR degradation. Units with compromised capacitors are either recapped with equivalent-spec components or removed from saleable inventory.

Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility requirements for the EVF 9300 platform. Mismatched firmware is a common source of parameter restore failures after replacement.

Step 3 – Terminal and Pin Corrosion Inspection: All control terminals, power terminals, and communication interface pins are inspected under magnification for oxidation, corrosion, and mechanical damage.

Step 4 – Functional Power-On Test: Where test bench infrastructure permits, units are powered on and basic drive response is verified. Results are documented.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static materials with desiccant. Storage and shipping conditions are controlled to prevent moisture ingress.

Condition grades (New, Refurbished-Tested, Used-Tested) are disclosed at point of sale. No unit is represented as new unless it is confirmed factory-sealed.

Key Features for System Maintenance

The EVF9328-EHV100 is a direct drop-in replacement for the same model position within the EVF 9300 Series:

No rewiring required: Power and control terminal layouts are identical to the original installation. Physical mounting dimensions are unchanged.

No PLC reprogramming required: The replacement drive communicates over the same Lenze system bus protocol. Existing PLC logic, parameter sets, and communication addresses remain valid — provided firmware versions are compatible, which DriveKNMS verifies prior to shipment.

No engineering redesign: A qualified maintenance technician with the original parameter backup can restore the drive to service without engaging a systems integrator.

Cost avoidance: Avoiding a forced migration from the EVF platform to a current-generation drive family eliminates engineering costs, commissioning costs, and the risk of process disruption during changeover.

FAQ

Q: What warranty applies to an obsolete part like the EVF9328-EHV100?
A: DriveKNMS provides a 90-day warranty on all tested and refurbished units covering functional failure under normal operating conditions. New/factory-sealed units carry the original manufacturer warranty where applicable. Warranty terms are confirmed in writing at point of sale.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented supply channels. Lenze nameplate data, serial number ranges, and board markings are verified against known-authentic references. We do not source from unverified grey-market aggregators.

Q: Should I buy more than one unit?
A: For any production line where this drive is a single point of failure, maintaining a minimum of one cold spare is standard practice. For lines running 24/7 or in remote locations where logistics lead times are long, two units is the defensible minimum. Stock of the EVF9328-EHV100 is finite and will not be replenished by the manufacturer.

Q: Can you help me retrieve my original parameter set if I lost the backup?
A: DriveKNMS can advise on parameter recovery options. Contact our technical team with your application details.
