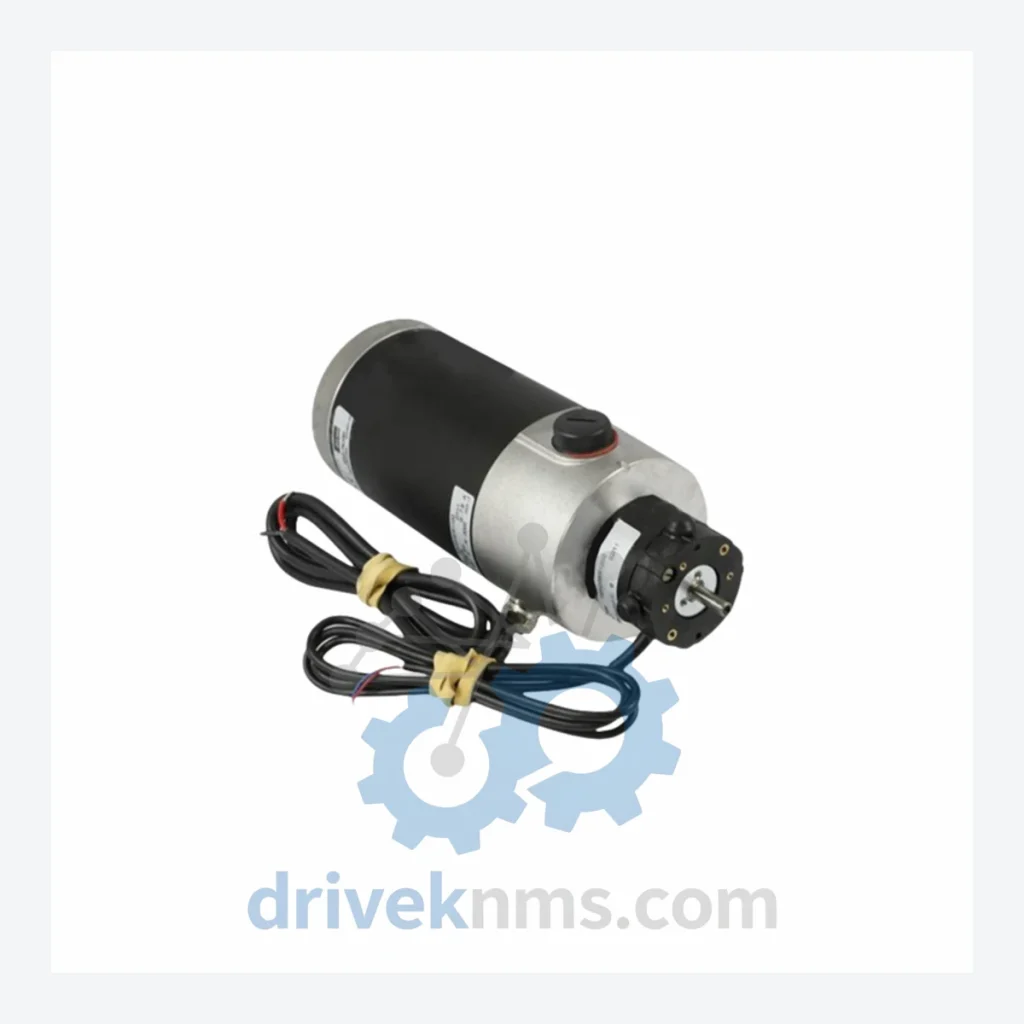

Mattke RX320ER 1100 DC Servo Motor – Obsolete Servo Drive Spare Part

Technical Dossier

Product Details And Specifications

Mattke RX320ER 1100 DC Servo Motor – Obsolete Servo Drive Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (rated torque, speed range, encoder resolution, supply voltage) vary by sub-variant. Confirmed specifications are provided upon request with unit serial number verification. No parameters are published here that cannot be independently verified — accuracy is non-negotiable for servo motor replacement decisions.

Solving the Discontinued Hardware Crisis

Mattke AG built a strong reputation in European precision manufacturing during the 1980s and 1990s. Their RX320ER series servo motors were integrated into high-precision CNC machining centers, grinding machines, and multi-axis transfer lines — equipment that, in many facilities, still runs production today. The problem is structural: the machines themselves have decades of service life remaining, but the servo drive components that make them run are no longer manufactured.

How to extend the service life of automation assets by 5–10 years through strategic spare parts management:

Facilities that implement these five practices consistently report 5–10 additional years of productive life from automation assets that would otherwise face premature retirement.

Condition & Reliability Assurance

Every Mattke RX320ER 1100 unit that passes through DriveKNMS undergoes a structured 5-step quality process before it is offered for sale. This process is designed specifically for the failure modes common to servo motors of this age and design generation.

1. Visual and mechanical inspection. Shaft runout, bearing condition, housing integrity, and connector pin condition are checked against OEM tolerances. Units with corrosion on signal or power pins are rejected at this stage.
2. Electrolytic capacitor assessment. Internal capacitors in the associated drive electronics are among the first components to degrade with age. ESR (Equivalent Series Resistance) testing identifies capacitors that are within specification on voltage but have degraded in performance — a failure mode that causes intermittent faults rather than clean shutdowns.
3. Winding resistance and insulation testing. Armature and field winding resistance is measured and compared against documented reference values. Insulation resistance to ground is tested at appropriate voltage levels.
4. Encoder and feedback device verification. Where the unit includes an integrated encoder or resolver, signal quality and line count are verified against the part number specification.
5. Functional run test. Where test infrastructure permits, units are run under controlled load conditions and monitored for thermal performance, vibration signature, and feedback signal stability.

Units that do not pass all five stages are either reconditioned to standard or removed from saleable inventory. Condition grade is documented and disclosed with every unit shipped.

Key Features for System Maintenance

• Drop-in replacement compatibility. The RX320ER 1100 is a direct mechanical and electrical replacement for the original installation. No modification to mounting, cabling, or feedback wiring is required in standard configurations.
• No reprogramming required. Existing drive parameters, PLC logic, and HMI configurations remain unchanged. Replacement is a maintenance event, not an engineering project.
• Avoids costly system reengineering. Replacing a servo motor with a verified OEM-equivalent unit costs a fraction of what a drive system retrofit requires — in capital, time, and production disruption.
• Documented provenance. Each unit is supplied with a condition report and, where available, traceability documentation. This supports your internal maintenance records and any regulatory or audit requirements.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Should I buy more than one unit?
For any machine where the RX320ER 1100 is a critical axis motor running production on a regular basis, holding a minimum of one spare is a sound risk management decision. For high-utilization or multi-shift operations, two units is a more conservative and defensible position. Global inventory of this model is finite. Procurement decisions made now will not be available at the same terms in 12–24 months.
