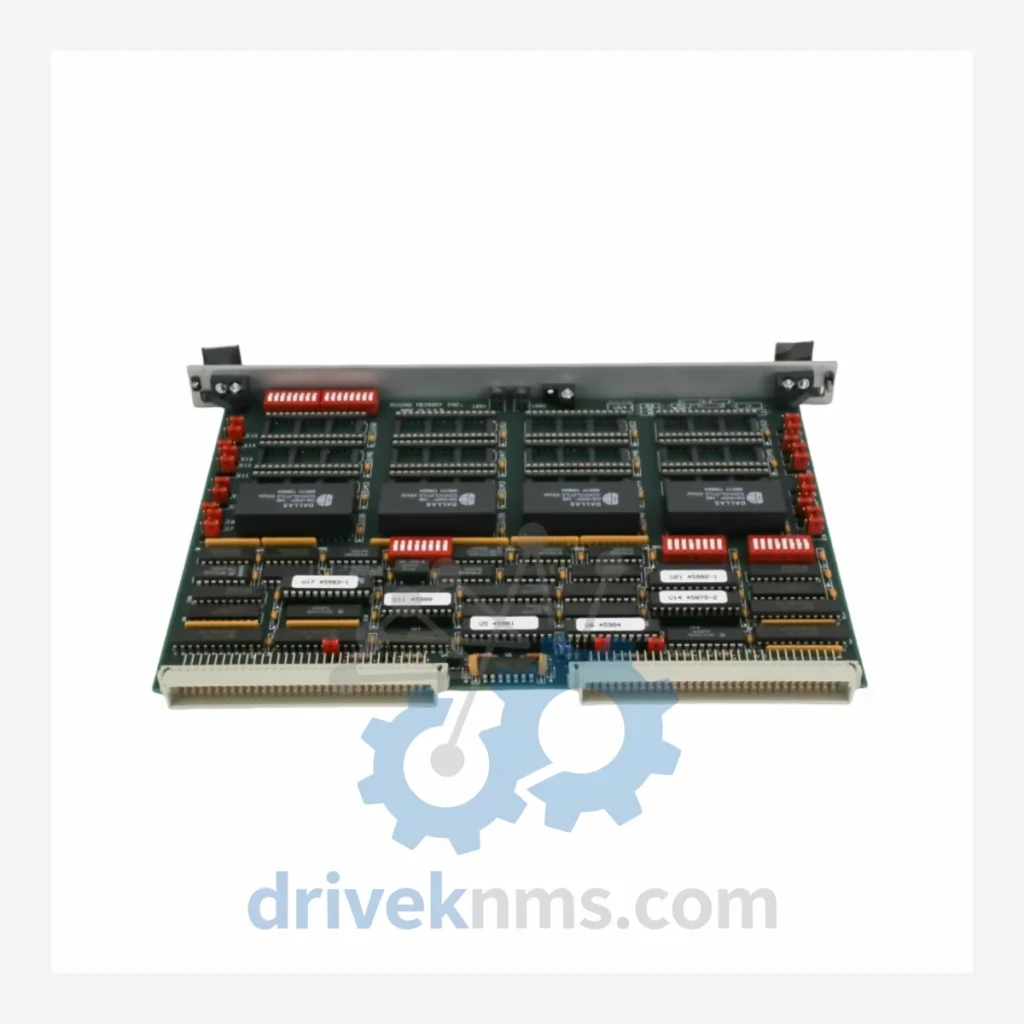

MICRO MEMORY MM-6710 Modules: 93221 MM-6710 SE 0140-06479 0040-92503

Technical Dossier

Product Details And Specifications

MICRO MEMORY MM-6710 Series: Comprehensive Module Range and Technical Overview

The MICRO MEMORY MM-6710 series comprises high-speed static memory modules engineered for deployment in mission-critical industrial control environments. These modules have accumulated significant installed base across global heavy industry sectors including petrochemical processing plants, nuclear power generation facilities, offshore oil and gas platforms, and continuous-process refinery operations. The MM-6710 architecture is designed to interface with legacy DCS and PLC backplane systems where deterministic memory access timing is a hard operational requirement. The series supports non-volatile data retention configurations and is qualified for extended-temperature industrial enclosures. Given the long operational lifecycles typical of process automation infrastructure — often 15 to 25 years — the MM-6710 remains an active spare parts procurement target for maintenance engineering teams worldwide.

The Evolution of MM-6710 Architecture

The MM-6710 series was developed during the transition period between battery-backed SRAM and flash-based non-volatile memory in industrial control systems. Early revisions of the MM-6710 utilized parallel SRAM arrays with dedicated address/data bus interfaces, compatible with VMEbus and proprietary backplane standards prevalent in 1990s-era DCS platforms. Mid-generation revisions introduced improved ECC (Error Correction Code) logic to address single-bit fault tolerance requirements in nuclear and chemical plant applications. Later SE (Standard Edition) variants — including the 93221 SE 0140-06479 0040-92503 — incorporated revised PCB layouts for improved EMI compliance and extended the operating temperature range. Compatibility considerations are critical: MM-6710 modules are slot-specific in many host chassis and are not universally interchangeable across sub-revisions without firmware validation. Procurement teams sourcing replacement units must verify the full part number string, including the SE designation and trailing numeric identifiers, to ensure backplane and firmware compatibility.

MM-6710 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented MM-6710 series range. Each entry reflects a distinct hardware revision, capacity configuration, or interface variant:

93221 MM-6710 SE 0140-06479 0040-92503: High-speed static memory module, SE revision, standard industrial backplane interface.
MM-6710-001: Base revision static RAM module, 256KB capacity, parallel bus interface.
MM-6710-002: 512KB SRAM module, extended address range, VMEbus compatible.
MM-6710-004: 1MB high-speed SRAM, dual-port access, DCS controller slot compatible.
MM-6710-008: 2MB SRAM module, ECC-enabled, for fault-tolerant control applications.
MM-6710-016: 4MB static memory, battery-backed variant, non-volatile data retention.
MM-6710-SE-01: SE-series entry module, revised PCB, improved EMI shielding.
MM-6710-SE-02: SE-series 512KB, enhanced thermal management, extended temp range.
MM-6710-SE-04: SE-series 1MB, dual-port SRAM, process controller interface.
MM-6710-SE-08: SE-series 2MB ECC SRAM, nuclear-grade qualification variant.
MM-6710-SE-16: SE-series 4MB, battery-backed, certified for SIL-2 applications.
MM-6710-HV-01: High-voltage tolerance variant, 512KB, for harsh electrical environments.
MM-6710-HV-04: HV-series 1MB, reinforced bus driver circuitry.
MM-6710-XT-02: Extended-temperature 512KB module, -40°C to +85°C operating range.
MM-6710-XT-08: Extended-temperature 2MB ECC module, offshore platform qualified.
MM-6710-NV-04: Non-volatile 1MB flash-hybrid module, drop-in SRAM replacement.
MM-6710-NV-16: Non-volatile 4MB, flash-backed, for controller program storage applications.

Sourcing Hard-to-Find & Obsolete MM-6710 Parts

The MM-6710 series has entered the mature-to-end-of-life phase of its product lifecycle. MICRO MEMORY has discontinued active production of multiple variants, and OEM channel availability is limited or exhausted for most sub-revisions. DriveKNMS maintains a dedicated inventory program for MM-6710 lifecycle extension, sourcing tested surplus units, factory-refurbished modules, and new-old-stock (NOS) components through a verified global supply network. For plant operators running DCS or PLC systems dependent on MM-6710 memory modules, DriveKNMS provides long-term maintenance supply agreements, emergency same-day quotation, and cross-reference analysis to identify compatible replacement modules where direct equivalents are unavailable. All sourced units are traceable to documented supply chain records. Customers requiring export documentation, country-of-origin certificates, or RoHS compliance declarations can request these at the time of order.

Quality Control for the MM-6710 Range

MM-6710 modules present specific test challenges due to their parallel SRAM bus architecture and backplane-dependent initialization sequences. DriveKNMS applies a multi-stage verification protocol to all MM-6710 units prior to shipment. Stage one involves visual inspection of PCB traces, capacitor condition, and battery cell integrity on battery-backed variants. Stage two executes full memory array read/write/verify cycles using address-pattern stress tests (checkerboard, walking-ones, MATS+) to detect marginal cell failures not visible under standard functional test. Stage three validates bus timing parameters against the original MICRO MEMORY datasheet specifications using logic analyzer capture. For ECC-enabled variants, single-bit error injection and correction verification is performed. Modules with battery backup are tested for retention voltage and estimated remaining battery life is documented. Units that do not pass all stages are quarantined and not offered for sale.
