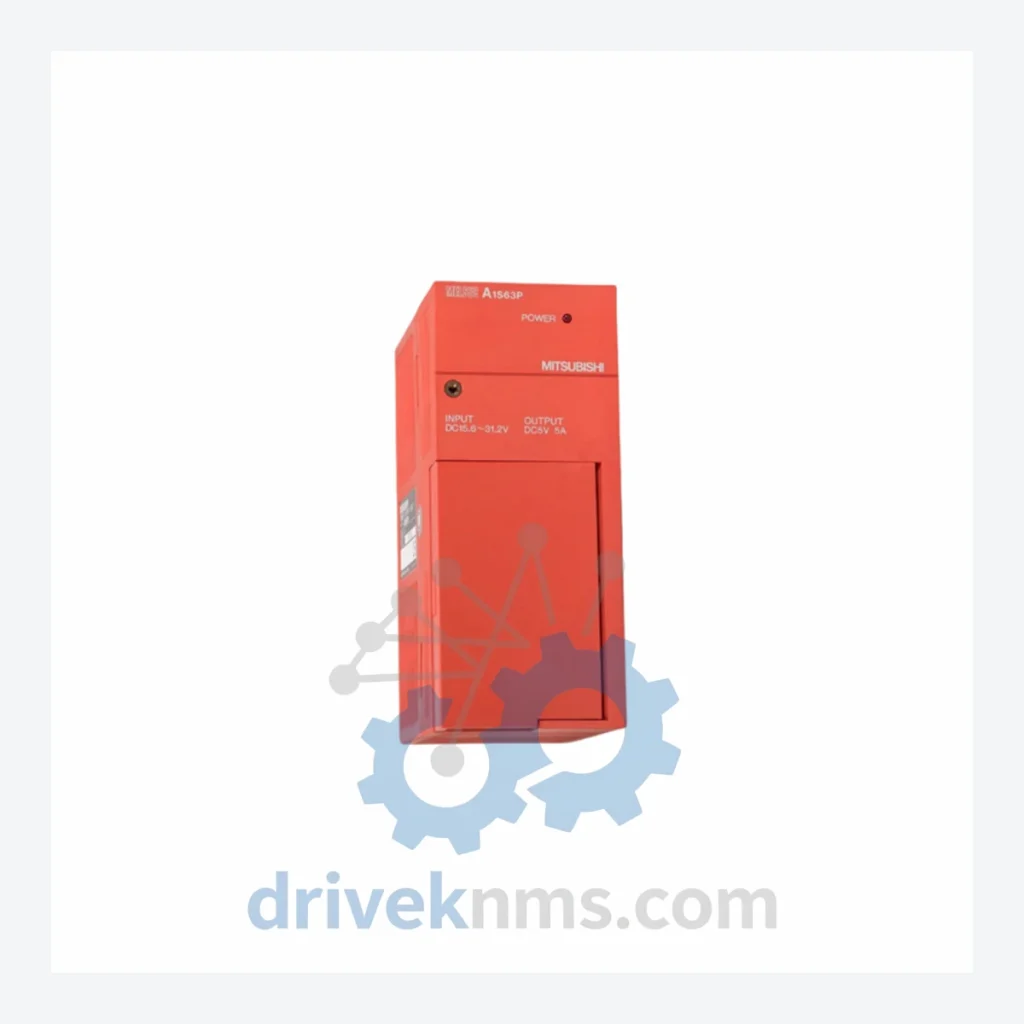

Mitsubishi A1S63P Power Supply Unit – Obsolete MELSEC-A Series Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi A1S63P Power Supply Unit – Obsolete MELSEC-A Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as input voltage range, output current ratings, and power consumption are model-specific. Contact DriveKNMS for verified datasheet documentation prior to installation.

Solving the Discontinued Hardware Crisis

Mitsubishi Electric officially discontinued the MELSEC-A Series (AnS family) and ceased production of associated modules including the A1S63P. Replacement parts are no longer available through standard distribution channels. For the thousands of facilities worldwide that continue to operate MELSEC-A based control systems — in industries including automotive manufacturing, food processing, water treatment, and chemical production — this creates a structural maintenance risk.

The A1S63P power supply unit is not interchangeable with modules from the MELSEC-Q or iQ-R Series without rack-level hardware changes and CPU reprogramming. A direct drop-in replacement from the same AnS generation is the only path that avoids engineering intervention. This is precisely why sourcing a verified A1S63P from secondary market inventory is the operationally sound decision for any facility that cannot absorb a multi-month migration project.

Facilities that have extended MELSEC-A system life by 5 to 10 years through strategic spare parts stockpiling consistently report a cost-per-year-of-operation that is a fraction of what a full migration would require. The A1S63P, as the power source for the entire I/O rack, is the highest-priority component in any MELSEC-A spare parts strategy.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality assurance process to all obsolete power supply units before dispatch review:

• Step 1 – Visual and Physical Inspection: Full external examination for casing damage, burn marks, pin corrosion, and label integrity. Units with compromised housings are rejected at intake.
• Step 2 – Electrolytic Capacitor Assessment: Power supply units are particularly vulnerable to capacitor aging and electrolyte degradation over time. Each unit undergoes capacitor ESR (Equivalent Series Resistance) measurement to identify aged or pre-failure components.
• Step 3 – Pin and Connector Integrity Check: Backplane connector pins are inspected under magnification for oxidation, mechanical deformation, and contact resistance anomalies.
• Step 4 – Firmware and Configuration Verification: Where applicable, firmware version is confirmed against known stable releases for the A1S63P to ensure compatibility with target rack configurations.
• Step 5 – Functional Load Test: The unit is powered under controlled conditions to verify stable output and correct protective circuit behavior before packaging.

Key Features for System Maintenance

Q: Is this compatible with MELSEC-Q Series bases?
A: No. The A1S63P is designed exclusively for AnS Series slim-type base units. It is not physically or electrically compatible with MELSEC-Q or iQ-R Series hardware.
