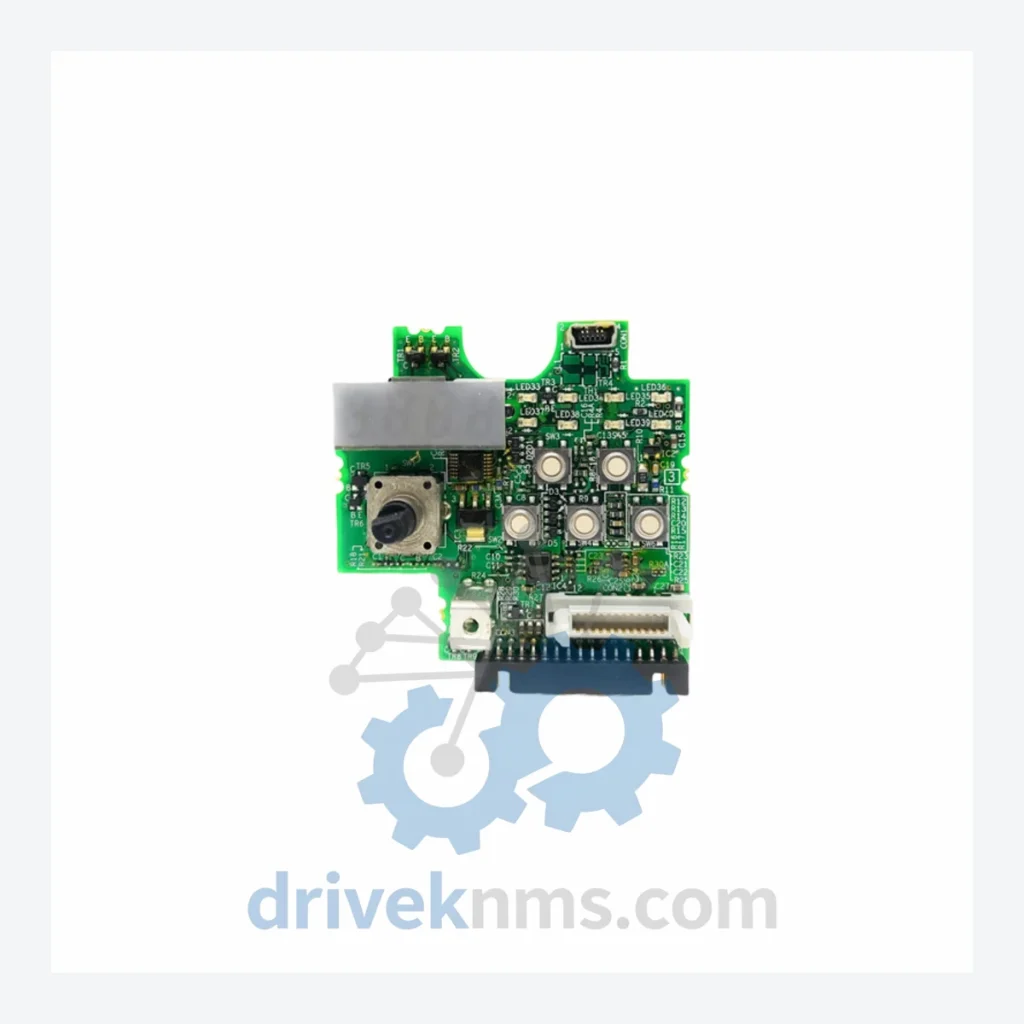

Mitsubishi A24MC Series Circuit Boards A24MC7.5B BC186A201G52 A24MC

Technical Dossier

Product Details And Specifications

Mitsubishi A24MC Series Technical Notes

The Evolution of A24MC Architecture

The A24MC designation refers to a family of printed circuit boards used within Mitsubishi's A-series and related inverter drive platforms. Early iterations of the A24MC board were designed for analog-based motor control regulation, providing current feedback, gate firing signal generation, and fault detection functions. As Mitsubishi Electric evolved its drive architecture through successive generations, the A24MC boards were revised to accommodate improved IGBT gate driver compatibility, enhanced EMI filtering, and tighter voltage regulation tolerances.

The board reference BC186A201G52 identifies a specific revision of the A24MC7.5B, where the alphanumeric suffix denotes the board's rated output class (7.5, corresponding to a 7.5kW or related power stage) and the revision level. Compatibility between A24MC board revisions is not always guaranteed; substitution requires verification of the drive chassis model, firmware revision, and power stage rating. In multi-drive installations, mismatched board revisions can cause asymmetric fault behavior. Engineers sourcing replacement A24MC boards must cross-reference the full part number including the BC-prefix assembly code.

The A24MC series has entered the mature-to-end-of-life phase of its product lifecycle. Mitsubishi Electric no longer lists these boards as active catalog items. Long-term maintenance support for installed base equipment depends entirely on aftermarket inventory, refurbished units, and specialist distributors with access to legacy Mitsubishi drive components.

A24MC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Mitsubishi A24MC series and associated drive control board families. Each entry reflects a distinct functional role within the drive system:

A24MC7.5B BC186A201G52: 7.5kW-class main control circuit board, current regulation and gate drive interface.
A24MC3.7B: 3.7kW-class control board variant, analog feedback and fault relay output.
A24MC5.5B: 5.5kW-class board, intermediate power stage regulation and overcurrent detection.
A24MC11B: 11kW-class control board, extended current sensing range and thermal protection logic.
A24MC15B: 15kW-class board, high-current gate firing circuit with enhanced noise immunity.
A24MC18.5B: 18.5kW-class variant, dual-channel feedback with expanded fault diagnostics.
A24MC22B: 22kW-class control board, used in medium-duty conveyor and pump drive applications.
A24MC30B: 30kW-class board, heavy-duty industrial drive regulation substrate.
BC186A201G51: Earlier revision of the A24MC7.5B assembly, functionally equivalent with minor component substitutions.
BC186A201G53: Later revision board, updated gate resistor values for improved IGBT compatibility.
BC186A201G55: High-reliability revision with conformal coating for humid or corrosive environments.
A24MC-PSU: Auxiliary power supply sub-board for A24MC chassis, +15V/−15V regulated rails.
A24MC-IO: Digital I/O interface board, terminal block expansion for external fault and run signals.
A24MC-COMM: Serial communication adapter board, RS-485 interface for SCADA integration.
A24MC-GDB: Gate driver buffer board, isolates control signals from high-voltage IGBT module.
A24MC-FLT: Fault logging and display interface board, seven-segment fault code output.
A24MC-TH: Thermistor input conditioning board, motor thermal protection signal processing.

Sourcing Hard-to-Find & Obsolete A24MC Parts

All A24MC units in DriveKNMS inventory are cataloged by full part number including BC-prefix revision code, ensuring customers receive the correct board revision for their specific drive chassis. For plant operators managing aging Mitsubishi drive installations, DriveKNMS offers consignment evaluation of surplus A24MC boards and can provide cross-reference analysis between board revisions to support maintenance planning. Lifecycle extension contracts covering multi-year spare parts reservation are available on request.
