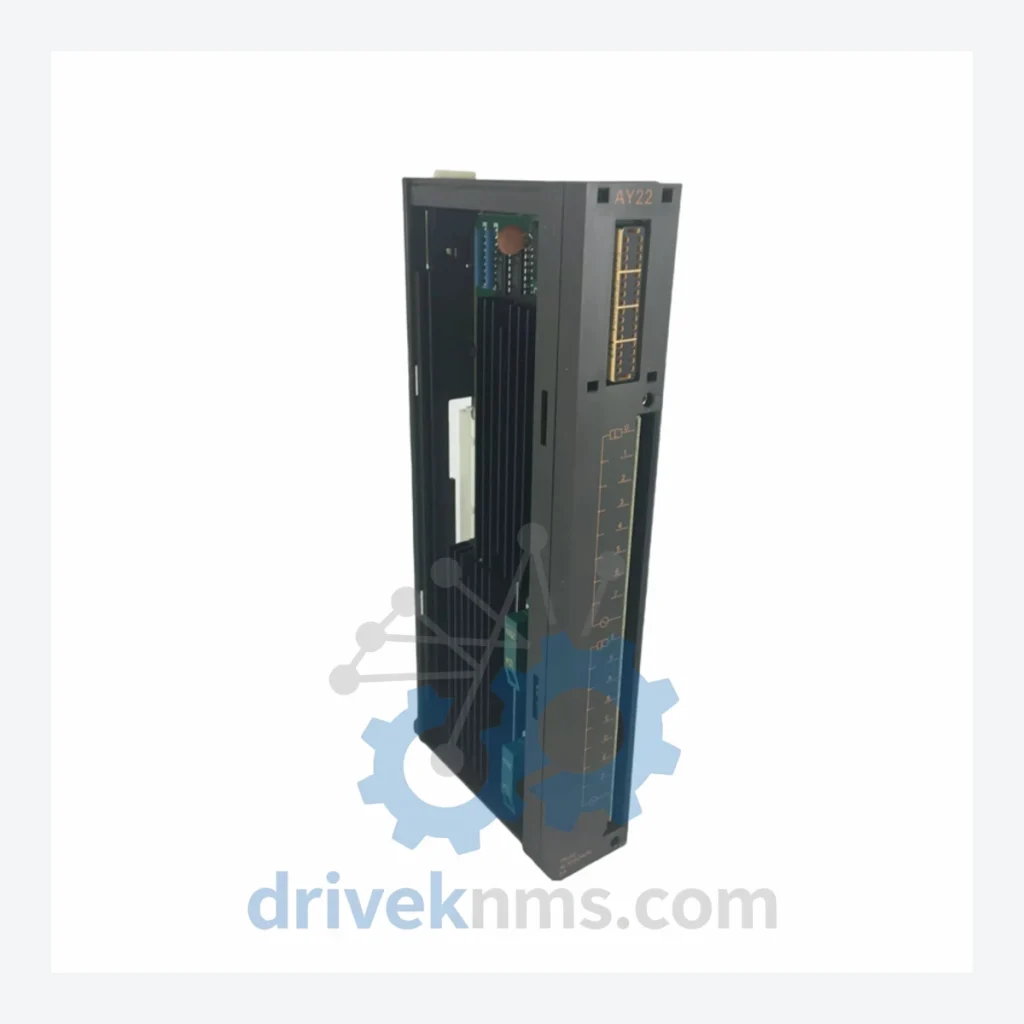

Mitsubishi AY22 Output Local Unit Module – Obsolete MELSEC Spare Part

When a Mitsubishi AY22 output module fails in a running production line, the consequences extend far beyond the cost of the part itself. A full control system migration — from engineering assessment and new hardware procurement to software re-commissioning and operator retraining — routinely runs into the hundreds of thousands of dollars, and in complex process industries, well past seven figures. The AY22 is a discontinued component of the Mitsubishi MELSEC series, and sourcing a verified replacement unit is no longer a matter of placing a standard purchase order. DriveKNMS maintains physical stock of hard-to-find legacy modules specifically to protect manufacturers from this forced-upgrade scenario.

Technical Specifications

Note: Electrical parameters such as output current rating, voltage range, and point count are not listed here to avoid inaccuracy. Please contact us with your exact application requirements for verified specification confirmation.

Solving the Discontinued Hardware Crisis

The Mitsubishi MELSEC A-Series and AnS-Series platforms were deployed extensively throughout the 1980s and 1990s in automotive assembly, food processing, chemical manufacturing, and utilities. Many of these systems remain in active production service today — not because operators are unaware of their age, but because the cost and risk of replacement outweigh the cost of maintenance. The AY22 output module sits at a critical node in these architectures, handling discrete output signals to field devices. There is no firmware-compatible drop-in replacement available from the current Mitsubishi iQ-R or iQ-F product lines without a full system re-engineering effort. For plant managers operating under capital expenditure constraints, sourcing a verified AY22 unit is the only path to restoring output control without triggering a system-wide overhaul. Every month a legacy line continues running on maintained hardware rather than undergoing forced migration represents a direct preservation of capital investment.

How to Extend Automation Asset Life by 5–10 Years Through Critical Spare Parts

Factory managers facing system retirement pressure from corporate or OEM end-of-support notices have a documented alternative: structured spare parts inventory management. The following strategy has been applied successfully across legacy MELSEC, Siemens S5, Allen-Bradley PLC-5, and Honeywell TDC3000 installations to defer costly system replacements by a decade or more.

1. Failure Mode Mapping: Identify the two or three modules in your control architecture that, if failed, would halt production entirely. The AY22 output module is typically one of these nodes. Prioritize stocking these first.

2. Minimum Viable Spare Inventory: For a module with no active OEM supply chain, a minimum of two verified spare units per production line is the accepted industry standard. One for immediate swap, one as a secondary buffer while sourcing a replacement for the consumed unit.

3. Controlled Storage: Legacy modules stored in climate-controlled environments (15–25°C, 45–75% RH, away from electromagnetic interference) retain functional integrity for 10–15 years beyond their production date when properly handled.

4. Scheduled Preventive Inspection: Annual bench-testing of spare modules — verifying output signal integrity and checking for electrolytic capacitor degradation — prevents the scenario where a stored spare is itself non-functional at the moment of need.

5. Supplier Qualification: Not all secondary-market sources apply consistent quality controls. Establish a relationship with a supplier who can provide documented inspection records and offers a defined warranty period on obsolete stock.

This approach converts an unplanned capital expenditure event into a predictable, low-cost maintenance line item. The cost of two verified AY22 spare units is a fraction of one day of unplanned production downtime.

Condition & Reliability Assurance

All AY22 units supplied by DriveKNMS pass a structured 5-step inspection protocol before shipment:

Step 1 – Visual and Mechanical Inspection: Full examination of the module housing, connector pins, and PCB surface for physical damage, corrosion, or contamination. Units with pin oxidation are subjected to controlled cleaning and re-inspection.

Step 2 – Electrolytic Capacitor Assessment: Legacy modules of this generation are susceptible to capacitor aging. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.

Step 3 – Firmware and Label Verification: Where applicable, firmware version markings and OEM labels are cross-referenced against known production records to confirm authenticity and revision compatibility.

Step 4 – Functional Output Signal Test: Output channels are tested under controlled bench conditions to verify signal switching integrity across all output points.

Step 5 – Final Documentation and Packaging: Each unit is documented with inspection date, condition grade, and technician sign-off. Anti-static packaging is applied prior to shipment.

Key Features for System Maintenance

The AY22 is a direct physical and electrical replacement for the original module position in compatible MELSEC A-Series and AnS-Series racks. Installation does not require PLC program modification, re-addressing, or engineering intervention beyond the physical swap procedure. This drop-in replacement characteristic is the defining operational advantage of sourcing an original-series module versus attempting a cross-series substitution. There are no driver updates, no I/O mapping changes, and no risk of introducing software incompatibilities into a stable, validated control program. For maintenance teams operating without dedicated automation engineering support, this is a critical distinction — the repair can be executed by a qualified electrician following the original Mitsubishi hardware documentation, without specialist PLC programming involvement.

FAQ

Q: What warranty applies to an obsolete module like the AY22?
A: DriveKNMS provides a 90-day functional warranty on all inspected and tested units. New Old Stock units carry a 180-day warranty. Warranty covers functional failure under normal operating conditions and excludes physical damage caused after installation.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented industrial surplus channels. Physical markings, PCB construction, and component profiles are verified against known-authentic reference units. We do not source from unverified grey-market aggregators.

Q: Should I buy more than one unit?
A: For any production-critical application, yes. Global stock of discontinued MELSEC A-Series modules is finite and diminishing. Prices trend upward as availability contracts. Purchasing two to three units now, while verified stock exists, is the lower-cost decision when evaluated against future sourcing risk and downtime exposure.

Q: Can you source other MELSEC A-Series or AnS-Series modules?
A: Yes. DriveKNMS specializes in legacy Mitsubishi MELSEC components across the A-Series, AnS-Series, and related platforms. Submit your full BOM or part list for a consolidated availability check.
