Mitsubishi BC186A032G54 A24PW7.5D Circuit Board – Obsolete MELSEC Legacy Spare Part

Technical Dossier

Product Details And Specifications

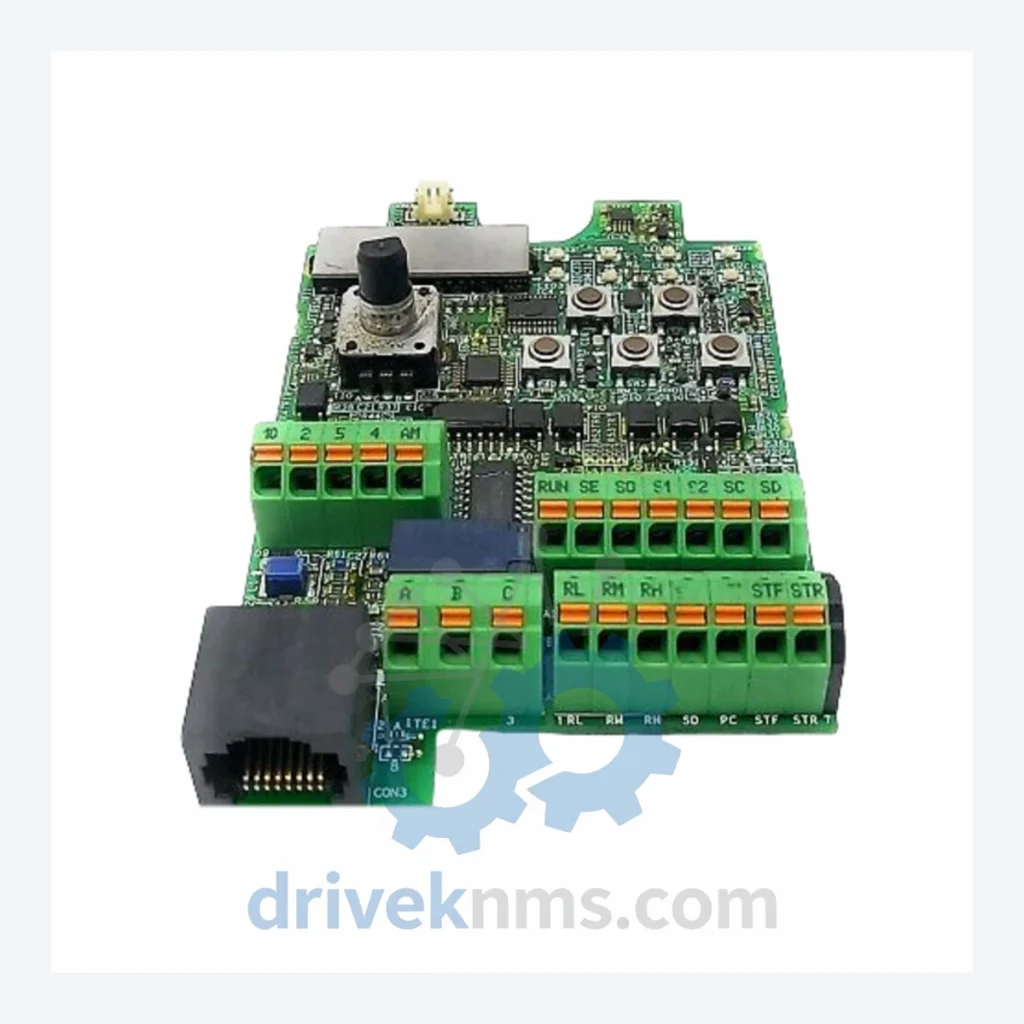

Mitsubishi BC186A032G54 A24PW7.5D Circuit Board – Obsolete MELSEC Spare Part

DriveKNMS maintains a dedicated inventory of discontinued Mitsubishi industrial boards for facilities that cannot afford unplanned shutdowns. This is not a commodity listing. It is an asset protection decision.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified for this specific board revision. Specifications above are drawn from part number structure and known MELSEC platform conventions. Do not substitute based on visual similarity alone — confirm compatibility with your system documentation before installation.

Solving the Discontinued Hardware Crisis

The Mitsubishi MELSEC A-Series and related legacy platforms were workhorses of industrial automation throughout the 1990s and 2000s. Many of these systems remain in active service today — not because operators are unaware of their age, but because the cost and disruption of replacement outweigh the risk of continued operation. That calculation holds until a critical board fails.

The BC186A032G54 A24PW7.5D sits within the power distribution and control circuitry of these platforms. When this board degrades or fails, the affected system does not simply slow down — it stops. There is no software patch, no firmware workaround. The physical board must be replaced with a compatible unit.

How to extend your automation asset life by 5–10 years without a full system overhaul:

Condition & Reliability Assurance

Sourcing a discontinued board from the open market carries real risk. DriveKNMS applies a 5-step inspection protocol to every legacy board before it leaves our facility:

1. Electrolytic Capacitor Assessment: All electrolytic capacitors are inspected for bulging, leakage, and ESR deviation. Aged capacitors are the leading cause of latent failure in boards of this generation. Units with suspect capacitors are flagged and not shipped as serviceable.
2. Firmware & Revision Verification: Where applicable, firmware version and board revision markings are cross-referenced against known compatible revisions for the target platform. Mismatched revisions are disclosed before sale.
3. Pin and Connector Corrosion Inspection: All edge connectors and pin headers are inspected under magnification for oxidation, pitting, and mechanical damage. Affected contacts are cleaned using appropriate non-destructive methods or the unit is downgraded.
4. Functional Power-On Test: Where test fixtures are available for the platform, boards undergo a controlled power-on sequence to verify basic operational response.
5. Final Documentation and Packaging: Each unit is documented with inspection date, technician ID, and condition grade before being sealed in anti-static packaging for shipment.

Key Features for System Maintenance

• Drop-in replacement: The BC186A032G54 A24PW7.5D is a direct form-fit-function replacement for the original board position. No mechanical modification to the rack or chassis is required.
• No reprogramming required: System logic, parameters, and I/O configuration reside in the CPU and memory modules — not on this board. A board swap does not require re-engineering of your control program.
• Avoids engineering reconstruction costs: A forced platform migration requires new hardware, new software licensing, system integration engineering, FAT/SAT testing, and operator retraining. Sourcing a spare board eliminates all of those line items for the current maintenance cycle.
• Preserves validated process: Facilities operating under regulatory validation (pharmaceutical, food processing, chemical) face re-validation costs upon system changes. Maintaining the existing hardware preserves the validated state of the process.

Should I buy more than one unit?
For any facility running a single MELSEC line dependent on this board, a minimum of two units is the responsible position — one for immediate installation, one as a cold spare. For multi-line facilities, a proportional reserve is advisable. The cost of holding spare boards is fixed and predictable. The cost of an unplanned line stoppage is neither.

How should spare boards be stored?
Store in original anti-static packaging in a climate-controlled environment: temperature 15–30°C, relative humidity below 60%, away from direct sunlight and magnetic fields. Inspect annually for any signs of packaging degradation.
