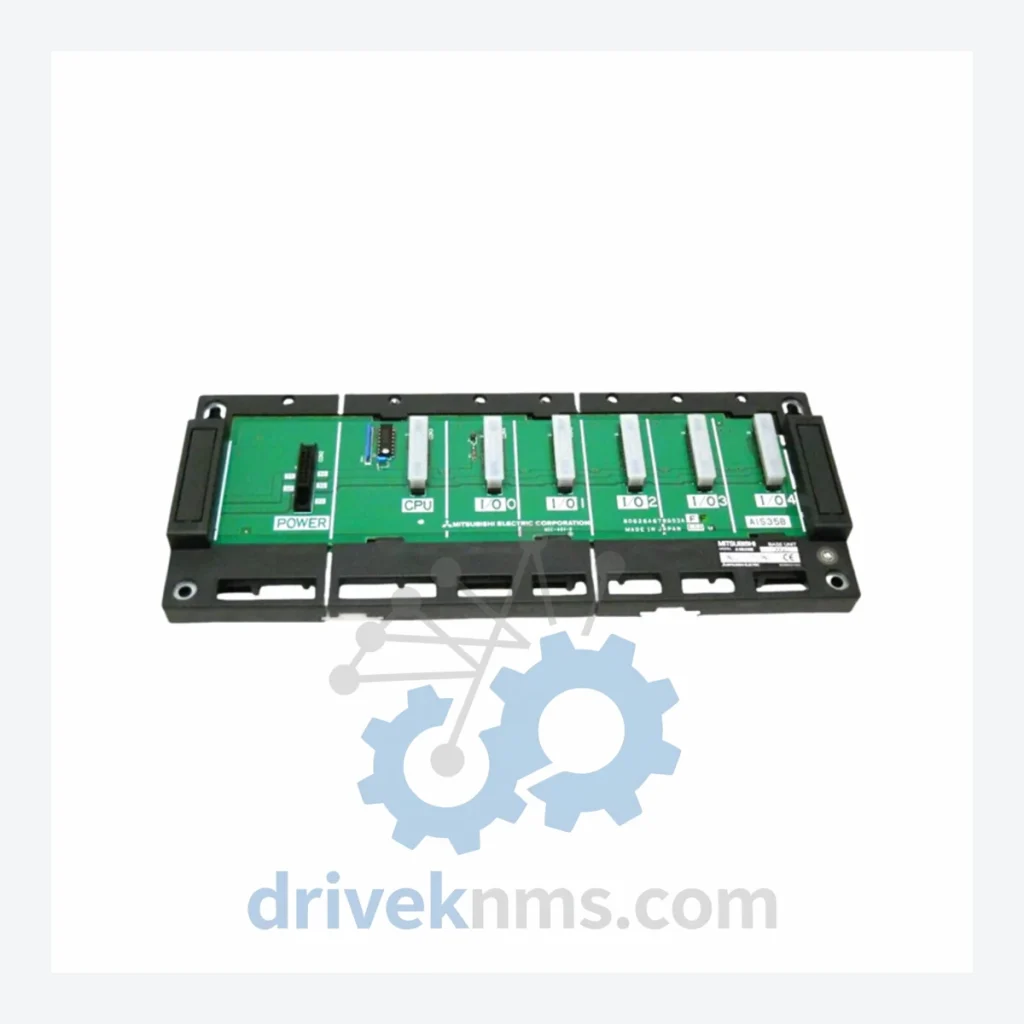

Mitsubishi BD625A989G52 A68B Backplane Module – Obsolete MELSEC Series Spare Part

When a backplane module fails in a legacy Mitsubishi MELSEC-based control system, the consequences extend far beyond a single component replacement. A forced migration to a current-generation PLC platform — including new hardware, re-engineering of ladder logic, I/O rewiring, operator retraining, and production downtime — routinely costs manufacturing facilities between $500,000 and $3,000,000 USD per line. The BD625A989G52 A68B is a discontinued backplane module that remains the structural backbone of multi-slot MELSEC rack configurations. DriveKNMS maintains verified physical stock of this unit. For facilities still operating on this architecture, sourcing a confirmed spare is not a procurement exercise — it is an asset protection decision.

Technical Specifications

Note: Electrical parameters specific to this revision are not publicly documented by Mitsubishi Electric. DriveKNMS does not publish unverified specifications. Contact us directly for datasheet support.

Solving the Discontinued Hardware Crisis

The Mitsubishi MELSEC A-Series platform was deployed extensively across automotive stamping lines, food processing facilities, chemical batch systems, and utility substations throughout the 1990s and 2000s. The backplane module is not a peripheral — it is the physical and electrical foundation that connects every I/O module, CPU, and power supply in the rack. Without a functional backplane, the entire rack is inoperable.

Mitsubishi Electric officially discontinued the A-Series product line, and OEM replacement stock has been exhausted through normal distribution channels for years. Facilities that have not pre-positioned spare backplanes face a binary choice upon failure: source from the secondary market immediately, or commit to a full system migration under emergency conditions — the worst possible context for a capital project of that scale.

The BD625A989G52 A68B is not interchangeable with current MELSEC iQ-R or Q-Series base units without hardware and software re-engineering. For plants where the A-Series architecture controls critical processes, maintaining at least one verified spare backplane is the minimum responsible posture. DriveKNMS specializes in locating and qualifying exactly this category of component.

How to Extend Expensive Automation Assets by 5–10 Years Through Strategic Spare Parts Management

Plant managers facing pressure to retire legacy Mitsubishi MELSEC systems often underestimate the true cost of migration versus the cost of structured maintenance. The following approach has allowed facilities to defer multi-million dollar capital projects by a decade or more:

1. Conduct a single-point-of-failure audit. Identify every component in your MELSEC rack for which no spare exists on-site and no current-generation substitute is available. The backplane is typically the highest-risk item because it is the least frequently replaced and therefore the least likely to be stocked.

2. Establish a minimum spare holding policy. For discontinued backplanes and CPU modules, a minimum of one verified spare per production line is the industry baseline. For high-criticality lines, two units is the defensible standard.

3. Source before failure, not after. Secondary market availability for A-Series components contracts every year. Units that are available today at a known price may not be available in 18 months at any price. Procurement decisions made under emergency conditions — with a line down — result in inflated costs and unverified sourcing.

4. Implement a scheduled inspection cycle. Even stored spare modules degrade. Electrolytic capacitors on backplane power distribution circuits have a finite shelf life. A qualified technician should inspect stored spares every 24–36 months.

5. Document firmware and configuration baselines. Before any maintenance event, ensure that CPU firmware versions and I/O configuration files are archived. This eliminates the risk of a replacement backplane triggering a firmware compatibility issue during a production restart.

This approach does not require capital expenditure at the scale of a migration. It requires disciplined procurement and a supply chain partner with verified access to discontinued Mitsubishi components.

Condition & Reliability Assurance

DriveKNMS applies a 5-step qualification process to all discontinued modules before shipment:

Step 1 – Visual and Mechanical Inspection: Full examination of the PCB surface, connector pins, and rack mounting hardware. Pin corrosion, oxidation on edge connectors, and physical damage to the backplane bus are documented and assessed.

Step 2 – Electrolytic Capacitor Assessment: Backplane power distribution circuits rely on electrolytic capacitors that degrade with age regardless of operating hours. Units are evaluated for capacitor bulging, leakage, and ESR deviation. Where degradation is confirmed, capacitors are replaced with specification-matched components.

Step 3 – Firmware and Label Verification: The revision suffix (A68B) is cross-referenced against known hardware revision records. Counterfeit and misrepresented revision units are a documented risk in the secondary market for Mitsubishi A-Series components. DriveKNMS verifies physical markings against procurement documentation.

Step 4 – Functional Bench Test: Where test fixtures are available for the specific backplane configuration, units are powered and tested for bus integrity and slot communication.

Step 5 – Packaging and ESD Protection: All units are shipped in anti-static packaging with desiccant. Long-term storage units are vacuum-sealed.

Key Features for System Maintenance

The BD625A989G52 A68B is a direct physical replacement for the original backplane in compatible MELSEC A-Series rack configurations. Key operational advantages for maintenance teams:

Drop-in replacement: The module installs into the existing rack mounting position without mechanical modification. No new DIN rail, no enclosure rework.

No CPU reprogramming required: A backplane replacement does not alter the CPU program or I/O mapping. Upon reinstallation of the CPU and I/O modules, the system resumes operation from the existing program. This eliminates the need for a controls engineer to be present for the replacement itself.

No engineering reconstruction costs: Unlike a platform migration, a like-for-like backplane replacement does not trigger a re-validation cycle, a safety review, or a change management process in most regulated facilities. The maintenance event is classified as a component replacement, not a system modification.

Immediate production recovery: With a pre-positioned spare on-site, mean time to repair (MTTR) for a backplane failure is measured in hours, not weeks. The alternative — sourcing under emergency conditions — routinely extends downtime to 2–6 weeks when secondary market stock must be located, qualified, and shipped internationally.

FAQ

Q: What warranty applies to a discontinued module like the BD625A989G52 A68B?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers functional failure under normal operating conditions. It does not cover damage resulting from installation error or incompatible system configuration.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: DriveKNMS provides procurement documentation tracing the unit's sourcing chain. Physical markings, PCB revision codes, and label formats are verified against known-authentic reference units. We do not source from unverified brokers.

Q: Should I buy more than one unit?
A: For any production line where this backplane is the sole structural component of the control rack, purchasing a minimum of one additional spare at the time of initial procurement is the operationally sound decision. Secondary market availability for this specific revision is not guaranteed beyond the current stock position. Price and availability will not improve over time.

Q: Can this backplane be used with MELSEC Q-Series or iQ-R modules?
A: No. The A-Series backplane is not electrically or mechanically compatible with Q-Series or iQ-R I/O modules. It is intended exclusively for use within A-Series rack configurations.

Q: What is the lead time?
A: In-stock units ship within 3–5 business days. Contact us to confirm current stock status before placing an order.
