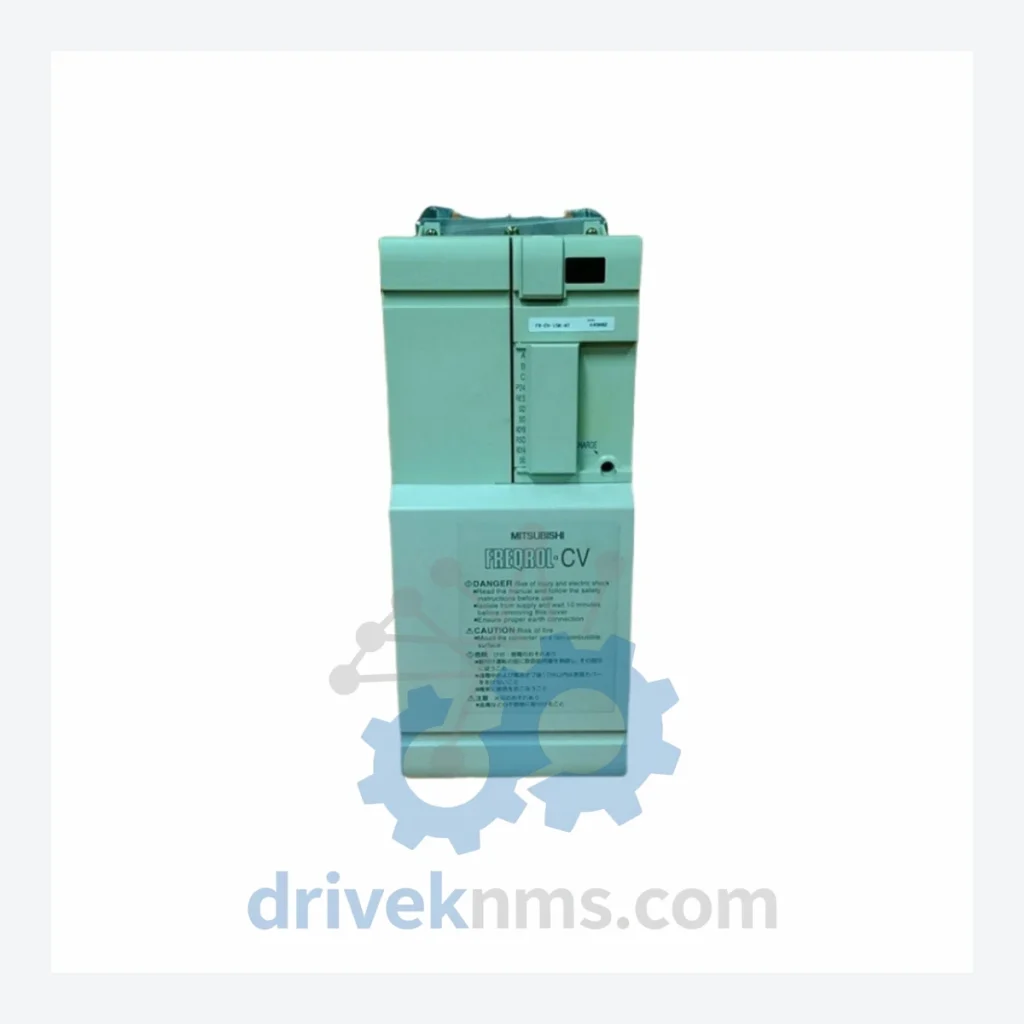

Mitsubishi Electric FR-CV-15K Regenerative Converter – Obsolete FR Series Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi Electric FR-CV-15K Regenerative Converter – Obsolete FR Series Spare Part

When a regenerative converter unit like the FR-CV-15K fails in a production environment, the consequences extend far beyond a single component replacement. The FR-CV-15K is a discontinued power conversion module from Mitsubishi Electric's FR Series drive system — a platform that remains deeply embedded in manufacturing lines, crane systems, elevator drives, and heavy industrial machinery built between the late 1990s and early 2010s. Replacing this unit with a modern equivalent is not a matter of swapping hardware. It requires drive system re-engineering, PLC parameter reconfiguration, cabinet redesign, and in many cases, a full production line shutdown measured in weeks, not days. The capital expenditure for such an upgrade routinely reaches six to seven figures. DriveKNMS maintains verified stock of the FR-CV-15K specifically to prevent that outcome. This is not a commodity listing — it is an asset protection decision.

Technical Specifications

Note: Electrical parameters such as input voltage range, rated current, and switching frequency are not published here to prevent misapplication. Please contact our technical team with your full system nameplate data before ordering. Accuracy in obsolete part sourcing is a safety matter.

Solving the Discontinued Hardware Crisis

The FR-CV-15K was designed as the regenerative front-end for Mitsubishi Electric's FREQROL FR Series variable frequency drive systems. Its function — returning braking energy to the supply grid rather than dissipating it as heat — made it a preferred choice for high-cycle, high-inertia loads: overhead cranes, winding machines, and vertical transport systems. These applications are still running in factories across Asia, Europe, and the Americas. The drives themselves often remain fully functional. It is the converter unit that fails first, typically due to capacitor degradation, IGBT fatigue, or control board corrosion after 15–20 years of continuous operation.

Mitsubishi Electric officially discontinued the FR-CV series as part of its transition to the FR-XC and FR-HC2 converter platforms. No direct drop-in replacement exists within the current product catalog. Facilities that have not secured spare FR-CV-15K units face a binary choice: source the obsolete part, or commit to a full drive system replacement project. The latter option, when accounting for engineering hours, downtime, recommissioning, and operator retraining, rarely costs less than USD 150,000 for a single drive station — and often far more in a multi-axis system.

Extending the operational life of an FR Series installation by 5 to 10 years through strategic spare parts procurement is not a compromise. It is a defensible capital allocation decision. The FR-CV-15K, held as a cold spare, converts a potential six-figure emergency into a scheduled maintenance event.

How to Extend Your Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Managers

For facilities operating legacy Mitsubishi Electric FR Series drive systems, the following framework has been applied successfully in steel mills, paper plants, and port crane operations to defer system retirement without sacrificing reliability:

• Identify single-point-of-failure components first. The regenerative converter unit is typically the highest-risk module in a regenerative drive stack. It handles the most thermal and electrical stress. Holding one verified spare FR-CV-15K eliminates the most probable cause of unplanned downtime.
• Audit capacitor age, not just hours. Electrolytic capacitors in converter units degrade on a calendar basis regardless of operating hours. Units manufactured before 2010 should be treated as end-of-life on the capacitor bank, even if the unit appears functional. A proactive replacement or refurbishment cycle prevents in-service failure.
• Maintain firmware version records. FR Series converter units contain firmware that must match the connected inverter unit. Before installing any spare, verify firmware compatibility. DriveKNMS can assist with version identification.
• Negotiate a phased replacement timeline. Rather than a forced emergency upgrade, use the availability of a spare FR-CV-15K to negotiate a planned system modernization on your terms — typically 3 to 5 years out — when budget cycles align.
• Consolidate spare parts procurement now. Global availability of FR-CV-15K units is declining each year as existing stocks are consumed and no new production occurs. The cost of sourcing this unit will increase. Procurement decisions made today carry a lower price and lower risk than those made under emergency conditions.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all obsolete converter units before shipment. This protocol was developed specifically for legacy industrial components where no new-production benchmark exists:

1. Visual and mechanical inspection: Full external examination for physical damage, corrosion on terminal blocks, and enclosure integrity. Units with compromised housings are rejected at this stage.
2. Electrolytic capacitor assessment: Capacitor banks are tested for capacitance retention and ESR (equivalent series resistance). Aged capacitors that fall outside acceptable tolerance are flagged and, where applicable, replaced with rated equivalents.
3. Firmware and label verification: The unit's firmware version and production date code are recorded and cross-referenced against known FR-CV-15K revision history to confirm authenticity and compatibility.
4. Pin and connector inspection: All control terminals and power connectors are examined under magnification for oxidation, fretting corrosion, and mechanical deformation. Affected contacts are treated or the unit is downgraded.
5. Functional power-up test (where infrastructure permits): Units are energized under controlled conditions to verify basic control board response and gate drive signal integrity prior to packaging.

Units that pass all five stages are classified as Grade A Refurbished or New Old Stock (NOS) depending on their origin. Classification is documented and included with shipment.

Key Features for System Maintenance

• Drop-in replacement: The FR-CV-15K installs directly into existing FR Series drive cabinets without mechanical modification. No new mounting hardware, no cabinet redesign.
• No reprogramming required: Parameter sets stored in the connected FR Series inverter unit are unaffected by converter unit replacement. Commissioning time is measured in hours, not days.
• Avoids engineering reconstruction costs: Substituting a modern converter platform requires full system re-engineering. The FR-CV-15K eliminates that cost entirely for facilities not yet ready to modernize.
• Preserves existing safety certifications: Replacing a like-for-like component within a certified drive system typically does not trigger re-certification requirements. Introducing a new platform does. This distinction carries significant compliance implications in regulated industries.

FAQ

Q: What warranty applies to an obsolete part like the FR-CV-15K?
A: DriveKNMS provides a 90-day warranty on all refurbished units covering functional failure under normal operating conditions. New Old Stock (NOS) units carry a 180-day warranty. Warranty terms are confirmed in writing prior to shipment.

Q: How do I know the unit is genuine and not a counterfeit?
A: All FR-CV-15K units sourced by DriveKNMS are verified against Mitsubishi Electric's known production markings, date codes, and label formats. Our QA process includes firmware version logging, which is a reliable authenticity indicator for this product family. Documentation is provided upon request.

Q: Should I buy more than one unit as a long-term reserve?
A: For facilities operating multiple FR Series drive stations, or for critical single-line processes where downtime cost exceeds USD 10,000 per hour, holding two units is a standard risk management practice. Global stock of the FR-CV-15K is finite and diminishing. Procurement of a second unit now is materially cheaper than emergency sourcing 18 months from now.

Q: Can DriveKNMS source other FR Series components?
A: Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across the Mitsubishi Electric FR Series, as well as other legacy drive and control platforms. Contact us with your full part number and quantity requirement.
