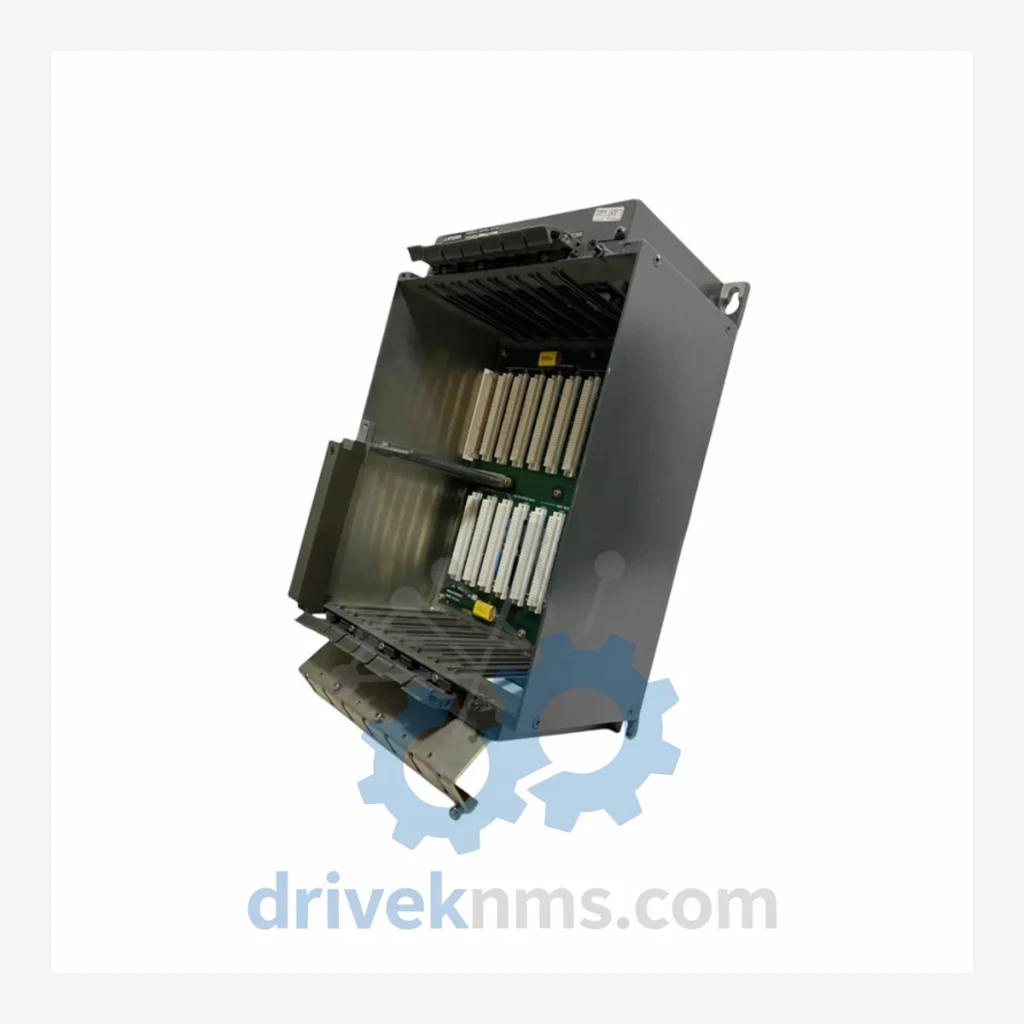

Mitsubishi FCA320HW MC021 CNC Controller – Obsolete MELDAS Series Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi FCA320HW MC021 CNC Controller – Obsolete MELDAS Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MELDAS FCA320 platform was deployed extensively in precision machining centers and turning centers throughout the 1990s and early 2000s. Many of these machines remain mechanically sound — spindles, ballscrews, and guideways still within tolerance — but the control electronics have become the single point of failure that threatens the entire asset.

Mitsubishi Electric has long since ceased production and technical support for the FCA320 series. Authorized service channels cannot supply the FCA320HW MC021. When this module fails, plant engineers face a binary choice: locate a genuine replacement unit from the secondary market, or commit to a full CNC retrofit. The retrofit path is not simply expensive — it disrupts production scheduling, requires re-validation of machining programs, and often demands mechanical modifications to accommodate modern servo interfaces.

How to extend your CNC asset life by 5–10 years with targeted spare parts strategy:

Plants that apply this strategy consistently report CNC asset service lives of 15–20 years from original installation, against an industry average closer to 10–12 years for operations that do not manage spare parts proactively.

Condition & Reliability Assurance

Every FCA320HW MC021 unit processed by DriveKNMS passes a structured 5-step quality inspection before it is offered for sale:

1. Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in CNC controller boards of this era. Each board is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
2. Firmware Version Verification: The installed firmware version is documented and cross-referenced against known stable releases for the FCA320 platform. Units with corrupted or unverifiable firmware are not offered for sale.
3. Pin and Connector Corrosion Inspection: All edge connectors, ribbon cable interfaces, and backplane pins are inspected under magnification for oxidation, corrosion, and mechanical damage. Affected contacts are cleaned or the unit is rejected.
4. Functional Power-On Test: Where test fixtures are available, units are powered and observed for normal initialization behavior, fault code output, and communication response.
5. Visual and Physical Integrity Check: PCB traces, solder joints, and mechanical mounting points are inspected for damage consistent with electrical overstress, vibration fatigue, or improper handling.

Key Features for System Maintenance

How do I know the unit is genuine and not a counterfeit?
All units are sourced from documented industrial surplus channels. Physical markings, board revision numbers, and component dates are inspected for consistency. We do not source from unverified brokers. Full provenance documentation is available on request.

Can you supply other MELDAS FCA320 series components?
Yes. DriveKNMS maintains inventory across multiple MELDAS-era modules. Contact us with your full bill of materials for a consolidated quotation.
