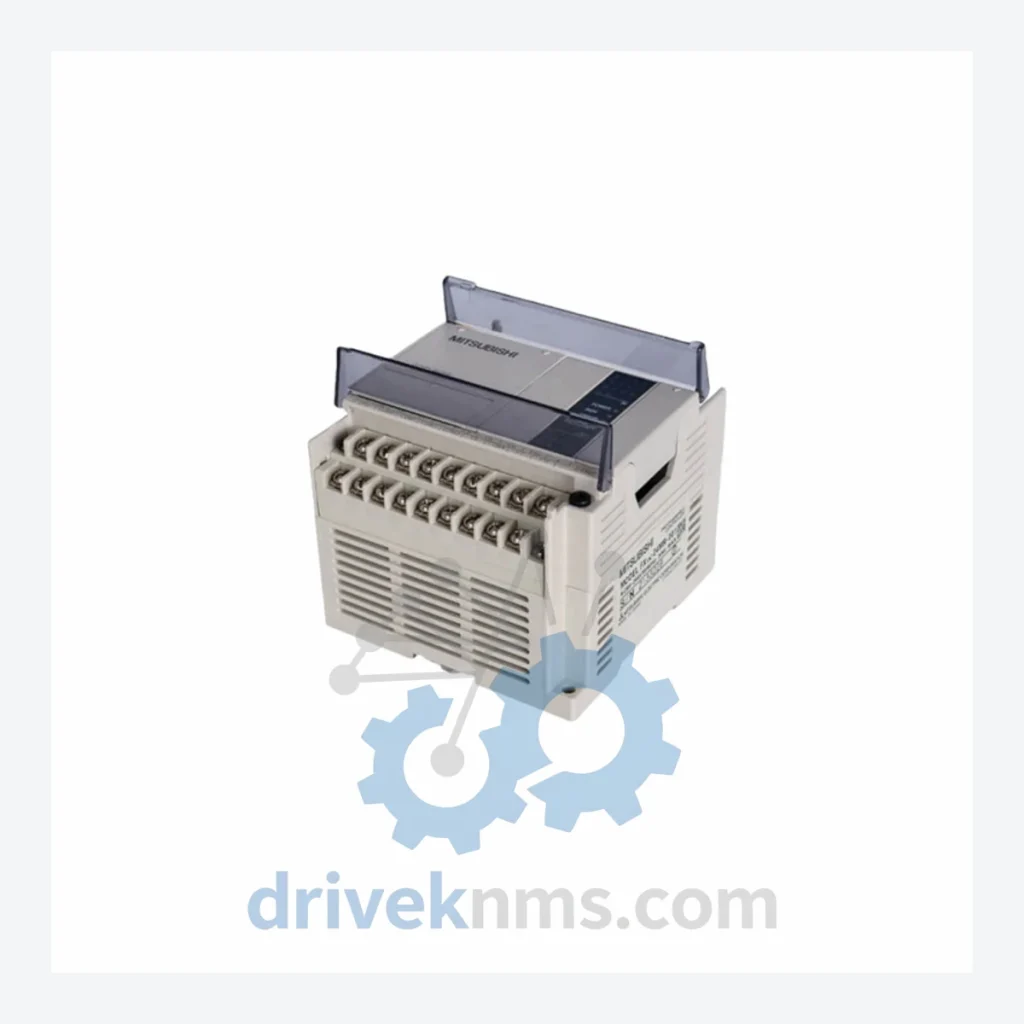

Mitsubishi FX1N-40MR-001 Programmable Logic Controller – Obsolete MELSEC FX1N Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi FX1N-40MR-001 Programmable Logic Controller – Obsolete MELSEC FX1N Spare Part

The Mitsubishi FX1N-40MR-001 has been officially discontinued. For the thousands of production lines still running on MELSEC FX1N architecture, this is not a catalog footnote — it is a critical operational risk. A single failed FX1N-40MR-001 unit, with no replacement on hand, can force a facility into an unplanned shutdown. The cost of halting a mid-scale automated production line for even 72 hours — factoring in lost throughput, emergency engineering labor, and expedited freight — routinely exceeds six figures. The cost of migrating an entire legacy FX1N control system to a current-generation PLC platform, including re-engineering, re-programming, re-commissioning, and operator retraining, frequently runs into the millions.

DriveKNMS maintains verified stock of the FX1N-40MR-001. This is not a speculative listing. If you are reading this, the unit is available for immediate quotation.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Solving the Discontinued Hardware Crisis

The FX1N-40MR-001 was the workhorse of Mitsubishi’s compact PLC lineup for over a decade. It was deployed extensively in food and beverage packaging lines, textile machinery, material handling conveyors, and light assembly automation across Asia, Europe, and the Americas. Many of these installations were engineered with 20-year operational horizons in mind — horizons that now extend well beyond the availability of new OEM hardware.

The core problem facing plant managers today is not the age of the equipment. It is the asymmetry between the cost of maintaining a proven, stable control system and the cost of replacing it. An FX1N-based line that has run reliably for 15 years carries embedded institutional knowledge: tuned parameters, operator familiarity, validated process logic stored in ladder diagram programs that may no longer have a living author. Replacing that system means not just buying new hardware — it means rebuilding that knowledge from scratch, at full engineering rates, with full production risk during commissioning.

Maintaining a strategic inventory of FX1N-40MR-001 units is the rational alternative. A facility that holds two to three verified spare units can absorb any single-point hardware failure without production interruption, and can defer a full system migration until it is planned, budgeted, and executed on the facility’s own schedule — not under emergency conditions.

For plant managers facing pressure from corporate asset teams to justify continued operation of legacy systems: the math is straightforward. The cost of three FX1N-40MR-001 spare units is a fraction of one day of unplanned downtime on a mid-capacity production line. The cost of a full FX1N-to-FX5U migration, including engineering, I/O rewiring, HMI updates, and validation, is measured in months and hundreds of thousands of dollars. Spare parts are not a maintenance expense. They are capital protection.

Condition & Reliability Assurance

Every FX1N-40MR-001 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale. This protocol is designed specifically for the failure modes common to discontinued industrial hardware that has been in storage or field service.

Step 1 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mechanism in legacy PLCs. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with matched-specification replacements or rejected from inventory.

Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility requirements for FX1N expansion modules and GOT HMI panels. Units with incompatible or corrupted firmware are flagged and handled separately.

Step 3 – Terminal and Pin Corrosion Inspection: All I/O terminals, power terminals, and communication port pins are inspected under magnification for oxidation, corrosion, and mechanical damage. Affected contacts are cleaned and treated; units with structural terminal damage are rejected.

Step 4 – Functional Power-On Test: Each unit is powered and subjected to a functional I/O verification cycle. Relay output operation, input response, and communication port integrity are confirmed.

Step 5 – Documentation and Traceability: Inspection results are recorded. Each unit shipped is accompanied by a condition report. We do not ship units that have not completed all five steps.

Key Features for System Maintenance

The FX1N-40MR-001 is a direct, drop-in replacement for any existing FX1N-40MR-001 installation. No hardware modification is required. No re-engineering of the control panel is necessary. The replacement unit accepts the existing ladder diagram program via standard GX Developer or GX Works2 upload — the process takes minutes, not days.

This matters because the alternative — substituting a different PLC model, even within the MELSEC family — typically requires I/O address remapping, communication parameter reconfiguration, and in many cases, HMI screen updates. Each of those steps introduces engineering cost and commissioning risk. A like-for-like FX1N-40MR-001 replacement eliminates all of that. The line goes back into production. The migration project stays on the capital plan where it belongs.

For facilities running multiple FX1N-40MR-001 units across different lines or sites, DriveKNMS can discuss volume availability and long-term supply agreements. Holding a pre-qualified, inspected spare pool is a standard practice in asset-intensive industries for exactly this reason.

FAQ

Q: What warranty applies to a discontinued part like the FX1N-40MR-001?
A: DriveKNMS provides a 90-day functional warranty on all units that have completed our 5-step inspection protocol. The warranty covers functional failure under normal operating conditions. Extended warranty arrangements are available for volume orders — contact us to discuss.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are inspected for authenticity as part of our intake process, including label verification, PCB markings, and component-level checks consistent with known genuine FX1N-40MR-001 production runs. We do not source from unverified channels. If you have specific authentication requirements, contact us before purchase.

Q: Should I buy more than one unit?
A: For any facility with more than one FX1N-40MR-001 in service, holding at least one verified spare is a minimum prudent position. For facilities where this controller is on a critical path — meaning its failure would halt production — two spares is the standard recommendation. Availability of discontinued parts is not guaranteed to improve over time. It moves in one direction.

Q: Can you source additional units if I need more than you currently have in stock?
A: DriveKNMS maintains active sourcing channels for obsolete Mitsubishi MELSEC hardware. Contact us with your quantity requirement and timeline, and we will provide a sourcing assessment.
