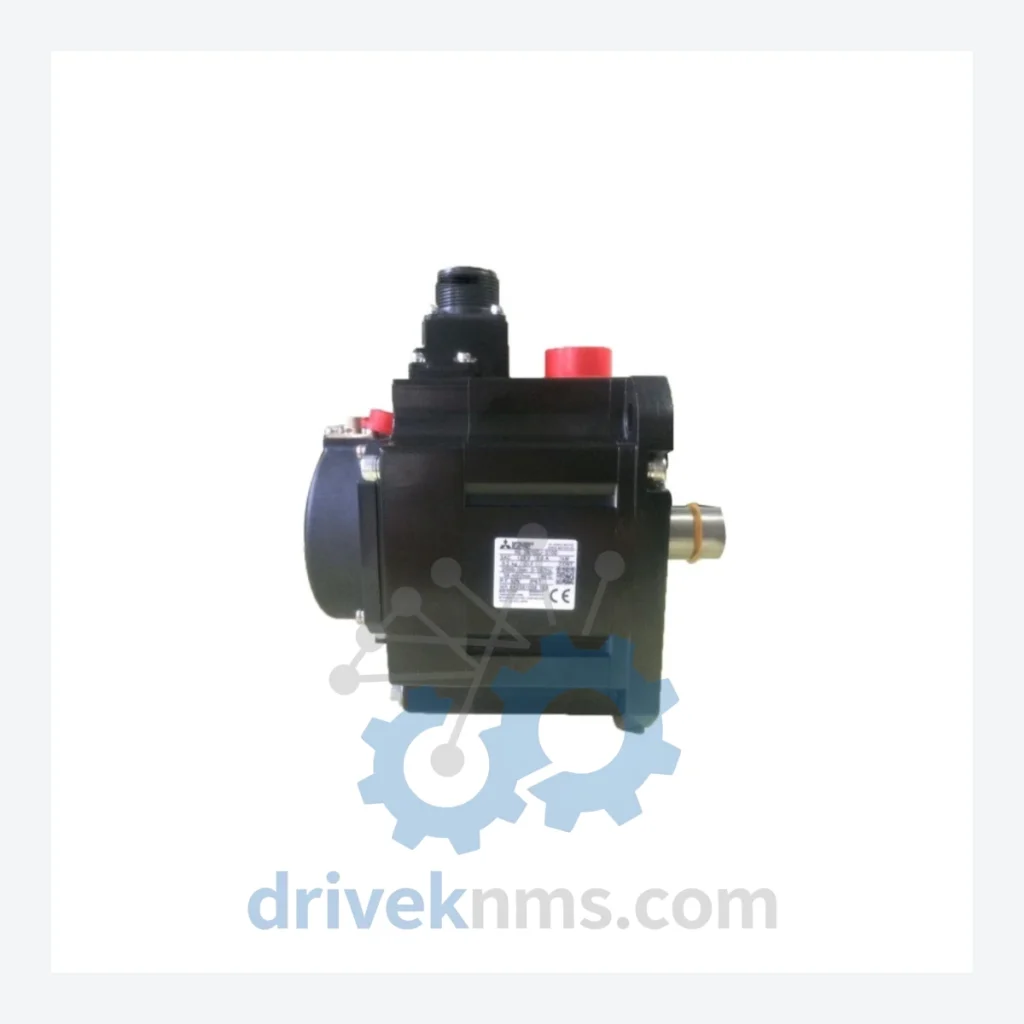

Mitsubishi HG-SN102J-S100 AC Servo Motor – Obsolete MELSERVO-J4 Spare Part

When a servo motor fails on a legacy Mitsubishi MELSERVO-J4 production line, the consequences extend far beyond a single component replacement. A forced migration to a current-generation servo platform — MR-J5 or equivalent — requires new servo amplifiers, updated cabling, PLC parameter reconfiguration, and in many cases, a full mechanical re-coupling. Engineering hours, line downtime, and system re-commissioning costs routinely push such projects into the hundreds of thousands of dollars. For facilities running multi-axis coordinated motion or high-throughput packaging lines, the disruption is compounded further.

DriveKNMS maintains verified stock of the Mitsubishi HG-SN102J-S100 — a direct drop-in replacement for your existing MELSERVO-J4 axis. Securing this unit today is not a parts purchase; it is a capital asset protection decision.

Technical Specifications

Note: Electrical parameters listed above are based on published Mitsubishi Electric documentation for the HG-SN Series. Any parameters not confirmed by official documentation have been intentionally omitted to preserve data integrity.

Solving the Discontinued Hardware Crisis

The MELSERVO-J4 platform was Mitsubishi Electric's flagship servo system for over a decade, deployed extensively in automotive body welding lines, semiconductor handling equipment, food and beverage filling systems, and precision machine tools. The HG-SN102J-S100 — a 1 kW motor in the high-inertia SN frame — was a workhorse axis in these installations.

With Mitsubishi Electric having transitioned its active product roadmap to the MELSERVO-J5 generation, the HG-SN102J-S100 is no longer manufactured on a standard production basis. Authorized distributors have exhausted their pipeline stock. The secondary market supply is finite and diminishing.

For plant engineers and maintenance managers, this creates a concrete operational risk: a single failed motor on a coordinated multi-axis system can halt an entire production cell. The cost of that downtime — measured in lost throughput, missed delivery commitments, and emergency engineering mobilization — dwarfs the cost of maintaining a strategic spare inventory.

How to extend your MELSERVO-J4 asset life by 5 to 10 years:

• Conduct a criticality audit. Map every HG-SN102J-S100 axis in your facility. Identify which axes are on single-point-of-failure paths with no redundancy. These are your highest-priority procurement targets.
• Establish a minimum spare holding. For high-cycle axes running three shifts, a minimum of two spare motors per axis type is a defensible maintenance standard. For lower-cycle axes, one spare per production line is a reasonable baseline.
• Negotiate long-term supply agreements. Suppliers with verified obsolete stock — such as DriveKNMS — can structure staged delivery agreements that spread capital outlay while securing your allocation before market supply is exhausted.
• Implement predictive maintenance protocols. Vibration monitoring and thermal imaging on servo motors can provide 3–6 months of advance warning before a bearing or winding failure becomes a production event. This lead time is sufficient to source replacement units even in a constrained market.
• Document encoder backup procedures. The 22-bit absolute encoder on the HG-SN102J-S100 retains position data. Ensure your maintenance team has a documented procedure for battery backup verification and encoder data preservation during motor swap — this eliminates re-homing downtime on replacement.

A structured spare parts strategy for legacy servo systems is not a cost center. It is the lowest-cost insurance policy available against a forced capital expenditure that your budget cycle was not designed to absorb.

Condition & Reliability Assurance

Obsolete servo motors sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step inspection protocol to every HG-SN102J-S100 unit before it is offered for sale:

1. Electrolytic capacitor assessment. Internal drive-side capacitors and any motor-integrated components are inspected for bulging, leakage, and ESR degradation. Capacitor aging is the primary failure mode in long-stored servo equipment.
2. Encoder firmware and battery verification. The absolute encoder battery voltage is measured and replaced if below specification. Encoder firmware version is recorded and cross-referenced against known compatibility matrices for MR-J4 amplifiers.
3. Terminal and connector pin inspection. All motor power connectors and encoder connectors are inspected under magnification for pin corrosion, fretting wear, and contact resistance. Corroded contacts are the leading cause of intermittent encoder faults in stored units.
4. Winding insulation resistance test. Megohmmeter testing is performed on all three motor phases to ground. Units failing to meet minimum insulation resistance thresholds are rejected.
5. No-load run test. Where test infrastructure permits, units are run at rated speed on a compatible MR-J4 amplifier and monitored for abnormal vibration, thermal rise, and encoder error counts.

Units that pass all five stages are classified as Inspected – Ready for Service. Units with minor cosmetic wear but full electrical integrity are classified as Refurbished – Tested. No unit is shipped without a documented inspection record.

Key Features for System Maintenance

• Drop-in replacement. The HG-SN102J-S100 is a direct mechanical and electrical substitute for any existing HG-SN102J-S100 installation. No amplifier parameter changes, no cabling modifications, no PLC program edits are required.
• No re-commissioning engineering cost. Unlike a platform migration, a like-for-like motor replacement requires only standard maintenance procedures. Your existing servo tuning parameters remain valid.
• Preserves your existing capital investment. Your MR-J4 amplifiers, servo cables, and motion controller configurations represent a substantial installed asset. Replacing a failed motor extends the productive life of that entire investment without triggering a system-wide upgrade project.
• Immediate availability. Stock is held at our warehouse and can be shipped within 24–48 hours of order confirmation, subject to export documentation requirements.

FAQ

Q: What warranty applies to an obsolete servo motor?
A: DriveKNMS provides a 90-day warranty against electrical failure on all inspected units. Warranty coverage applies to motor winding and encoder function under normal operating conditions. Physical damage resulting from installation errors is excluded.

Q: How do I confirm the unit is genuine Mitsubishi Electric and not a counterfeit?
A: All units are inspected for authentic Mitsubishi Electric nameplate markings, serial number format consistency, and internal construction quality. We provide the serial number and inspection report with every shipment. Customers are encouraged to verify serial numbers with Mitsubishi Electric's regional service centers.

Q: Should I buy more than one unit?
A: For any axis running in a production-critical application, holding at least one cold spare is standard practice. Given the finite and declining availability of HG-SN102J-S100 units on the secondary market, procuring two or more units now — while verified stock exists — is a lower-risk position than sourcing reactively after a failure event.

Q: Can you source other HG-SN Series or MELSERVO-J4 components?
A: Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components. Contact us with your full BOM or parts list for availability assessment.
