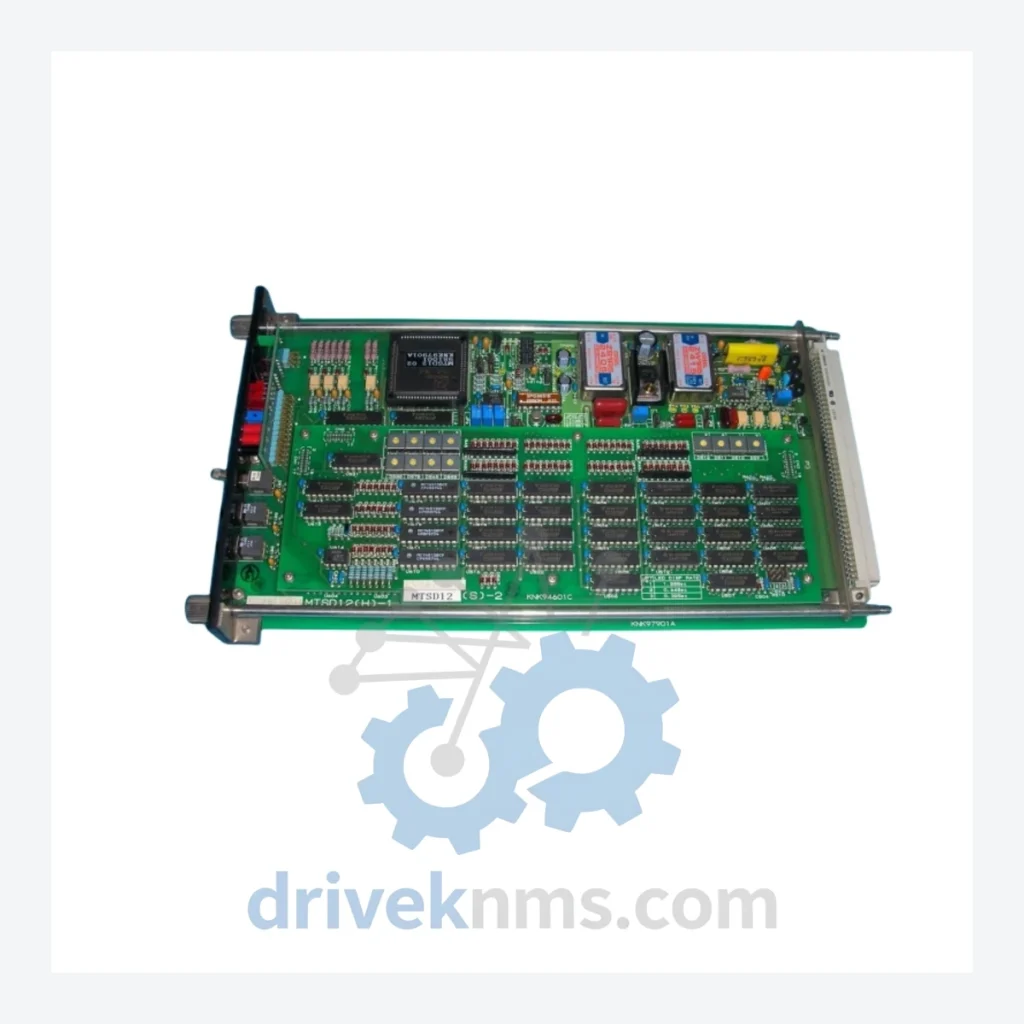

Mitsubishi MTSD12 Board – Obsolete MELSEC Series Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi MTSD12 Board – Obsolete MELSEC Series Spare Part

When a critical control board fails on a legacy Mitsubishi MELSEC production line, the consequences extend far beyond a single module. A full system migration — including new PLC hardware, engineering hours, software re-commissioning, operator retraining, and production downtime — routinely costs manufacturers between $500,000 and $3,000,000 USD. The MTSD12 board is a discontinued component that sits at the heart of many such legacy installations. DriveKNMS maintains limited physical stock of this board, sourced through verified industrial channels, specifically to serve facilities that cannot afford — or are not yet ready — to absorb the cost of a full platform upgrade.

This is not a catalog listing. This is a finite inventory of a part that is no longer manufactured. Once it is gone, field-sourcing becomes a multi-month exercise with no guaranteed outcome.

Technical Specifications

Note: Electrical parameters for this discontinued board are not published in current Mitsubishi documentation. Confirmed specifications are provided upon request based on physical unit inspection. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The Mitsubishi MELSEC platform served as the backbone of automated manufacturing across automotive, food processing, semiconductor, and heavy industry sectors throughout the 1980s and 1990s. Many of these installations remain operational today — not because replacement is impossible, but because the cost and risk of replacement outweigh the cost of maintenance.

The MTSD12 board occupies a specific functional role within these legacy architectures. It is not a generic component that can be substituted with a modern equivalent without engineering intervention. Replacing it with a current-generation module requires hardware reconfiguration, software adaptation, and in many cases, a full I/O remapping exercise. For a facility running 24/7 production schedules, this is not a weekend project.

Facilities that have adopted a structured spare parts strategy — maintaining one or two verified MTSD12 units in bonded storage — report the ability to recover from board-level failures within hours rather than weeks. This is the operational reality that separates a planned maintenance event from an unplanned production crisis.

The long-term economics are straightforward: a single MTSD12 spare, properly stored, can defer a $1–3M system migration by 5 to 10 years. For plant managers operating under capital expenditure constraints, this is not a procurement decision — it is an asset protection decision.

Condition & Reliability Assurance

Every MTSD12 unit that leaves DriveKNMS has passed a structured 5-step quality process designed specifically for discontinued industrial hardware:

• Step 1 – Electrolytic Capacitor Inspection: Aging electrolytic capacitors are the primary failure mode in boards of this era. Each unit is inspected for bulging, leakage, and ESR deviation. Capacitors outside tolerance are replaced with industrial-grade equivalents.
• Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented. Incompatible firmware versions are flagged before shipment.
• Step 3 – Pin and Connector Corrosion Audit: All edge connectors and pin headers are inspected under magnification for oxidation, pitting, and mechanical deformation. Affected contacts are treated or the unit is rejected.
• Step 4 – Functional Bench Test: Units are powered and tested against known-good reference configurations where test fixtures are available.
• Step 5 – Anti-Static Packaging and Documentation: Each unit ships in ESD-safe packaging with a condition report. Lot traceability is maintained for all refurbished units.

Key Features for System Maintenance

• Drop-in Replacement: The MTSD12 is a direct hardware replacement for the original board position. No rack modification or mechanical adaptation is required.
• No Reprogramming Required: In standard replacement scenarios, the existing PLC program and configuration remain intact. The replacement board restores function without requiring software changes.
• Avoids Engineering Reconstruction Costs: Using an original-specification board eliminates the need for I/O remapping, software migration, or third-party integration work that a modern substitute would require.
• Immediate Dispatch: Stock on hand. No lead time associated with manufacturing or procurement queues.
• Long-Term Storage Guidance: DriveKNMS can advise on proper storage conditions for customers purchasing units as strategic spares.

FAQ

What warranty applies to a discontinued board like the MTSD12?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers failure under normal operating conditions and excludes physical damage or installation errors.

How do I know the unit is genuine and not counterfeit?
All units are sourced from decommissioned OEM installations or verified industrial surplus channels. Physical markings, board revision codes, and component dates are inspected as part of our intake process. Documentation is available upon request.

Should I buy more than one unit?
For any system where the MTSD12 is a single point of failure, holding a minimum of two units in reserve is the standard recommendation. Given that this part is no longer manufactured, restocking after a failure event is not guaranteed. Strategic spare holding is the only reliable form of downtime insurance for legacy platforms.

Can you source additional units if I need more than you have in stock?
DriveKNMS maintains active sourcing relationships across global industrial surplus networks. Contact us with your quantity requirement and we will provide a sourcing assessment within 48 hours.

© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
