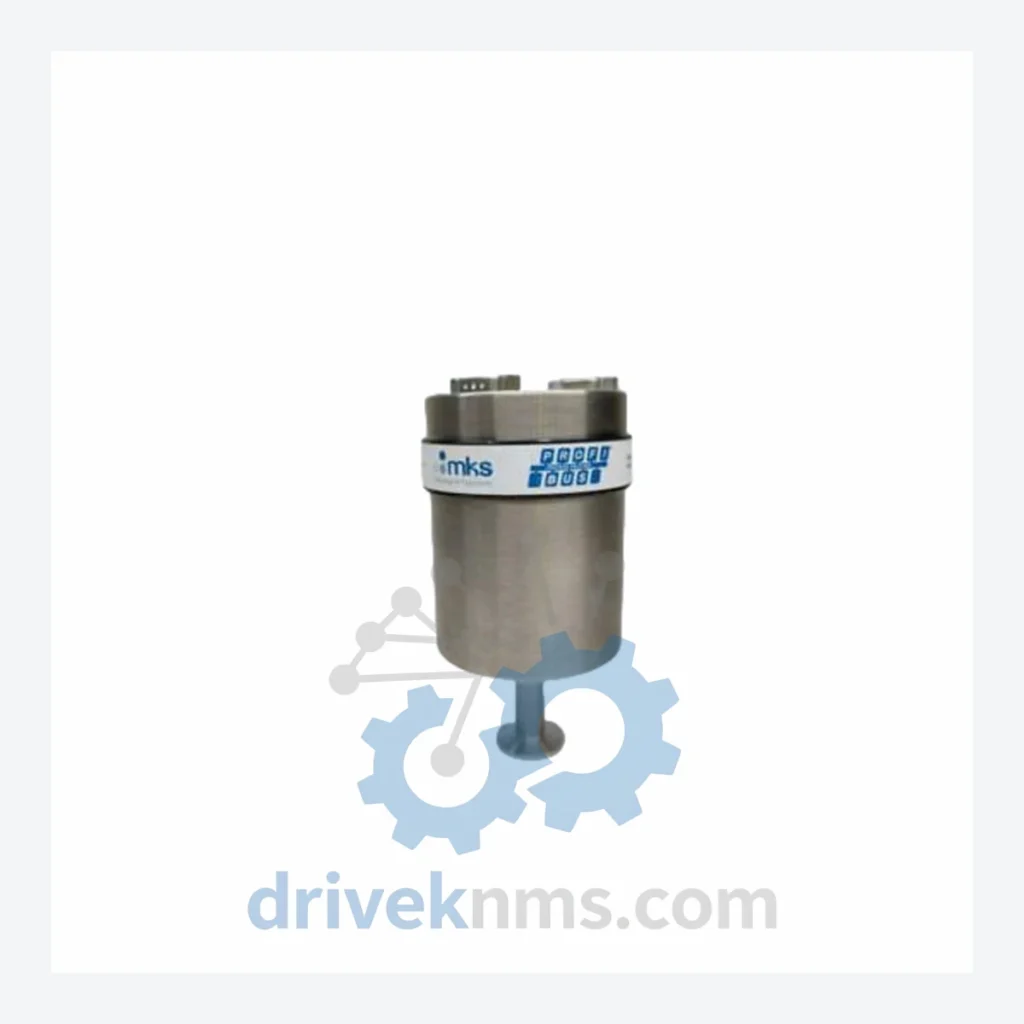

MKS 627BX01MDC4B Absolute Pressure Transducer – Obsolete Baratron Spare Part

Technical Dossier

Product Details And Specifications

MKS 627BX01MDC4B Absolute Pressure Transducer – Obsolete Baratron Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as full-scale range, output signal, and supply voltage are unit-specific and encoded in the part number suffix. DriveKNMS will confirm exact specifications against physical unit markings prior to shipment. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The MKS Baratron 627B series was the pressure measurement standard across an entire generation of semiconductor process equipment. Its capacitance diaphragm sensing technology delivered the sub-Torr accuracy and long-term stability that process engineers built their recipes around. When MKS transitioned its product line, facilities running tools qualified on 627B-series transducers faced a hard choice: requalify the process with a new sensor — a months-long effort involving process of record changes, yield validation, and regulatory documentation — or source the original part.

For most operations, requalification is not a viable option during active production. The 627BX01MDC4B is not interchangeable with modern successors without engineering intervention. Its mechanical interface, output signal characteristics, and thermal behavior are matched to the tool's existing wiring, PLC input cards, and process recipes. Substituting a different sensor without full revalidation introduces process drift risk that is unacceptable in yield-sensitive environments.

Facilities that have extended the life of their legacy vacuum tools by 5 to 10 years beyond the OEM's support window consistently cite one strategy: maintaining a dedicated inventory of critical wear and failure-prone components. The 627BX01MDC4B, as a diaphragm-based sensor exposed to corrosive process gases, is among the highest-priority components to hold in reserve. A single unit in storage eliminates the risk of an unplanned tool-down event that cannot be resolved through any standard procurement channel.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance protocol to all obsolete and legacy components before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Full external inspection for physical damage, corrosion on process fittings, and diaphragm housing integrity. Units with compromised sealing surfaces are rejected.
• Step 2 – Electrolytic Capacitor Assessment: Internal inspection for electrolytic capacitor aging, swelling, or leakage in the signal conditioning electronics — a primary failure mode in units stored beyond 10 years.
• Step 3 – Firmware and Calibration Version Verification: Where accessible, firmware revision and factory calibration date are documented and disclosed to the buyer prior to shipment.
• Step 4 – Pin and Connector Corrosion Check: All electrical connectors and signal pins are inspected under magnification for oxidation, fretting corrosion, and contact integrity.
• Step 5 – Functional Verification: Units are powered and output signal continuity is confirmed. Full process-condition calibration verification is available on request and disclosed in the shipment documentation.

Condition grade (New Surplus, Refurbished, or Tested Used) is disclosed explicitly on every order confirmation. No unit is shipped without a documented condition statement.

Key Features for System Maintenance

• Drop-in replacement: The 627BX01MDC4B installs directly into the original mounting position with no mechanical modification to the process tool.
• No reprogramming required: Output signal and interface characteristics match the original unit. Existing PLC input configurations, alarm setpoints, and process recipes remain valid.
• Avoids engineering reconstruction costs: Eliminates the need for signal conditioning redesign, wiring harness modification, or process requalification that a non-equivalent substitute would require.
• Preserves process of record: In regulated manufacturing environments, using the original qualified component maintains compliance with existing process documentation without triggering a change control event.
• Immediate deployment: Units are shipped with all original fittings and connectors. No additional procurement of adapters or interface hardware is required.
