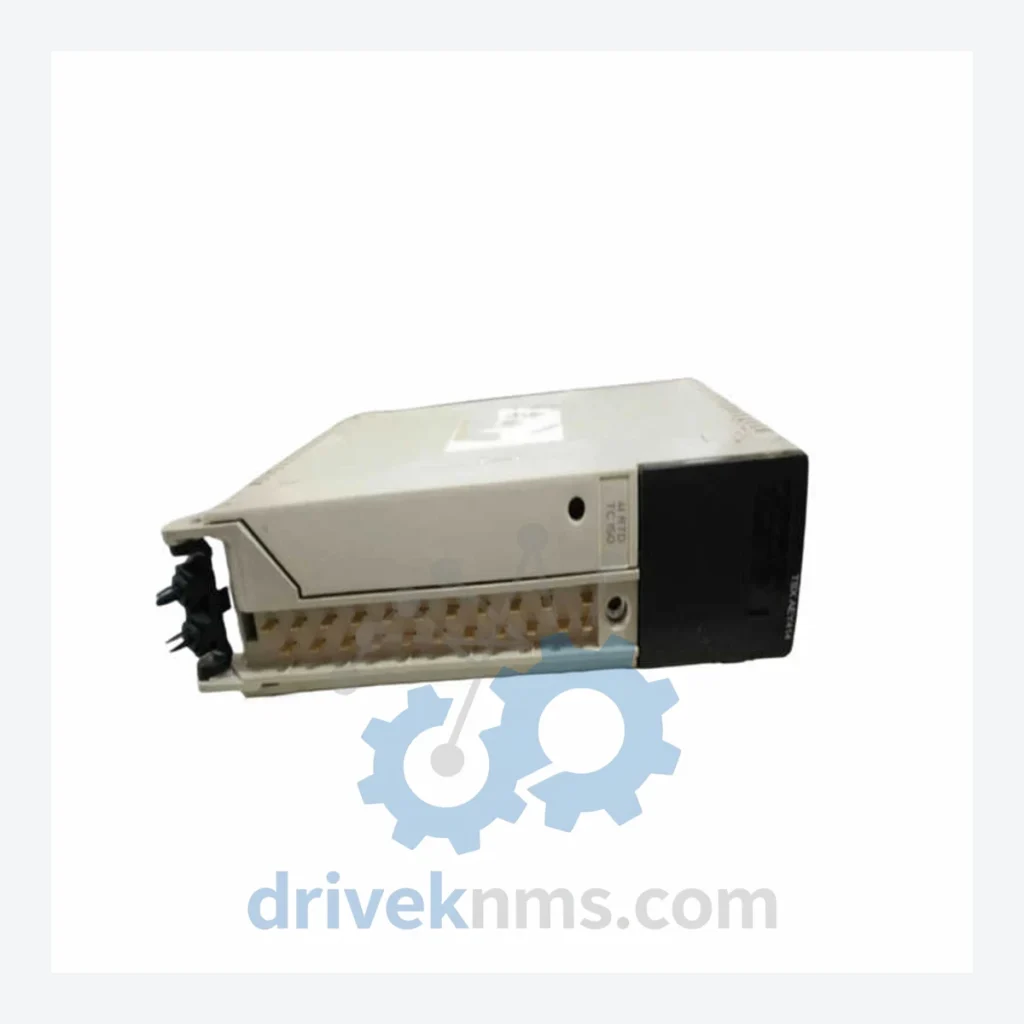

Schneider Electric TSXAEY414 Analog Input Module – Obsolete TSX Premium Spare Part

Technical Dossier

Product Details And Specifications

Schneider Electric TSXAEY414 Analog Input Module – Obsolete TSX Premium Spare Part

Technical Specifications

Note: Electrical parameters not listed here are not confirmed from verified datasheets. DriveKNMS does not publish unverified specifications. Please contact us for full technical documentation.

Solving the Discontinued Hardware Crisis

The TSX Premium platform was Schneider Electric's flagship mid-range PLC series for over two decades. Installed across petrochemical plants, water treatment facilities, automotive assembly lines, and discrete manufacturing operations worldwide, these systems were engineered for 20-year service lives — and many have exceeded that. The TSXAEY414 sits at the analog signal acquisition layer of these architectures, converting field-level process signals into data the CPU can act on. There is no firmware-compatible drop-in replacement available from Schneider Electric's current Modicon M340 or M580 product lines without significant re-engineering of the rack configuration, I/O addressing, and application software.

For a plant running a TSX Premium system, the realistic options when this module fails are: source a verified spare, or commit to a platform migration. The migration path is not simply a hardware swap. It involves new rack hardware, updated Unity Pro or EcoStruxure Machine Expert programming, I/O signal rewiring, functional safety re-validation where applicable, and a planned production shutdown. For facilities operating 24/7 or under tight regulatory compliance requirements, that shutdown window may not be schedulable for months. A verified TSXAEY414 spare eliminates that constraint entirely.

Condition & Reliability Assurance

Sourcing discontinued industrial modules from the secondary market carries real risk. DriveKNMS applies a structured 5-step inspection protocol before any TSXAEY414 unit is offered for sale:

• Step 1 – Visual and mechanical inspection: Housing integrity, connector pin condition, and PCB surface examination for corrosion, burn marks, or physical damage.
• Step 2 – Electrolytic capacitor assessment: Analog modules are particularly vulnerable to capacitor aging. Each unit is inspected for bulging, leakage, or ESR deviation that would indicate end-of-life capacitor condition.
• Step 3 – Firmware version verification: Where accessible, firmware revision is recorded and cross-referenced against known compatibility requirements for TSX Premium rack configurations.
• Step 4 – Pin and connector corrosion check: Backplane connector pins are examined under magnification and cleaned where necessary. Oxidized contacts are a leading cause of intermittent analog signal faults in aged modules.
• Step 5 – Functional power-on test: Units are powered and checked for normal initialization behavior prior to packaging.

Units that do not pass all five stages are not offered for sale. Condition grade is disclosed at the time of quotation.

Extending Automation Asset Life: A Practical Framework for Plant Management

The economic case for legacy system maintenance over premature replacement is straightforward when the numbers are examined directly. A TSX Premium installation that has been running reliably for 15 years has zero remaining capital depreciation burden. Its engineering documentation is complete, its operators are trained, and its failure modes are understood. The only variable is parts availability.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

DriveKNMS specializes in exactly this procurement function. We maintain inventory of discontinued Schneider Electric, Modicon, and other legacy automation components specifically to support facilities that have made the deliberate decision to extend asset life rather than accept the disruption and cost of forced migration.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for authenticity markers including label integrity, PCB markings, and component date codes consistent with the original manufacturing period. We do not source from unverified brokers.

Should I buy more than one unit?
For any TSX Premium system where the TSXAEY414 is installed in a critical control loop, holding at least one cold spare is advisable. Given the module's discontinued status and tightening secondary market supply, procurement now is materially lower risk than procurement under emergency conditions.

Can this module be used with TSX Micro or Momentum platforms?
No. The TSXAEY414 is designed specifically for TSX Premium rack architecture and is not compatible with other Modicon platform families.
