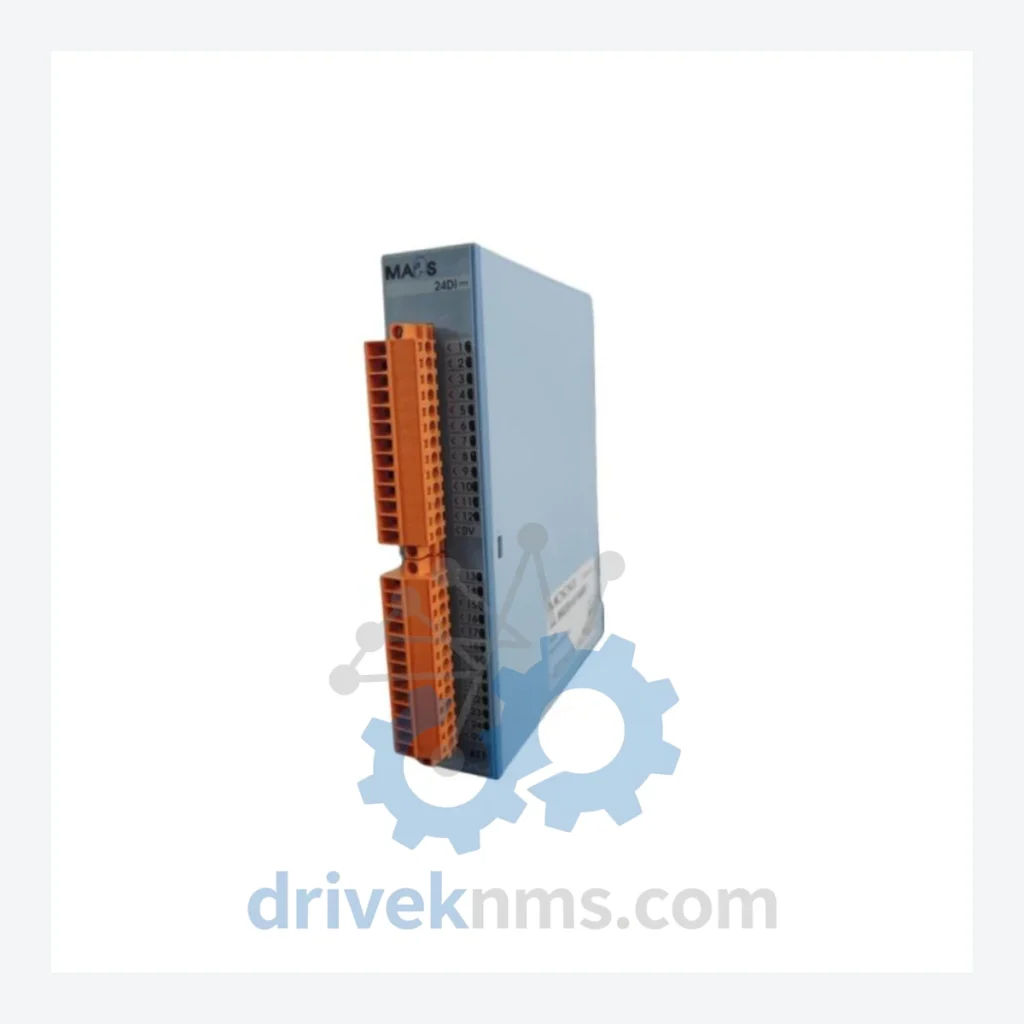

MOOG IMI220-422A001 Motion Controller – Obsolete TMC400 Series Spare Part

When a MOOG IMI220-422A001 controller fails on a TMC400-series-driven production line, the consequences extend far beyond the cost of the part itself. A full system migration — new hardware, re-engineering, re-commissioning, operator retraining, and production downtime — routinely runs into the hundreds of thousands, and in complex multi-axis environments, into the millions of dollars. DriveKNMS holds verified physical stock of this discontinued module, providing a direct path to restoring operations without triggering a capital expenditure cycle your budget was not prepared for.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, I/O counts, communication protocols) are verified against physical unit documentation at time of order. No parameters are published here without physical confirmation to protect equipment safety.

Solving the Discontinued Hardware Crisis

The MOOG TMC400 series was deployed extensively in precision CNC and multi-axis servo applications during its production lifecycle. These controllers are embedded in machine architectures where the motion control logic, axis tuning parameters, and PLC ladder programs are tightly coupled to the hardware. There is no software-only migration path — replacing the controller means replacing the control architecture, which in turn means re-engineering the machine.

For plant managers operating under capital expenditure constraints, the calculus is straightforward: a verified replacement IMI220-422A001 unit restores the machine to its validated production state. No re-engineering. No re-certification. No retraining. The asset continues generating revenue.

The broader strategic case for maintaining a spare parts buffer on discontinued MOOG TMC400 hardware is equally clear. A single unplanned failure event — with no spare on hand — forces an emergency procurement process against a market with limited supply and no OEM support. Lead times measured in weeks or months translate directly into lost production capacity. Facilities that pre-position one or two verified spare controllers absorb that risk at a fraction of the cost of a single unplanned shutdown.

Industry maintenance data consistently shows that extending the operational life of a proven automation asset by 5 to 10 years through targeted spare parts investment delivers a return that capital replacement programs cannot match on a per-unit-output basis. The IMI220-422A001 is precisely the type of module where this strategy applies: the machine it controls is paid off, the process it runs is validated, and the only variable is whether the control hardware remains available when it is needed.

Condition & Reliability Assurance

Every IMI220-422A001 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual & Mechanical Inspection: Board-level examination for physical damage, corrosion, pin deformation, and connector integrity.
• Step 2 – Electrolytic Capacitor Assessment: Identification and evaluation of aging electrolytic capacitors, which are the primary failure mode in controllers of this vintage. Units with visibly degraded or bulging capacitors are quarantined.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the target application.
• Step 4 – Pin & Contact Corrosion Check: All connector pins and edge contacts are inspected under magnification and cleaned where required. Corroded contacts that cannot be restored to specification are cause for rejection.
• Step 5 – Functional Bench Test: Power-on and basic functional verification is performed where test fixtures are available for the specific module type.

Units are classified as New Old Stock (NOS), Tested Serviceable, or Refurbished, and condition is disclosed explicitly at time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The IMI220-422A001 installs directly into the existing TMC400 system slot without hardware modification.
• No reprogramming required: Existing axis parameters, PLC programs, and machine configurations remain intact. Swap the module, restore from backup if applicable, and resume production.
• Avoids engineering reconstruction costs: Eliminates the need for control system re-architecture, third-party integration engineering, and the associated validation and commissioning cycles.
• Preserves validated production processes: The machine continues operating under its existing, proven process parameters — critical in regulated manufacturing environments.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all tested and refurbished units. New Old Stock units are sold with a 30-day DOA guarantee. Warranty terms are confirmed in writing at time of order.

How do I know the unit is genuine and not counterfeit?
All units are sourced through documented industrial decommissioning channels or authorized surplus distributors. Physical markings, board revision codes, and serial number formats are verified against known-authentic references. We do not source from unverified grey-market channels.

Should I purchase more than one unit?
For any production environment where the IMI220-422A001 is a single point of failure, holding a minimum of one cold spare is the standard recommendation. For high-utilization lines or facilities with multiple machines using this controller, a buffer of two to three units is appropriate. Current market availability of this part is limited and will not improve over time.

Can you source additional units if I need more?
Yes. DriveKNMS maintains an active procurement network for obsolete industrial components. Contact us with your quantity requirement and we will provide availability and lead time information.
