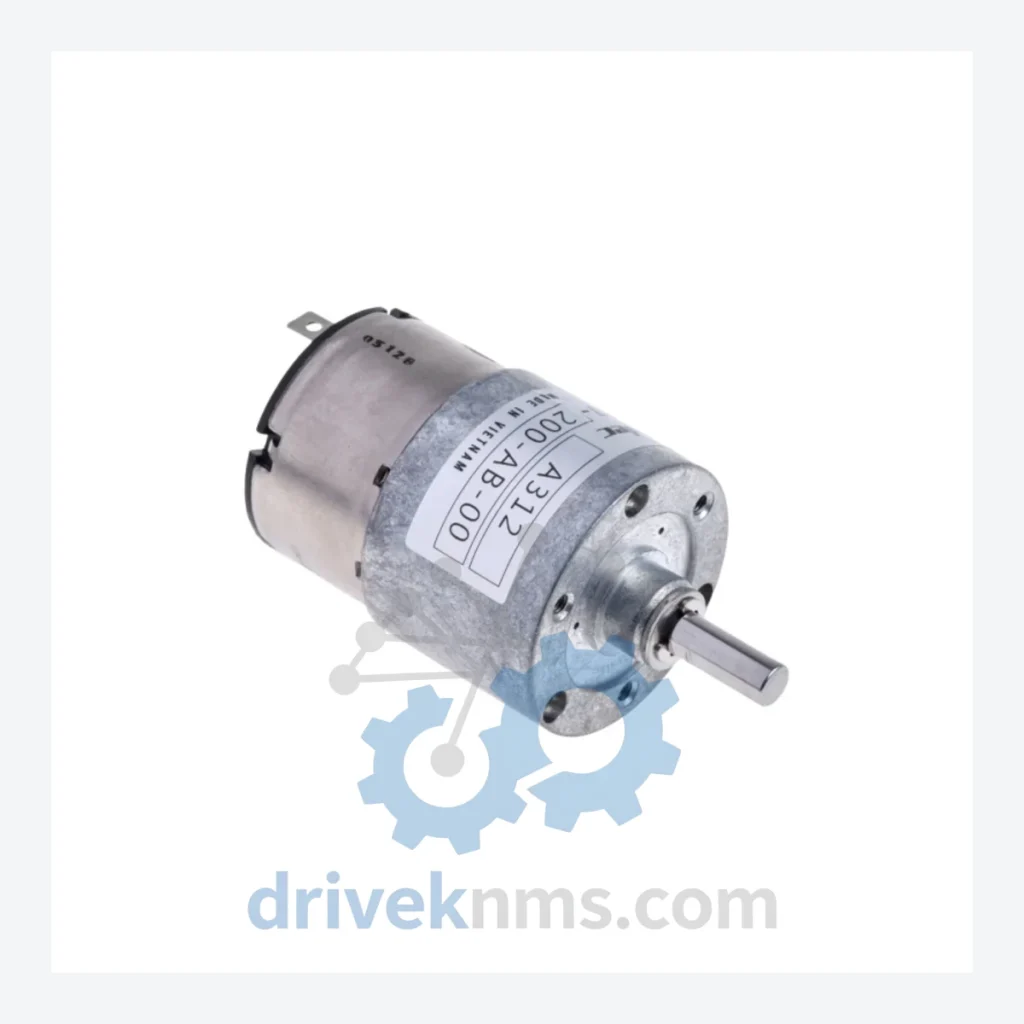

MOTOR LINE E1IMII DC Gear Motor Modules

Technical Dossier

Product Details And Specifications

MOTOR LINE E1IMII Series: Comprehensive Module Range and Technical Overview

The MOTOR LINE E1IMII series represents a compact, high-torque DC gear motor platform widely deployed across heavy industrial sectors including chemical processing plants, oil refineries, packaging lines, conveyor systems, and automated assembly facilities. The E1IMII designation identifies a standardized gear motor family engineered for continuous-duty operation under variable load conditions. Units in this series are characterized by their integrated gearbox-motor construction, enabling direct mounting to driven shafts without external coupling assemblies. Installed base spans European and Asian manufacturing facilities where precise low-speed, high-torque drive requirements demand reliable, field-replaceable motor units. The 050405 E1IMII variant is a representative SKU within this family, specifying a defined gear ratio, frame size, and output shaft configuration.

The Evolution of E1IMII Architecture

The E1IMII series follows the IEC-standard motor frame classification system, with the prefix designating the gear motor sub-family and the suffix encoding the insulation class (Class F, minimum), mounting configuration, and output shaft type. Early production variants used brush-type DC armatures with separate field windings, requiring periodic brush inspection intervals of 2,000–4,000 operating hours. Mid-generation revisions introduced permanent magnet field construction, eliminating field winding maintenance and improving efficiency at partial loads. Current production E1IMII units incorporate sealed bearing assemblies rated for grease-lubricated service intervals exceeding 20,000 hours under nominal radial load. Gearbox stages use helical or worm gear geometry depending on the ratio designation encoded in the full part number. Compatibility across generations is constrained by mounting flange dimensions (IEC B14/B5 face mount) and shaft diameter tolerances; electrical interface compatibility requires verification of armature voltage rating (typically 24 VDC or 90 VDC variants) and encoder feedback option codes. Replacement of early brush-type units with permanent magnet variants requires drive parameter reconfiguration if a DC drive controller is in the circuit.

E1IMII Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the MOTOR LINE E1IMII DC gear motor series, classified by output configuration and gear ratio range:

DC Gear Motor — Standard Output Shaft, Low Ratio (i = 3.5:1 to 14:1)

• 050401 E1IMII: 0.04 kW DC gear motor, i=3.5, IEC B14 face mount, 9 mm output shaft
• 050402 E1IMII: 0.04 kW DC gear motor, i=5.6, IEC B14 face mount, 9 mm output shaft
• 050403 E1IMII: 0.04 kW DC gear motor, i=8.2, IEC B14 face mount, 9 mm output shaft
• 050404 E1IMII: 0.04 kW DC gear motor, i=11, IEC B14 face mount, 9 mm output shaft
• 050405 E1IMII: 0.04 kW DC gear motor, i=14, IEC B14 face mount, 9 mm output shaft — primary reference SKU

DC Gear Motor — Standard Output Shaft, Medium Ratio (i = 18:1 to 56:1)

• 050406 E1IMII: 0.04 kW DC gear motor, i=18, IEC B14 face mount, 9 mm output shaft
• 050407 E1IMII: 0.04 kW DC gear motor, i=28, IEC B14 face mount, 9 mm output shaft
• 050408 E1IMII: 0.04 kW DC gear motor, i=40, IEC B14 face mount, 9 mm output shaft
• 050409 E1IMII: 0.04 kW DC gear motor, i=56, IEC B14 face mount, 9 mm output shaft

DC Gear Motor — High Ratio / High Torque (i = 70:1 to 200:1)

• 050410 E1IMII: 0.04 kW DC gear motor, i=70, IEC B14 face mount, 11 mm output shaft
• 050411 E1IMII: 0.04 kW DC gear motor, i=100, IEC B14 face mount, 11 mm output shaft
• 050412 E1IMII: 0.04 kW DC gear motor, i=140, IEC B14 face mount, 11 mm output shaft
• 050413 E1IMII: 0.04 kW DC gear motor, i=200, IEC B14 face mount, 11 mm output shaft

DC Gear Motor — Hollow Shaft / Torque Arm Mount Variants

• 050405 E1IMII-H: 0.04 kW DC gear motor, i=14, hollow output shaft, torque arm mounting bracket included
• 050407 E1IMII-H: 0.04 kW DC gear motor, i=28, hollow output shaft, torque arm mounting bracket included
• 050410 E1IMII-H: 0.04 kW DC gear motor, i=70, hollow output shaft, torque arm mounting bracket included

DC Gear Motor — Encoder Feedback Option

• 050405 E1IMII-E: 0.04 kW DC gear motor, i=14, integrated incremental encoder, 500 PPR, 5 VDC supply
• 050408 E1IMII-E: 0.04 kW DC gear motor, i=40, integrated incremental encoder, 500 PPR, 5 VDC supply

Sourcing Hard-to-Find & Obsolete E1IMII Parts

The E1IMII series has entered the mature-to-declining phase of its product lifecycle. MOTOR LINE has transitioned current production toward successor platforms with updated insulation systems and revised mounting interfaces. As a result, a significant portion of the E1IMII catalog — particularly brush-type armature variants and early hollow-shaft configurations — is no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory of new-old-stock (NOS), reconditioned, and tested-serviceable E1IMII units sourced through authorized surplus channels and direct OEM relationships. For facilities operating legacy machinery with E1IMII drives integrated into the mechanical drivetrain, DriveKNMS provides lifecycle extension support including: cross-reference identification from partial nameplate data, equivalent substitution analysis where direct replacements are unavailable, and long-term supply agreements for maintenance stock. Customers requiring multiple units for planned maintenance shutdowns are advised to submit consolidated parts lists to enable batch sourcing and lead time optimization.

Quality Control for the E1IMII Range

Each E1IMII unit processed through DriveKNMS undergoes a structured inspection and functional test protocol prior to dispatch. The procedure addresses the specific failure modes documented in this series: gearbox lubricant degradation, brush wear beyond service limit, armature winding insulation breakdown, and output shaft bearing radial play. Test sequence: (1) Visual inspection of housing, mounting flange, and shaft seal integrity. (2) Insulation resistance measurement (megohm test) between armature winding and frame at 500 VDC. (3) No-load run test at rated armature voltage for minimum 15 minutes, monitoring current draw and audible noise signature. (4) Output shaft torque verification at rated speed using a calibrated brake dynamometer. (5) Encoder output signal verification (where applicable) using oscilloscope capture at rated speed. Units failing any stage are quarantined and documented. Test records are retained and available upon request for quality-critical procurement processes.
