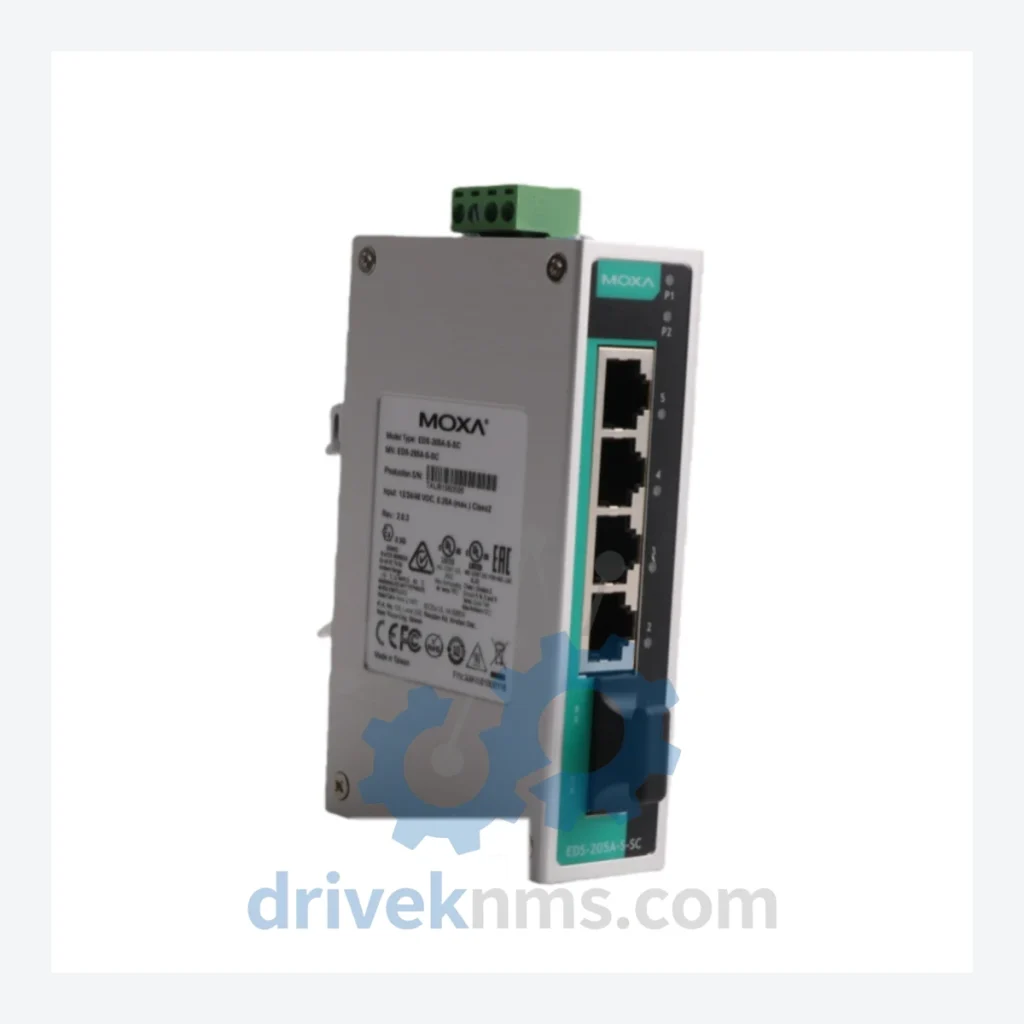

Moxa EDS-205A Unmanaged Ethernet Switch – Obsolete EDS Series Spare Part

The Moxa EDS-205A is a compact, DIN-rail mountable, unmanaged industrial Ethernet switch widely deployed across manufacturing plants, process automation facilities, and machine control cabinets throughout the 2000s and early 2010s. Moxa has since discontinued this model as part of the broader EDS-200 series phase-out, and sourcing a verified replacement unit through official channels is no longer possible.

For plant managers and maintenance engineers still operating legacy control architectures built around this switch, the calculus is straightforward: a single failed EDS-205A can sever the Ethernet backbone connecting PLCs, HMIs, and SCADA nodes within a production cell. The downstream consequence is not merely a switch replacement — it is an unplanned line stoppage that, in high-throughput environments, can cost tens of thousands of dollars per hour. If the failure triggers a broader infrastructure review, procurement teams may face pressure to upgrade the entire network layer, pulling adjacent controllers, cabling, and software licenses into scope. Conservative estimates place full-cell network modernization costs at USD $200,000–$800,000 depending on plant scale. Against that backdrop, securing a verified spare EDS-205A at a fraction of that cost is not a purchasing decision — it is a risk management decision.

DriveKNMS maintains limited verified stock of the Moxa EDS-205A sourced through controlled industrial surplus channels. Each unit undergoes our in-house QA protocol before dispatch.

Technical Specifications

Note: Parameters marked with no value are not confirmed across all hardware revisions and are intentionally omitted to avoid misrepresentation. Always cross-reference with the original unit label and documentation.

Solving the Discontinued Hardware Crisis

The EDS-205A was engineered for deterministic, low-latency Ethernet communication in environments where managed switches were unnecessary overhead. Its five-port unmanaged topology made it the default choice for small production cells, machine-level networks, and distributed I/O clusters where simplicity and reliability outweighed configurability.

The problem facing maintenance teams today is not technical — it is logistical. Moxa's EDS-200 series reached end-of-life, and the recommended migration path involves newer EDS-300 or EDS-400 series hardware with different form factors, power requirements, and in some cases different port configurations. For a plant running 40 or 60 of these switches embedded across a decade-old automation architecture, replacing them is not a maintenance task — it is a capital project.

How to extend your automation asset lifespan by 5–10 years using critical spare parts:

• Identify single points of failure first. Map every EDS-205A in your facility. Switches embedded in safety-critical or high-throughput cells carry the highest replacement priority. A switch failure in a non-critical monitoring loop is an inconvenience; the same failure in a press line or filling station is a production emergency.
• Establish a minimum buffer stock. Industry practice for obsolete network hardware in continuous-process environments is a minimum 2–3 spare units per critical cell, with at least one unit held in sealed storage. This provides immediate swap capability without waiting for sourcing lead times that, for discontinued parts, can stretch to 8–16 weeks or longer.
• Avoid cross-model substitution without validation. The EDS-205A's unmanaged architecture means there is no configuration to migrate — but physical compatibility (DIN-rail footprint, power connector type, port count) must be verified before any substitute is installed. Unvalidated substitutions in live control networks introduce risk that outweighs the cost of sourcing the correct part.
• Document firmware and hardware revisions. Where multiple hardware revisions of the EDS-205A exist in your facility, record which revision is installed in each location. This information is critical for sourcing matched replacements and for any future compatibility assessments.
• Negotiate long-term supply agreements for obsolete parts. If your facility operates more than 10 units of any discontinued component, a forward purchase agreement with a verified obsolete parts supplier locks in pricing and availability before market stock is exhausted.

Condition & Reliability Assurance

Sourcing obsolete industrial hardware from unverified channels carries real risk. Age-related component degradation, improper storage, and undisclosed prior damage are common failure modes in the secondary market. DriveKNMS applies a structured 5-step QA protocol to every EDS-205A unit before dispatch:

1. Electrolytic Capacitor Inspection. Capacitor aging is the primary failure mechanism in electronics of this era. Each unit is inspected for bulging, leakage, or elevated ESR on all electrolytic capacitors. Units with degraded capacitors are either recapped with equivalent-spec components or rejected from stock.
2. Firmware Version Verification. Where the unit's firmware version is accessible and verifiable, it is documented and cross-referenced against known stable releases. Units with unknown or unverifiable firmware states are flagged accordingly.
3. Pin and Connector Corrosion Inspection. All RJ45 ports, power terminals, and DIN-rail mounting contacts are inspected under magnification for oxidation, corrosion, or mechanical damage. Affected contacts are cleaned or the unit is rejected.
4. Power-On Functional Test. Each unit is powered within its specified input voltage range and tested for port link establishment, LED indicator function, and basic traffic forwarding. Units that fail functional testing are not dispatched.
5. Packaging and ESD Protection. Cleared units are packaged in anti-static bags with desiccant and labeled with inspection date and technician ID, providing a documented chain of custody from our facility to your receiving dock.

Units are dispatched as Tested Pulls (removed from operational equipment and tested) or New Old Stock (NOS) where applicable. Condition is specified explicitly on each order confirmation.

Key Features for System Maintenance

• Drop-in replacement compatibility. The EDS-205A's physical and electrical interface is unchanged across its production run. A verified replacement unit installs into the existing DIN-rail slot, connects to existing power wiring, and links to existing Ethernet cabling without modification.
• No reconfiguration required. As an unmanaged switch, the EDS-205A requires no IP address assignment, no VLAN configuration, and no firmware provisioning. Power it on, connect the cables, and the network segment is restored — eliminating the engineering labor cost associated with managed switch replacements.
• No forced system-wide upgrade. Replacing a failed EDS-205A with a verified spare preserves the existing network architecture. There is no requirement to update adjacent PLCs, HMIs, or SCADA software to accommodate a new device.
• Predictable maintenance cost. Spare part procurement is a line-item maintenance expense. A forced infrastructure upgrade is a capital project requiring engineering assessment, procurement lead time, installation downtime, and recommissioning. The cost differential is not marginal.

FAQ

Q: What warranty applies to an obsolete part like the EDS-205A?
A: DriveKNMS provides a 90-day functional warranty on all tested units, covering failure under normal operating conditions within specified electrical parameters. Extended warranty arrangements are available for volume orders.

Q: How do I know the unit is genuine Moxa hardware and not a counterfeit?
A: Each unit is inspected for Moxa OEM markings, PCB silkscreen, and component sourcing consistent with known genuine hardware. We provide photographs of the actual unit — including label, PCB, and port detail — prior to shipment on request.

Q: Should I buy multiple units as long-term spares?
A: For any facility operating more than three EDS-205A units in production-critical roles, holding a minimum of two verified spares is advisable. Market availability of discontinued hardware is finite — once existing stock is exhausted globally, sourcing becomes speculative.

Q: Can you source specific hardware revisions or temperature-rated variants (EDS-205A-T)?
A: Availability varies by revision and variant. Contact us with your specific requirement — including the hardware revision from your existing unit's label if known — and we will confirm against current stock.

Q: What is your lead time?
A: In-stock units ship within 3–5 business days of order confirmation. We do not quote lead times for stock we do not hold.
