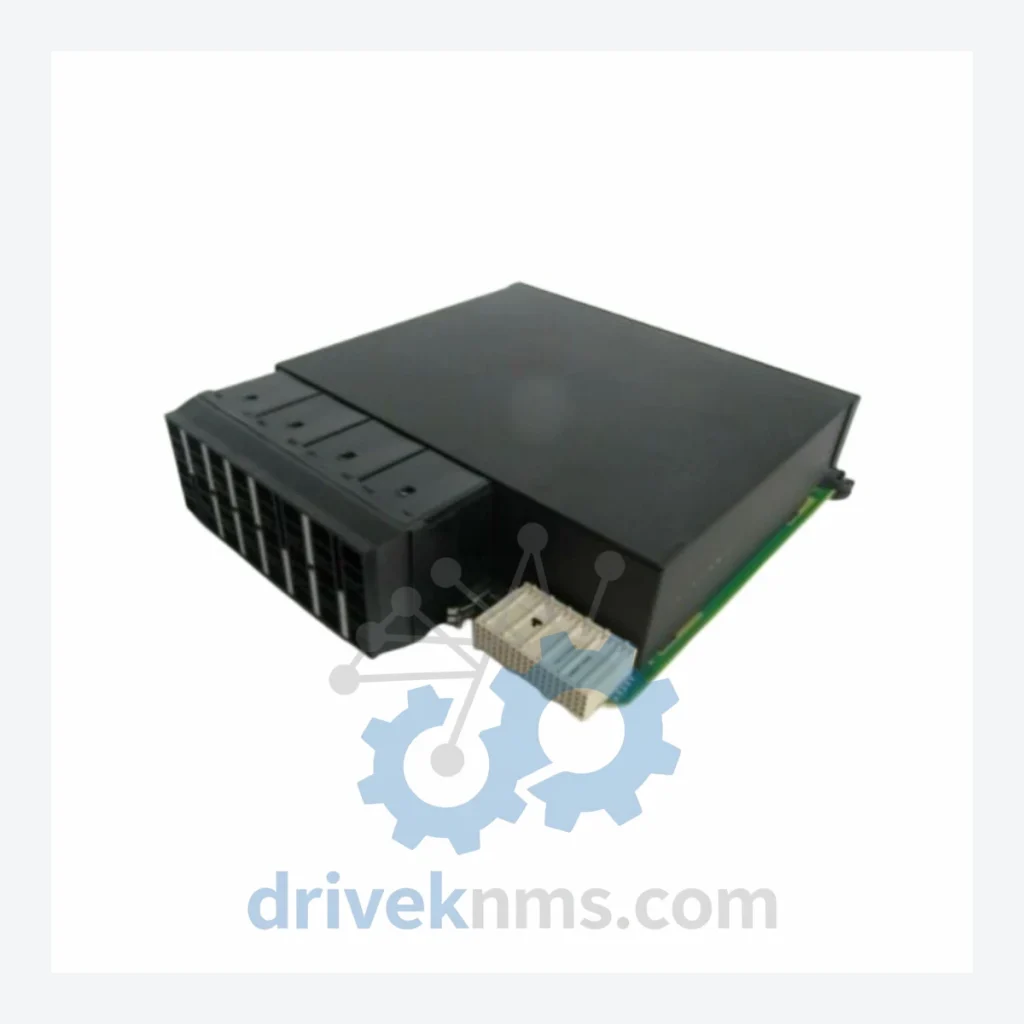

MTL MTL4850 Zener Barrier Multiplexer – Obsolete MTL4000 Series Spare Part

When a multiplexer module fails in a live process control environment, the consequences extend far beyond a single instrument loop. The MTL4850 sits at the intersection of field instrumentation and the control room — its failure can silence dozens of sensor channels simultaneously, triggering unplanned shutdowns, regulatory non-compliance events, and, in the worst case, a forced migration to a modern DCS platform that carries a seven-figure price tag in engineering, commissioning, and revalidation costs.

The MTL4000 series has been discontinued. Replacement units are no longer manufactured. Every MTL4850 remaining in the market is a finite asset. DriveKNMS maintains a carefully managed stock of this module specifically to serve facilities that have made the deliberate, financially sound decision to extend the operational life of their existing infrastructure rather than absorb the capital expenditure of a full system replacement.

Technical Specifications

Note: Electrical parameters such as input voltage range, channel count, and output signal specifications are not published here to avoid inaccuracy. Please contact us directly for verified datasheet documentation.

Solving the Discontinued Hardware Crisis

Process plants built in the 1990s and early 2000s were engineered around the MTL4000 series as a standard intrinsic safety solution. The MTL4850 multiplexer, in particular, was widely deployed in facilities running Honeywell TDC 3000, Foxboro I/A Series, and ABB Advant OCS platforms — systems that remain operational today because the cost and risk of replacement outweigh any incremental benefit from modern alternatives.

When MTL Instruments discontinued the 4000 series, it did not eliminate the installed base. It eliminated the supply chain. Facilities that did not build a strategic spare inventory at the time of discontinuation now face a procurement gap that grows more acute with each passing year.

The practical consequence: a single failed MTL4850 with no replacement available forces a choice between extended downtime, a costly workaround using incompatible modern barriers that require loop reconfiguration, or a full system migration. None of these options is inexpensive. A verified, tested MTL4850 spare — procured today — eliminates all three scenarios at a fraction of the cost.

How to extend your automation asset life by 5–10 years without a system overhaul:

• Audit your installed MTL4000 population now. Identify every MTL4850 in service and calculate the consequence of failure for each loop. Prioritize procurement based on criticality, not convenience.
• Establish a minimum two-unit buffer per critical application. One unit in service, one unit on the shelf. This is not over-stocking — it is the minimum defensible position for a discontinued component with no modern equivalent.
• Negotiate long-term supply agreements with specialist distributors. Spot-market procurement of obsolete parts becomes progressively more expensive and unreliable as global stock depletes. Locking in supply now, while stock exists, is a straightforward cost-containment measure.
• Document your installed firmware and hardware revisions. Compatibility between MTL4000 series revisions is not always guaranteed. Maintaining accurate records prevents the procurement of a unit that is electrically correct but revision-incompatible.
• Integrate obsolete component management into your asset lifecycle plan. A formal review cycle — annually at minimum — ensures that procurement decisions are made proactively rather than reactively during a production crisis.

Condition & Reliability Assurance

Sourcing a discontinued module from the secondary market carries inherent risk. DriveKNMS applies a structured five-step qualification process to every MTL4850 unit before it is offered for sale.

1. Visual and mechanical inspection: Full examination of the housing, terminal blocks, and PCB for physical damage, corrosion, or evidence of prior field failure. Units with pin corrosion, burn marks, or compromised terminal integrity are rejected at this stage.
2. Electrolytic capacitor assessment: Aged electrolytic capacitors are a primary failure mode in equipment of this vintage. Each unit is evaluated for capacitor condition; units showing evidence of electrolyte leakage or bulging are disqualified.
3. Firmware and hardware revision verification: Where applicable, the firmware version and hardware revision are documented and disclosed to the buyer prior to shipment. No unit is shipped with an undisclosed revision status.
4. Functional electrical test: Each unit undergoes powered functional verification against known-good reference parameters before being cleared for sale.
5. Packaging and ESD protection: Units are packaged in anti-static materials with appropriate cushioning for international freight. Condition grade (New, Refurbished-Grade A, or Tested-Used) is clearly stated on the shipping documentation.

Key Features for System Maintenance

• Drop-in replacement: The MTL4850 is a direct physical and electrical replacement for the same position in an MTL4000 series installation. No loop rewiring, no reconfiguration of the host DCS, no engineering change orders.
• No reprogramming required: Unlike modern barrier alternatives that may require parameter configuration or software integration, the MTL4850 operates on passive Zener barrier principles. Installation is a mechanical swap.
• Avoids engineering reconstruction costs: Substituting a modern equivalent barrier into an MTL4000 installation typically requires loop documentation review, safety integrity level re-assessment, and commissioning sign-off. A like-for-like MTL4850 replacement bypasses this process entirely.
• Preserves existing safety certification: Facilities operating under IEC 61511 or equivalent functional safety standards benefit from maintaining the original certified hardware configuration. Introducing a non-equivalent replacement may trigger a partial re-validation of the safety instrumented system.

FAQ

What warranty applies to a discontinued MTL4850?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. This applies to both new-old-stock and refurbished-grade units. Warranty terms are confirmed in writing prior to shipment.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are traceable to documented supply chain origins. We do not purchase from unverified brokers. Physical markings, PCB construction, and component population are cross-referenced against known-authentic reference units. Any unit that does not pass this verification is not offered for sale.

Should I buy more than one unit?
For any application where the MTL4850 is installed in a critical loop — particularly in safety instrumented systems or high-availability process lines — procuring a minimum of two units is the standard recommendation. The secondary market for this part will not improve over time. Current availability is the best availability you will encounter.

Can you source specific hardware or firmware revisions?
We maintain records of revision levels for units in current stock. Contact us with your specific revision requirement before placing an order and we will confirm compatibility.
