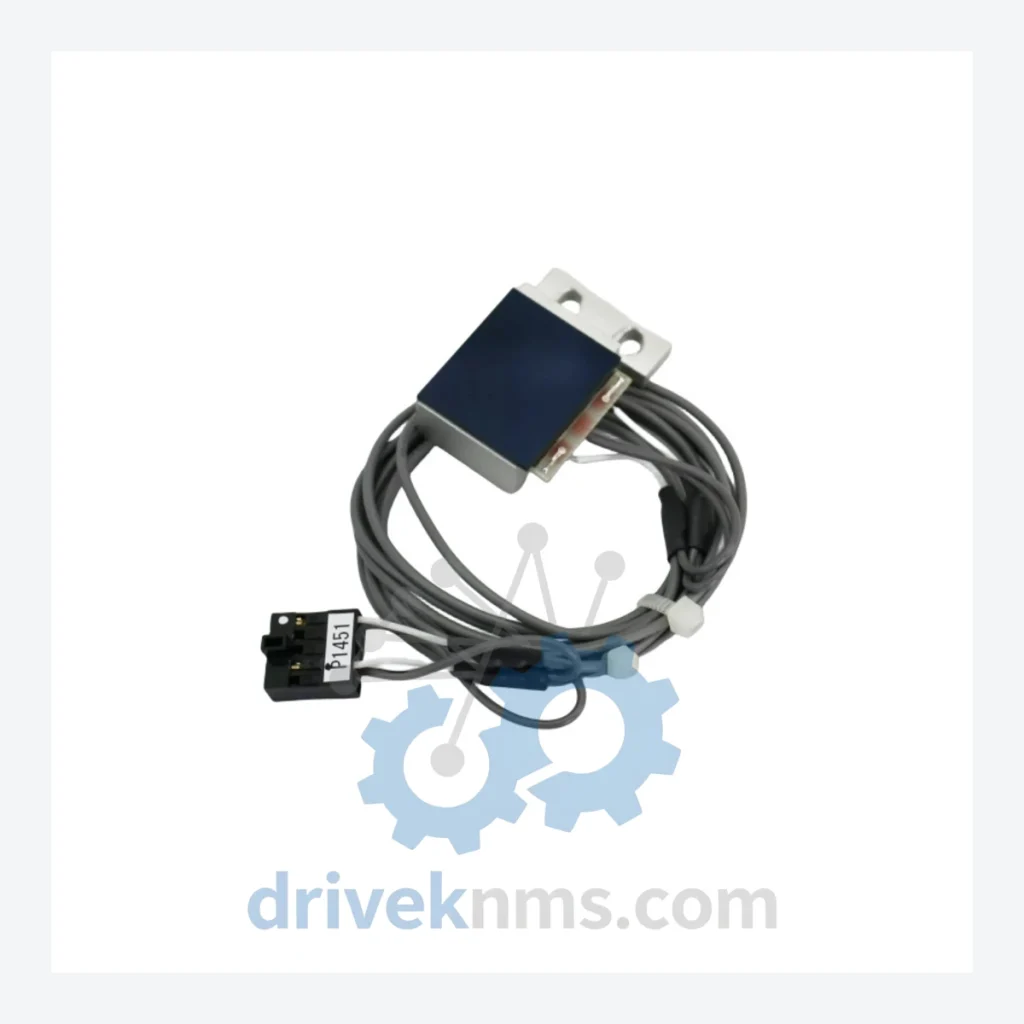

NIKON Analog Sensor SPD Unit Modules: 4L990-796 4L990-796AN 0040-61295 0010-12540 0010-22700W

Technical Dossier

Product Details And Specifications

NIKON Analog Sensor SPD Unit Series: Comprehensive Module Range and Technical Overview

NIKON's Analog Sensor SPD (Speed/Position Detection) Unit series represents a class of precision measurement and feedback modules engineered for integration into semiconductor lithography equipment, industrial motion control systems, and high-accuracy positioning platforms. These units are deployed globally in environments demanding sub-micron repeatability, including semiconductor fabrication plants, flat-panel display manufacturing lines, and precision metrology installations. The series encompasses signal conditioning boards, analog output modules, and encoder interface units that form the backbone of NIKON's closed-loop motion architecture. Facilities operating NIKON NSR, NRS, and related stepper/scanner platforms depend on these modules for stage velocity feedback, lens positioning, and reticle alignment — functions where component failure results in immediate production downtime. The installed base of these modules spans facilities in Japan, South Korea, Taiwan, the United States, and the Netherlands, making global spare parts availability a critical operational requirement.

The Evolution of NIKON Analog Sensor SPD Unit Architecture

NIKON's analog sensor and speed detection unit architecture has evolved across multiple generations of lithography and precision motion platforms. Early-generation units, introduced alongside NIKON's first-generation steppers in the 1980s and 1990s, relied on discrete analog signal chains with limited EMI shielding and single-ended output configurations. These boards interfaced directly with resolver-based feedback systems and were characterized by through-hole component construction, making field repair feasible but calibration labor-intensive.

Mid-generation units (circa late 1990s to mid-2000s) transitioned to surface-mount technology, introduced differential signal transmission to improve noise immunity in high-frequency switching environments, and adopted modular connector standards compatible with NIKON's evolving backplane architectures. Units such as the 4L990-796 and 4L990-796AN belong to this transitional generation, offering improved bandwidth and tighter gain tolerances compared to their predecessors.

Later revisions, including the 0040-61295, 0010-12540, and 0010-22700W, reflect NIKON's shift toward application-specific analog front-end designs with integrated filtering, onboard diagnostics, and compatibility with NIKON's proprietary high-speed serial interfaces. As the broader NIKON stepper/scanner installed base has matured, many of these part numbers have entered end-of-life status from the OEM, creating sustained demand for certified aftermarket and refurbished inventory.

NIKON Analog Sensor SPD Unit Full Catalog & Functionalities (SKU List)

The following catalog covers confirmed part numbers within the NIKON Analog Sensor and SPD Unit family. Each entry reflects a distinct functional role within the motion control or signal processing subsystem.

4L990-796: Analog sensor signal conditioning board, primary SPD feedback channel, stage velocity output.
4L990-796AN: Revised variant of 4L990-796 with updated gain network and enhanced thermal stability.
0040-61295: Speed detection unit interface board, encoder signal digitization and analog output conversion.
0010-12540: Analog output module, multi-channel differential signal distribution for motion controller input.
0010-22700W: High-bandwidth analog sensor unit, wide-temperature-range variant for extended environmental tolerance.
4L990-797: Secondary SPD channel board, redundant feedback path for dual-axis stage configurations.
4L990-800: Analog filter module, anti-aliasing and signal conditioning upstream of ADC conversion stage.
0040-61296: Encoder interface unit, quadrature signal decoding with analog velocity output.
0010-12541: Differential line driver board, signal amplification for long-cable analog transmission paths.
0010-22701: Standard-range analog sensor unit, single-channel velocity feedback for linear stage applications.
0040-61300: SPD calibration reference board, used during factory and field calibration of velocity feedback loops.
4L990-810: Analog multiplexer module, channel-switching for multi-axis sensor consolidation.
0010-12550: Precision analog summing board, combines multiple sensor inputs for composite position feedback.
0040-61310: High-resolution analog sensor interface, supports sub-micron position feedback resolution.
0010-22710W: Wide-range SPD unit, extended input voltage tolerance for legacy sensor compatibility.
4L990-820: Analog isolation amplifier board, galvanic isolation between sensor and controller signal domains.
0040-61320: Velocity estimation module, software-configurable filter coefficients for adaptive feedback tuning.

Sourcing Hard-to-Find & Obsolete NIKON Analog Sensor SPD Unit Parts

The majority of part numbers in the NIKON Analog Sensor SPD Unit family have been discontinued by NIKON Corporation as active catalog items. OEM lead times for any remaining new-old-stock are measured in months, and in many cases, NIKON no longer accepts orders for these references. For facilities operating NIKON steppers and scanners beyond their original service contracts, this creates a structural supply gap that directly threatens production continuity.

DriveKNMS maintains a dedicated inventory program for end-of-life NIKON analog and SPD modules. Our sourcing network spans certified secondary-market suppliers, decommissioned equipment disassembly programs, and direct acquisition from facilities undergoing platform upgrades. Key capabilities for this series include: verified cross-reference matching between legacy and revised part numbers (e.g., 4L990-796 to 4L990-796AN substitution validation), traceability documentation for each unit, and pre-shipment functional verification against NIKON-specified electrical parameters. Customers operating under ISO 9001 or SEMI S2 compliance frameworks receive full test reports and chain-of-custody documentation upon request.

Quality Control for the NIKON Analog Sensor SPD Unit Range

NIKON Analog Sensor and SPD Unit modules present specific quality control challenges due to their precision analog signal chains, multi-layer PCB construction, and sensitivity to electrostatic discharge. DriveKNMS applies a structured test protocol to each unit processed through our facility:

Visual and mechanical inspection: Component-level examination for cold solder joints, damaged SMD passives, corroded connector pins, and PCB delamination. Boards with evidence of prior unauthorized repair are quarantined for engineering review before any further processing.

Power-on parametric test: Each unit is energized at rated supply voltage. Supply current draw, output offset voltage, and noise floor are measured and compared against reference values derived from known-good units and available NIKON service documentation.

Signal chain verification: Analog input stimulus is applied across the specified input range. Output linearity, gain accuracy, and bandwidth (-3 dB frequency) are measured. For SPD units, simulated encoder inputs are used to verify velocity calculation accuracy across the operating speed range.

Thermal cycling: Units intended for long-term spare stock undergo accelerated thermal cycling to identify latent component failures before shipment.

Final calibration check: Where calibration data is available, output scaling is verified against NIKON's specified tolerance bands. Units outside tolerance are either recalibrated or flagged as requiring customer-side calibration upon installation.

For sourcing inquiries, technical questions, or bulk spare parts requirements for NIKON Analog Sensor SPD Unit modules:
