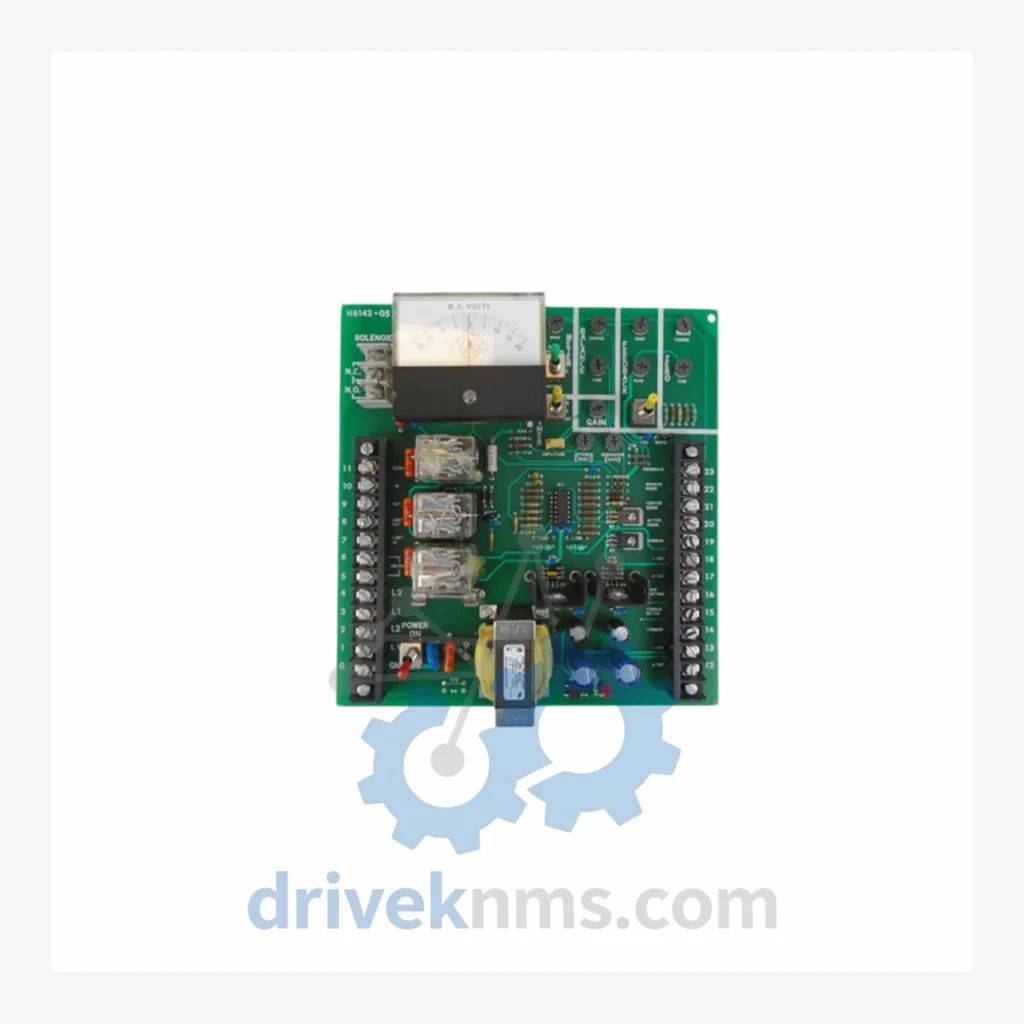

North American H6142-05 DC Voltage Meter PC Board – Obsolete Legacy Spare Part

When a DC voltage metering board fails inside an aging control panel, the consequences extend far beyond a single instrument. In legacy industrial environments — particularly those built around discontinued North American instrumentation platforms — a single failed measurement board can halt production, trigger unsafe operating conditions, and force plant management into an unwanted conversation about full-system replacement. A complete control system overhaul, including engineering, procurement, installation, and recommissioning, routinely runs into the hundreds of thousands of dollars. The H6142-05 is no longer in production. Finding a verified, functional replacement unit is the only path that avoids that cost.

DriveKNMS maintains physical stock of the H6142-05. This is not a catalog listing with a lead time attached. If we list it, we have it.

Technical Specifications

Note: Specific electrical parameters (input voltage range, accuracy class, output signal) are not published here to avoid inaccurate data. Confirmed specifications are provided upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The H6142-05 was designed for an era when industrial instrumentation was built to last decades, not to be replaced on a software upgrade cycle. Plants that integrated North American metering boards into their control infrastructure in the 1980s and 1990s built those systems around the assumption of long service life. That assumption was correct — the hardware has outlasted the manufacturer's support window.

The problem facing maintenance engineers today is not that the equipment is unreliable. It is that when a board does fail, there is no factory channel to replace it. The OEM is no longer producing the H6142-05. Authorized distributors have exhausted their stock. What remains is held by specialist suppliers who understood early that these components would become critical.

In systems where the H6142-05 provides DC voltage feedback to a supervisory controller or SCADA interface, its failure is not an isolated event. It disrupts the measurement chain. Operators lose visibility. Safety interlocks that depend on accurate voltage readings may be compromised. The pressure to replace the entire panel — rather than a single board — becomes difficult to resist.

Holding one or two verified spare H6142-05 boards changes that calculation entirely. The cost of a spare board is a fraction of one hour of unplanned downtime. For facilities running continuous processes, that comparison is not abstract.

How to extend your automation asset life by 5–10 years through strategic spare parts management:

• Audit your installed base now. Identify every North American metering board in your facility before a failure forces the issue. Cross-reference part numbers against current availability.
• Establish a minimum stock level. For critical measurement boards with no modern equivalent, a minimum of two spares per installed unit is a defensible maintenance standard.
• Document firmware and configuration. For boards with programmable parameters, capture the current configuration before a failure makes that information inaccessible.
• Negotiate long-term supply agreements. Specialist suppliers with physical stock can often reserve units against future demand. This is preferable to emergency sourcing under production pressure.
• Defer system replacement, not maintenance. A well-maintained legacy system with verified spare parts availability has a lower total cost of ownership than a premature replacement project. The engineering and validation costs of a new system are rarely recovered in the first five years.

Condition & Reliability Assurance

Obsolete parts sourced from the secondary market carry real risk if the supplier's quality process is inadequate. DriveKNMS applies a five-step inspection protocol to all legacy PC boards before they are offered for sale.

• Step 1 – Visual Inspection: Full board examination under magnification. Solder joint integrity, component seating, and PCB trace condition are assessed. Boards with physical damage are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the most common failure point in legacy boards. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with suspect capacitors are either recapped or rejected.
• Step 3 – Pin and Connector Inspection: All edge connectors and pin headers are examined for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned where necessary.
• Step 4 – Firmware and Configuration Verification: Where the board carries programmable logic or stored parameters, the firmware version is recorded and verified against known-good references where documentation is available.
• Step 5 – Functional Test: Boards are powered and tested under controlled conditions. DC voltage measurement accuracy and signal output are verified before the unit is cleared for sale.

Units that do not pass all five steps are not offered as functional spares. We do not sell boards on the assumption that they will work.

Key Features for System Maintenance

• Drop-in replacement: The H6142-05 is a direct form-fit-function replacement for the original installed unit. No panel modification is required.
• No reprogramming required: In standard configurations, the board operates without reconfiguration after installation. This eliminates the need for specialist engineering involvement in a routine swap.
• No system redesign: Replacing a like-for-like board avoids the validation, documentation, and regulatory review burden that accompanies a system architecture change.
• Immediate availability: Stock is held physically. There is no lead time associated with manufacturing or procurement. Units can be shipped on short notice to support emergency maintenance requirements.
• Documented provenance: Each unit is accompanied by inspection records. This supports maintenance documentation requirements and internal audit trails.

FAQ

What warranty applies to an obsolete part like the H6142-05?
DriveKNMS provides a 90-day warranty on all tested and refurbished units, covering functional failure under normal operating conditions. New Old Stock units are sold with a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of sale.

How do I know the unit is genuine and not a counterfeit?
The H6142-05 is a legacy industrial board, not a high-volume consumer component. Counterfeiting risk is low compared to commodity semiconductors. Each unit we supply is inspected physically and functionally. We provide inspection records and, where available, original packaging documentation.

Should I buy more than one unit?
For any installed system where the H6142-05 is a single point of failure, holding at least one verified spare is a minimum prudent standard. For facilities with multiple installed units or where downtime costs are high, two to three spares per system is a reasonable reserve. The cost of holding spares is predictable. The cost of an unplanned outage is not.

Can you source additional units if I need more than you currently stock?
We maintain active sourcing channels for legacy North American instrumentation. If your requirement exceeds current stock, contact us with your quantity and timeline. We will advise on availability and lead time honestly.

What information do I need to provide when ordering?
Part number (H6142-05), required quantity, destination country, and any specific condition requirements (new old stock preference, tested refurbished acceptable, etc.). If you have the original board available, photographs of the label and connector area are helpful for verification.
