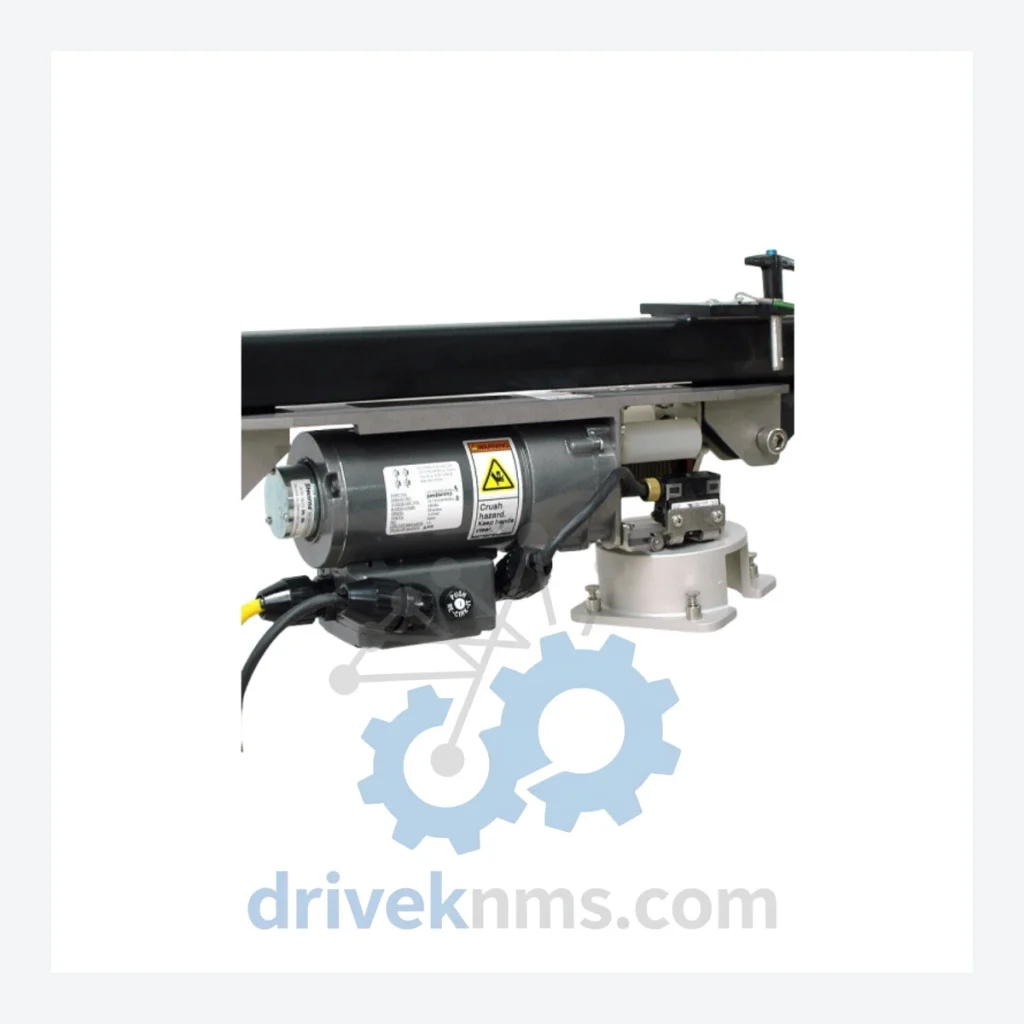

Novellus 02-350345-00 Baldor Electric Wire Cable Winch Modules

Technical Dossier

Product Details And Specifications

Novellus 02-350345-00 Series: Comprehensive Module Range and Technical Overview

The Novellus 02-350345-00 Baldor Electric Wire Cable Winch (45.5 kg rated) is a precision electromechanical drive component deployed across semiconductor fabrication, chemical processing, and heavy industrial automation environments. Novellus Systems — acquired by Lam Research in 2012 — produced a range of motion control and drive assemblies that remain embedded in legacy CVD (Chemical Vapor Deposition) and PVD tool platforms globally. The 02-350345-00 is a sub-assembly winch unit utilizing a Baldor electric motor drive, designed for vertical lift and tension-controlled cable actuation within process chamber handling systems. These units are found in facilities operating Novellus Concept One, Sequel, and Speed platforms, where OEM replacement parts have reached end-of-life status. DriveKNMS maintains verified stock and sourcing channels for this and related Novellus electromechanical assemblies.

The Evolution of Novellus 02-3xxxxx-xx Architecture

Novellus Systems developed its 02-3xxxxx-xx series of electromechanical sub-assemblies across multiple generations of CVD and etch tool platforms from the late 1980s through the mid-2000s. Early iterations used open-loop DC motor drives with manual tension calibration. Subsequent revisions integrated Baldor brushless servo motors with closed-loop encoder feedback, improving repeatability for wafer handling and chamber lid actuation. The 02-350345-00 represents a mature revision in this lineage, incorporating a 45.5 kg (100 lb) rated steel wire cable winch mechanism with integrated motor mount and cable drum. Compatibility issues arise when mixing early-revision cable drums (pre-2000 tooling) with later Baldor motor variants due to shaft diameter and keyway specification changes. Facilities operating mixed-vintage tool fleets must verify the motor-to-drum interface specification before substitution. As Lam Research has formally discontinued Novellus-branded spare parts, the 02-350345-00 has no direct OEM successor; third-party refurbished and new-old-stock (NOS) units are the primary sourcing path.

Novellus 02-3xxxxx-xx Full Catalog & Functionalities (SKU List)

The following SKUs represent verified Novellus electromechanical and drive sub-assembly part numbers commonly associated with the 02-3xxxxx-xx and related series. Each entry reflects a distinct functional role within Novellus CVD/PVD tool platforms:

02-350345-00: Baldor electric wire cable winch assembly, 45.5 kg rated, steel cable drum, vertical lift actuation.
02-350344-00: Baldor electric winch sub-assembly, lower torque variant, 30 kg rated, chamber lid drive.
02-350346-00: Cable winch assembly with integrated brake module, 45.5 kg, safety-rated lift.
02-350300-00: Motor mount bracket assembly, Baldor frame compatible, steel fabricated.
02-350301-00: Cable drum assembly, bare, 45.5 kg rated, steel wire rope interface.
02-350302-00: Encoder feedback module, Baldor servo motor compatible, 1024 PPR.
02-350310-00: Drive motor assembly, Baldor brushless DC, 24V, 200W rated output.
02-350311-00: Drive motor assembly, Baldor brushless DC, 48V, 400W rated output.
02-350320-00: Tension sensor sub-assembly, inline cable load cell, 0–100 kg range.
02-350321-00: Cable guide roller assembly, UHMW-PE lined, steel frame.
02-350330-00: Winch controller PCB, closed-loop servo interface, RS-232 output.
02-350331-00: Winch controller PCB, open-loop variant, analog speed reference input.
02-350340-00: Power supply module, 24VDC/10A, winch drive dedicated.
02-350341-00: Power supply module, 48VDC/8A, high-torque drive variant.
02-350350-00: Complete winch drive kit, includes motor, drum, cable, and controller PCB.
02-350360-00: Replacement steel wire rope, 6×19 construction, 4 mm diameter, 10 m length.
02-350370-00: Limit switch assembly, dual-axis, winch travel end-stop, 24VDC rated.

Sourcing Hard-to-Find & Obsolete Novellus 02-350345-00 Parts

Lam Research formally ceased Novellus OEM spare parts distribution for the 02-3xxxxx-xx series. Facilities operating legacy Novellus Concept One, Sequel, Speed, and Altus tool platforms are dependent on the secondary market for continued operation. DriveKNMS maintains an active procurement network for Novellus electromechanical assemblies, including the 02-350345-00 winch unit, sourced from decommissioned tool teardowns, certified refurbishers, and verified NOS inventory. All units are cross-referenced against original Novellus BOM documentation where available. For facilities requiring long-term maintenance agreements or scheduled spare parts provisioning for aging Novellus tool fleets, DriveKNMS offers consignment stock programs and priority sourcing SLAs. Inquiries for bulk quantities, kitted assemblies, or alternative compatible Baldor motor sub-assemblies are handled directly by our technical sales team.

Quality Control for the Novellus 02-350345-00 Range

Electromechanical winch assemblies in the 02-3xxxxx-xx series require multi-stage inspection prior to redeployment. DriveKNMS applies the following test protocol to all 02-350345-00 units: (1) Visual inspection of cable drum, wire rope, and motor housing for mechanical wear, corrosion, and cable fraying. (2) Motor winding resistance and insulation resistance (IR) test per Baldor motor specification — minimum 1 MΩ at 500 VDC. (3) Encoder signal verification: quadrature output integrity check at rated RPM using oscilloscope. (4) No-load run test: motor energized at rated voltage for 10-minute continuous cycle, monitoring current draw and temperature rise. (5) Load test: winch loaded to 50% rated capacity (22.75 kg), full travel cycle, tension sensor output logged. (6) Brake function test (where applicable): brake engagement and release verified under load. All test data is documented and supplied with each unit on request. Units failing any stage are quarantined and not offered for sale.
