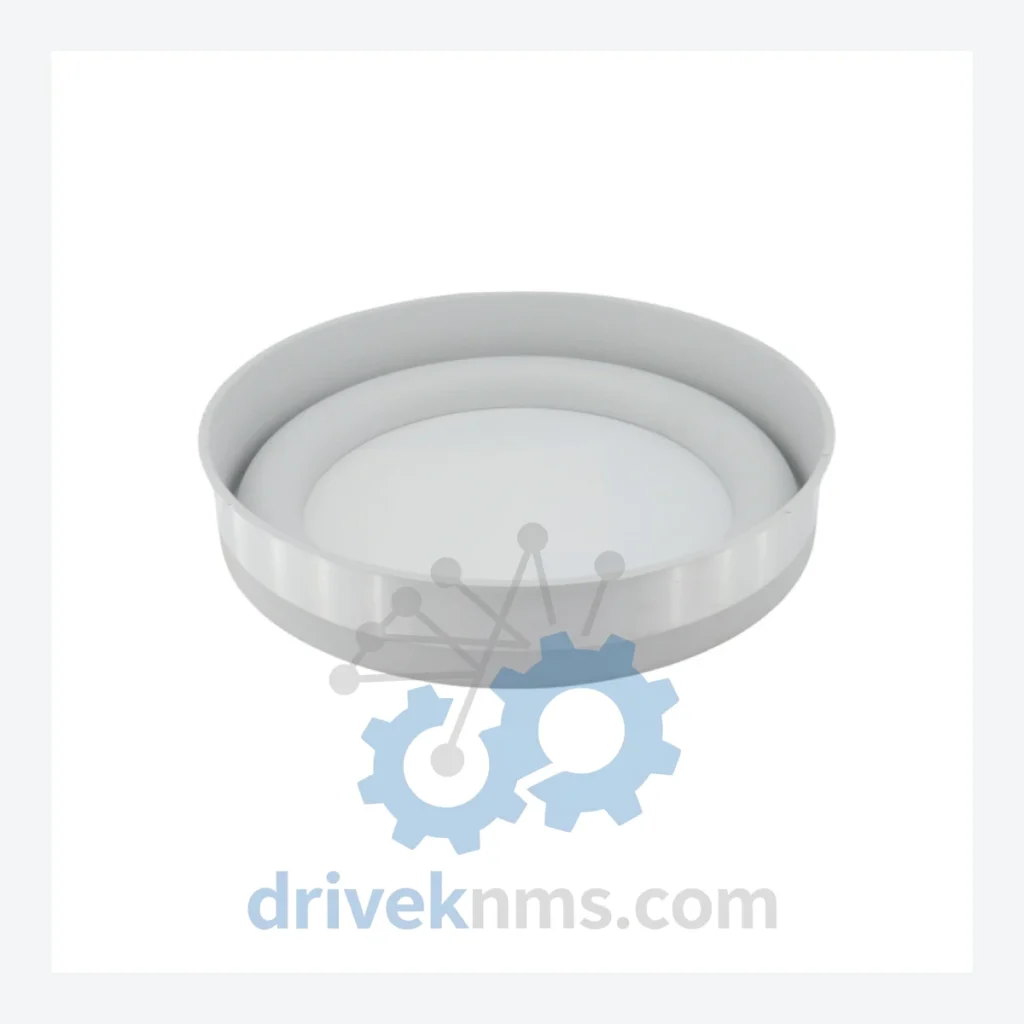

Novellus PVD300 17-260362-00 810-019566-705 Shield Barrel – Obsolete PVD System Spare Part

Technical Dossier

Product Details And Specifications

Novellus PVD300 17-260362-00 810-019566-705 Shield Barrel – Obsolete PVD System Spare Part

When a Shield Barrel fails inside a Novellus PVD300 process chamber, the consequences extend far beyond a single component replacement. The PVD300 platform — a physical vapor deposition system widely deployed in semiconductor fabs and advanced thin-film manufacturing lines — has been out of production for years. A single unplanned downtime event on this tool can halt wafer output for days. Sourcing a replacement through OEM channels is no longer a realistic option. The engineering cost of migrating an entire process recipe to a modern platform — including requalification, process matching, and production validation — routinely runs into the millions of dollars. DriveKNMS maintains verified stock of this exact component. That stock is finite.

Technical Specifications

Note: Electrical and dimensional parameters are not published independently for this consumable/structural component. All specifications should be verified against the original Novellus PVD300 service manual prior to installation.

Solving the Discontinued Hardware Crisis

The Novellus PVD300 was a production workhorse across semiconductor fabs throughout the 1990s and 2000s. Many facilities continue to run these tools today — not out of inertia, but because the process recipes qualified on this platform represent years of engineering investment that cannot be transferred to a new tool without significant cost and risk.

The Shield Barrel is a critical chamber component. It defines the deposition boundary, protects chamber walls from film buildup, and directly affects process uniformity and particle performance. When this part degrades or fails, the chamber cannot be returned to spec without a direct replacement. There is no universal substitute.

Lam Research, which acquired Novellus in 2012, does not actively support PVD300 spare parts procurement. Independent distributors with verified, traceable stock represent the only reliable supply channel for facilities that need to keep these tools running. Extending the operational life of a PVD300 by 5 to 10 years through disciplined spare parts management — rather than committing to a platform migration — is a defensible capital strategy. The math is straightforward: a full tool replacement and process requalification program costs orders of magnitude more than a managed inventory of critical consumables and structural components.

Facilities that have successfully extended PVD300 service life typically maintain a minimum buffer of two to three Shield Barrels per chamber, schedule preventive replacements based on RF hours or deposition cycle counts rather than waiting for failure, and document part traceability to satisfy internal audit requirements.

Condition & Reliability Assurance

Every unit shipped by DriveKNMS goes through a structured 5-step inspection protocol before it leaves our facility:

• Step 1 – Visual and Dimensional Inspection: Physical examination for cracks, deformation, coating delamination, and mechanical damage. Parts that show signs of prior high-temperature stress are quarantined.
• Step 2 – Electrolytic Capacitor Assessment (where applicable): For any associated electronics or control boards, capacitor condition is evaluated. Aged electrolytic capacitors are a primary failure mode in legacy semiconductor equipment and are flagged for replacement before shipment.
• Step 3 – Firmware and Revision Verification: Where the part carries a revision identifier, we cross-reference against known compatible revision levels for the PVD300 platform. Incompatible revisions are not shipped without explicit customer acknowledgment.
• Step 4 – Contact and Pin Corrosion Check: All electrical contacts, connector pins, and mating surfaces are inspected under magnification. Oxidation or corrosion that could affect signal integrity or mechanical fit is addressed before shipment.
• Step 5 – Packaging for Long-Term Storage: Parts intended for spare inventory are packaged with desiccant and ESD protection where applicable, with lot and inspection date recorded on the label.

Key Features for System Maintenance

• Drop-in replacement: This part is sourced to OEM specification. No chamber modification or process re-engineering is required for installation.
• No reprogramming required: The Shield Barrel is a mechanical/structural component. Replacement does not trigger recipe requalification under standard change control protocols (verify with your process engineering team).
• Avoids engineering reconstruction costs: Keeping the PVD300 operational with verified OEM-equivalent spares eliminates the capital expenditure and schedule risk associated with platform migration.
• Traceable sourcing: DriveKNMS provides documentation to support internal procurement and audit requirements.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty against defects in material and workmanship under normal operating conditions. Given the discontinued status of this component, we recommend customers inspect parts upon receipt and install within 12 months of purchase.

How do I know the part is genuine or properly refurbished?
We source from documented supply chains and apply the 5-step inspection protocol described above. Part numbers and cross-references are verified prior to listing. We do not sell parts that cannot be traced to a credible source.

Should I buy more than one unit?
For any facility running active PVD300 chambers, maintaining at least one spare Shield Barrel per chamber is standard risk management practice. Given the scarcity of this part in the secondary market, purchasing a buffer stock now — while verified inventory is available — is a lower-cost option than emergency sourcing during an unplanned outage.

Can you source other PVD300 components?
Yes. Contact us with your full bill of materials or part numbers and we will advise on availability.
