NSK ESA Series Servo Drivers: Comprehensive Module Range and Technical Overview

The NSK ESA series servo drivers are compact, high-performance AC servo amplifiers engineered for precision motion control in demanding industrial environments. Deployed extensively across chemical processing plants, semiconductor fabrication facilities, steel mills, and automated assembly lines, the ESA series represents NSK's core servo drive platform for coordinated multi-axis positioning systems. These units are integrated into CNC machine tools, industrial robots, and high-speed packaging lines where positional accuracy, dynamic response, and long-term reliability are non-negotiable operational requirements. The ESA series supports NSK's proprietary serial communication protocol for encoder feedback and is compatible with standard analog ±10V command inputs, making it interoperable with a broad range of motion controllers and PLCs from third-party vendors.

The Evolution of ESA Series Architecture

The NSK ESA servo driver series was introduced as part of NSK's integrated mechatronics strategy, pairing NSK precision ballscrews and linear guides with matched servo drive electronics. Early ESA variants used analog command interfaces with resolver-based feedback, targeting machine tool OEMs requiring tight integration between mechanical and electrical components. Subsequent generations introduced incremental encoder support and expanded the continuous output current range to accommodate larger servo motor frames. The ESA-Y2020T23 sub-series represents a mid-generation platform with digital parameter configuration via front-panel keypad or RS-232 interface, supporting auto-tuning routines for inertia identification. Later revisions added enhanced regenerative braking circuits and improved EMC filtering to comply with CE and UL certification requirements for export markets. As NSK's product roadmap shifted toward fully digital fieldbus-based drives (EtherCAT, MECHATROLINK-III), the ESA series entered a mature/end-of-life phase. Units manufactured under the ESA-Y2020T23 designation are no longer in active production; however, installed base volumes in Asia-Pacific and European machine tool markets remain substantial, sustaining strong demand for spare and replacement units through specialist distributors.

NSK ESA Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the NSK ESA servo driver series, classified by output capacity and functional variant:

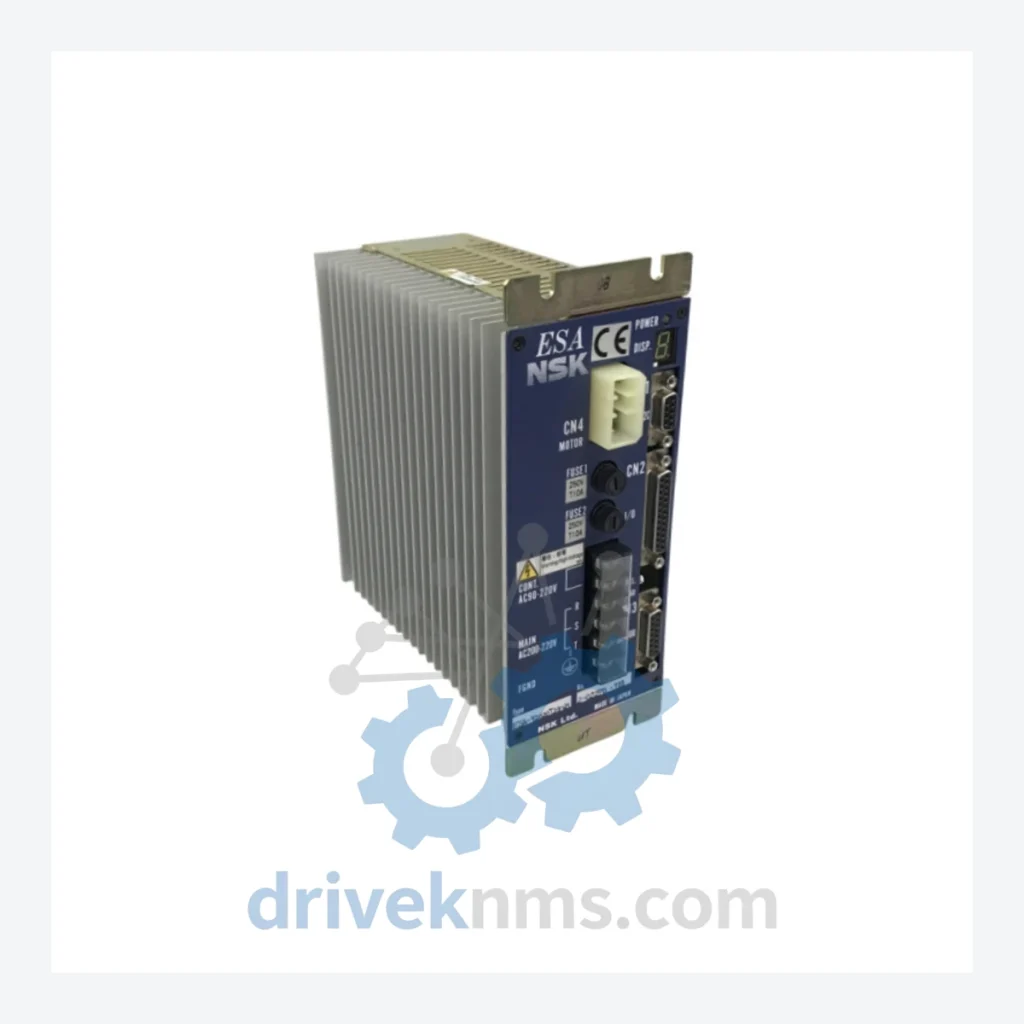

ESA-Y2020T23-21 0240-15510 715-011985-106-B: AC servo amplifier, single-axis, 200V class, 20A continuous output, analog/pulse command input, incremental encoder interface, regenerative resistor built-in.
ESA-Y2010T23-21: 200V class, 10A continuous, single-axis compact servo amplifier, analog ±10V command, standard encoder feedback.
ESA-Y2030T23-21: 200V class, 30A continuous, single-axis, enhanced heat dissipation, for mid-frame servo motors.
ESA-Y2050T23-21: 200V class, 50A continuous, single-axis, external regenerative resistor terminal, high-inertia load applications.
ESA-Y2075T23-21: 200V class, 75A continuous, single-axis, large-frame motor drive, forced-air cooling required.
ESA-Y4020T23-21: 400V class, 20A continuous, three-phase input, single-axis, for high-voltage machine tool spindle applications.
ESA-Y4030T23-21: 400V class, 30A continuous, three-phase input, enhanced dynamic braking circuit.
ESA-Y4050T23-21: 400V class, 50A continuous, three-phase input, external DB resistor terminal, industrial robot joint drive.
ESA-Y2020T23-11: 200V class, 20A, pulse train command variant (step/direction or quadrature), CNC controller interface.
ESA-Y2020T23-31: 200V class, 20A, RS-232/RS-485 serial command variant, multi-drop network configuration.
ESA-Y2010T23-11: 200V class, 10A, pulse train input, compact single-axis, PCB-mount terminal block.
ESA-Y2030T23-11: 200V class, 30A, pulse train input, mid-frame motor, position loop gain auto-tuning.
ESA-Y2020T23-21-R: Regenerative variant of ESA-Y2020T23-21, integrated regenerative resistor, no external resistor required.
ESA-Y2050T23-11: 200V class, 50A, pulse train input, high-speed positioning, electronic gear ratio function.
ESA-Y4020T23-11: 400V class, 20A, pulse train input, three-phase supply, semiconductor equipment axis drive.
ESA-Y4030T23-31: 400V class, 30A, serial command, RS-485 multi-axis network, coordinated motion applications.

Sourcing Hard-to-Find & Obsolete ESA Series Parts

DriveKNMS maintains a dedicated inventory of NSK ESA series servo drivers, including discontinued and hard-to-source variants such as the ESA-Y2020T23-21 0240-15510 715-011985-106-B. As the ESA series has entered end-of-life status with NSK's factory, OEM replacement supply has ceased. DriveKNMS sources units through verified secondary market channels, including decommissioned machine tool lines, authorized surplus dealers, and controlled factory overstock. All ESA series units in stock are catalogued by full part number, including sub-revision codes (e.g., 0240-15510, 715-011985-106-B), ensuring exact-match replacement without compatibility risk. For facilities operating NSK-driven CNC machines or assembly robots with no viable upgrade path, DriveKNMS provides long-term lifecycle extension support: unit exchange programs, repair-and-return service, and consignment stocking agreements for high-volume maintenance contracts.

Quality Control for the ESA Series Range

Each NSK ESA series servo driver processed by DriveKNMS undergoes a structured inspection and functional test protocol before dispatch. Visual inspection covers power terminal condition, encoder connector pin integrity, front-panel keypad functionality, and capacitor condition assessment (ESR measurement on DC bus capacitors). Functional testing is performed on a dedicated servo drive test bench using matched NSK servo motors: units are powered at rated input voltage, commanded through full-speed and torque-limit cycles, and verified for encoder signal fidelity, current loop response, and fault code behavior. For units with serial communication variants (ESA-Y2020T23-31, ESA-Y4030T23-31), RS-485 communication integrity is validated using protocol analyzers. Regenerative circuit functionality is tested under resistive load conditions to confirm braking chopper operation within specification. Units that fail any test stage are quarantined and documented; no non-conforming units are dispatched.
