ASYST D4EX34222 IFB-ZWT03A 150X/0.90 WD 0.29 BD 8045R2-1-ES Interface Board: Supply Continuity Strategy for Semiconductor Fab Procurement

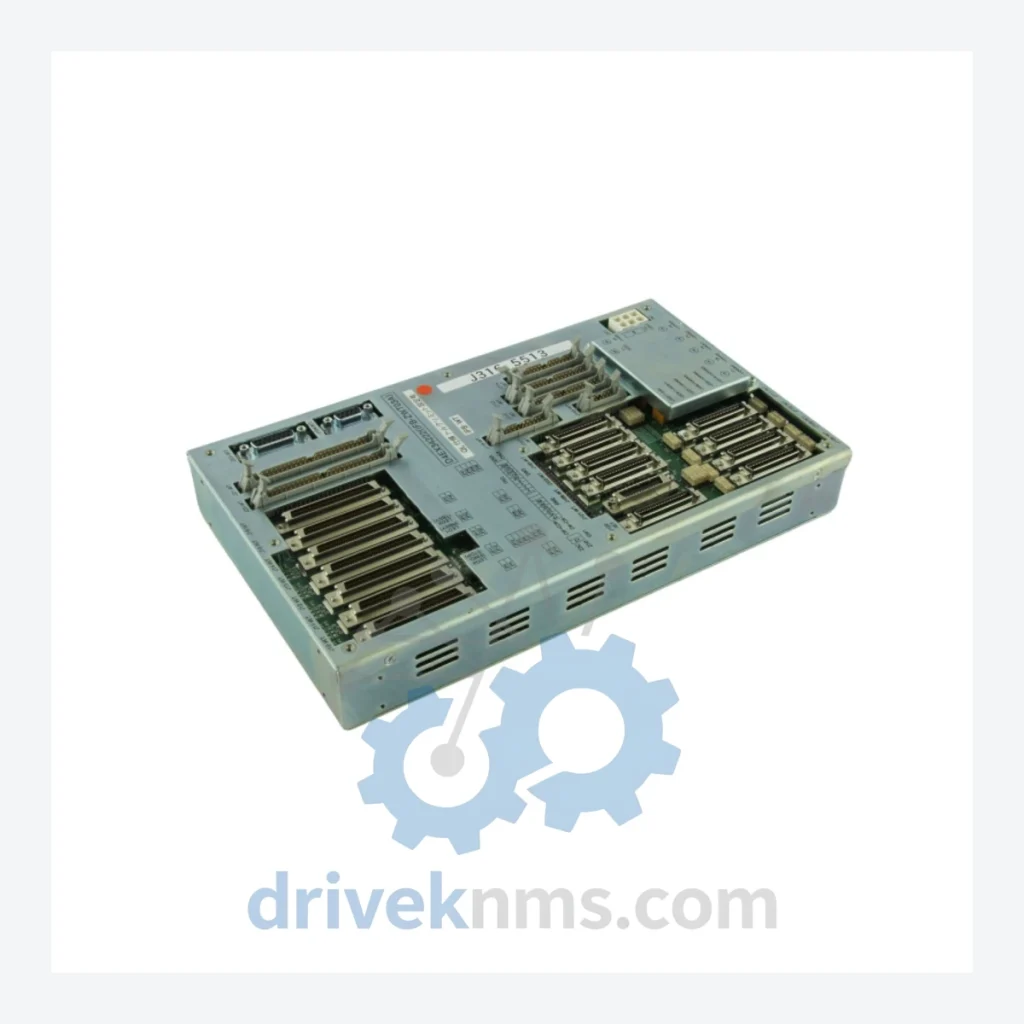

The ASYST D4EX34222 IFB-ZWT03A is a precision interface board designed for ASYST Technologies' 150X-series wafer handling and SMIF (Standard Mechanical Interface) automation platforms. These systems are embedded in 200mm and legacy 300mm semiconductor fabrication lines across foundries, OSAT facilities, and advanced packaging plants globally. The D4EX34222 board — configured at 150X/0.90 WD 0.29 BD 8045R2-1-ES — handles signal routing, axis coordination, and real-time communication between the SMIF pod handler and the host fab control system.

This part is classified as a high-scarcity, lifecycle-critical spare. ASYST Technologies was acquired and its product lines consolidated; OEM channel support for legacy SMIF boards has been substantially reduced. Procurement teams sourcing this board face lead times of 8–24 weeks through standard channels — or indefinite delays if the OEM has formally discontinued the line. The procurement risk is asymmetric: a single unplanned downtime event on a SMIF-equipped tool can cost $50,000–$200,000 USD per day in lost wafer throughput.

Procurement Specifications

Cost Optimization & TCO Analysis

Procurement managers evaluating the D4EX34222 IFB-ZWT03A face a binary cost decision: source a verified spare now at a known price, or absorb the unplanned downtime cost when the installed board fails without a replacement on the shelf.

Spare Parts Turnover Rate: For SMIF-class interface boards operating in 24/7 fab environments, the mean time between failures (MTBF) is typically 3–7 years under normal operating conditions. However, boards in high-vibration or thermally stressed environments degrade faster. A turnover cycle of 4–5 years per tool is a reasonable planning baseline. Facilities running 10+ SMIF tools should maintain a minimum buffer of 2 boards.

Total Cost of Ownership (TCO) Breakdown:

• OEM new (if available): High unit cost, 8–24 week lead time, minimum order requirements often apply.
• Spot market (unverified): Lower upfront cost, but counterfeit risk, no warranty, and no functional test documentation — creating audit liability.
• DriveKNMS verified supply: Competitive unit pricing, functional test report included, 12-month warranty, and documented chain of custody — reducing total procurement risk cost by an estimated 30–60% versus unverified spot market sources.

Unplanned downtime on a single SMIF tool running 200mm wafers at a typical fab costs $80,000–$150,000 USD per day. A verified spare board at a fraction of that cost is not an expense — it is a risk hedge with a calculable ROI.

Quality Compliance & Logistics

Every D4EX34222 IFB-ZWT03A unit shipped by DriveKNMS undergoes a structured verification process before dispatch:

• Visual Inspection: PCB trace integrity, component seating, connector pin condition, and conformal coating assessment.
• Functional Bench Test: Board powered and tested against known-good reference signals where test fixtures are available.
• ESD Packaging: Anti-static bag, foam cushioning, and rigid outer carton — compliant with JEDEC JESD625 handling standards.
• Documentation Package: Commercial invoice, packing list, country of origin certificate, and functional test report provided with every shipment.

Logistics: DHL Express, FedEx International Priority, and UPS Worldwide available. Standard transit: 3–5 business days to North America and Europe; 5–8 business days to Southeast Asia and the Middle East. Air freight tracking provided at time of dispatch. Multi-currency payment accepted: USD, EUR, CNY, HKD.

Warranty Terms: 12 months from date of shipment. Covers manufacturing defects and functional failure under normal operating conditions. Does not cover physical damage post-installation or misapplication.

Why Procurement Managers Choose Us

Sourcing Network: DriveKNMS maintains an active sourcing network across North America, Europe, Japan, and Southeast Asia for legacy semiconductor automation components. For discontinued ASYST parts, we cross-reference multiple surplus channels, OEM service depots, and decommissioned fab equipment lots to locate verified units.

Part Number Validation: Misidentification of interface board revisions is a common and costly procurement error. Our technical team cross-checks part numbers against revision history, firmware compatibility notes, and known substitution matrices before confirming a quote. If the D4EX34222 revision you require is unavailable, we will identify the correct functional equivalent and document the substitution rationale.

Financial Compliance: All transactions are supported by formal commercial documentation suitable for corporate ERP systems, customs clearance, and internal audit requirements. We support wire transfer (T/T), Letter of Credit (L/C), and PayPal for qualified orders. Tax invoices and VAT documentation available on request.

Repeat Order Management: For facilities with ongoing SMIF maintenance programs, DriveKNMS offers blanket order arrangements and priority allocation on limited-stock items. Contact us to discuss annual supply agreements.

FAQ

Q: What are your payment terms?
A: Standard terms are 100% T/T in advance for first-time orders. For established accounts, 30% deposit with balance before shipment is available. L/C at sight accepted for orders above $5,000 USD.

Q: What is your warranty policy?
A: 12 months from shipment date. Defective units are replaced or refunded after return and inspection. RMA process initiated within 48 hours of claim submission.

Q: Do you offer volume discounts?
A: Yes. Quantity pricing is available for orders of 3+ units. Submit your RFQ with quantity requirements for a tiered price schedule.

Q: Can you source this part if it is not currently in stock?
A: Yes. We operate on a locate-and-source model for hard-to-find parts. Typical sourcing timeline for legacy ASYST boards is 5–15 business days. We will provide a sourcing status update within 48 hours of RFQ receipt.

Q: What if the part does not work after installation?
A: Contact us within the warranty period. We will issue an RMA, arrange return logistics, and dispatch a replacement or issue a refund upon inspection confirmation.

Q: Are export licenses required?
A: Most legacy PCB assemblies of this type do not require export licenses for standard commercial destinations. We will advise on any jurisdiction-specific requirements at the time of order.
