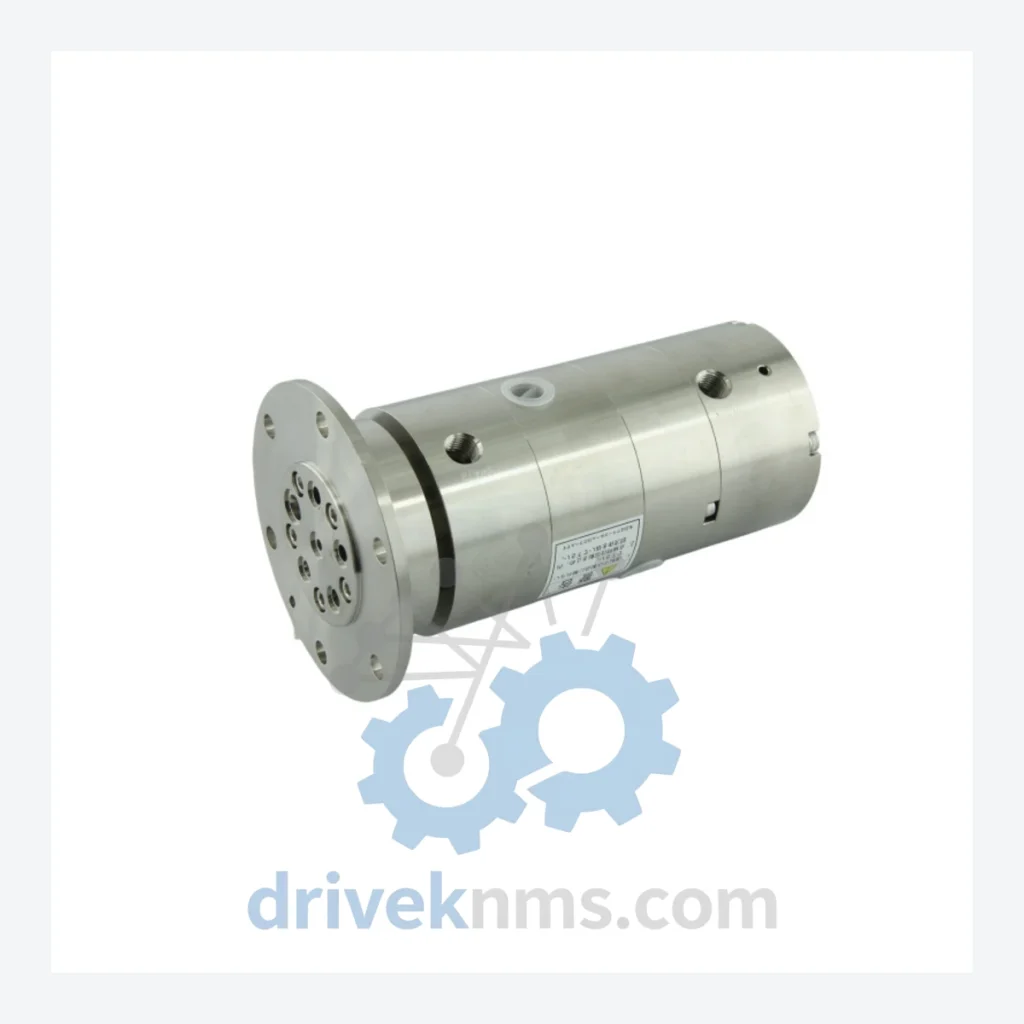

FR-0013800 3D10-100844-11 E12002441 9413J968-R2 Rotary Union – Obsolete Industrial Spare Part

Technical Dossier

Product Details And Specifications

FR-0013800 3D10-100844-11 E12002441 9413J968-R2 Rotary Union – Obsolete Industrial Spare Part

When a rotary union fails on a legacy production line, the consequences are rarely limited to a single component. For plant managers operating aging machinery built around discontinued fluid or pneumatic transfer assemblies, the failure of one rotary union can trigger a cascade: unplanned downtime, emergency procurement at premium cost, and — in the worst case — a forced capital expenditure to replace an entire machine platform that was otherwise performing within specification. A full line upgrade driven by a single worn coupling is not an engineering decision. It is a procurement failure.

DriveKNMS holds verified stock of the FR-0013800 / 3D10-100844-11 / E12002441 / 9413J968-R2 rotary union. This part is no longer in active production. Sourcing it through standard distribution channels is not reliable. Our inventory exists specifically to protect operations that cannot afford to wait.

Technical Specifications

Solving the Discontinued Hardware Crisis

Rotary unions are precision components embedded deep within machine architectures — paper mills, printing presses, injection molding machines, CNC machining centers, and continuous casting lines all depend on them for uninterrupted media transfer. When the OEM discontinues a specific rotary union model, the machine it serves does not automatically become obsolete. The machine may have years of productive life remaining. The problem is purely one of parts availability.

The FR-0013800 assembly, cross-referenced under 3D10-100844-11, E12002441, and 9413J968-R2, represents exactly this scenario. The original manufacturer has ceased production. Authorized distributors have exhausted their pipeline stock. Plant engineers who need this part are left with three options: pay a specialist sourcing firm (DriveKNMS), attempt a non-OEM substitution that may void machine warranties and introduce dimensional incompatibility, or initiate a capital replacement project that carries a price tag measured in hundreds of thousands — sometimes millions — of dollars.

The math is straightforward. A verified OEM rotary union, even sourced at a premium from specialist inventory, costs a fraction of one percent of a full machine replacement. For operations running 24/7 shifts, the cost of a single day of unplanned downtime frequently exceeds the total cost of maintaining a strategic spare parts inventory for five years.

Extending the service life of an asset by 5 to 10 years through disciplined spare parts management is not a compromise strategy. It is the financially responsible one. The capital freed by deferring a replacement cycle can be redeployed into process improvements, workforce development, or capacity expansion — all of which generate returns. A forced upgrade driven by parts unavailability generates none.

Condition & Reliability Assurance

Obsolete rotary unions sourced from secondary markets carry real risks. Age-related degradation is not always visible on the surface. DriveKNMS applies a structured 5-step quality assurance process to every unit before it leaves our facility:

• Step 1 – Visual and Dimensional Inspection: External housing, port threads, and sealing surfaces are examined for corrosion, impact damage, and dimensional deviation from OEM specification.
• Step 2 – Seal and O-Ring Assessment: Internal sealing elements are inspected for elastomer degradation, compression set, and chemical compatibility with the intended media. Aged seals are replaced with compatible materials where required.
• Step 3 – Bearing Condition Verification: Rotational resistance and axial play are measured. Bearings showing wear beyond acceptable tolerance are replaced before dispatch.
• Step 4 – Port and Flow Path Integrity Check: Internal passages are inspected for blockage, corrosion deposits, and cross-contamination between media channels on multi-passage units.
• Step 5 – Firmware and Marking Verification (where applicable): Part markings, revision codes, and any embedded identification are cross-checked against known OEM records to confirm authenticity and revision status.

Units that do not pass all five stages are not offered for sale. There is no partial pass.

Key Features for System Maintenance

• Drop-in Replacement: This unit is sourced to OEM specification. It installs into the original mounting position without modification to the host machine, eliminating the need for engineering rework or custom adapter fabrication.
• No Reprogramming Required: Rotary unions are mechanical components. Replacement does not trigger control system reconfiguration, PLC parameter changes, or software re-commissioning — the machine returns to service immediately after installation.
• Avoids Engineering Reconstruction Costs: Substituting a non-OEM rotary union of different geometry or flow rating requires machine redesign. Using the correct OEM part number eliminates this cost entirely.
• Protects Warranty and Certification Status: For machines operating under insurance, regulatory, or customer audit requirements, maintaining OEM part numbers preserves compliance documentation integrity.
• Strategic Stockpiling Value: Given the discontinuation status of this part, procurement of multiple units now — while verified stock exists — is a measurable risk reduction action. The cost of holding spare inventory is fixed. The cost of emergency sourcing in a future breakdown scenario is not.

FAQ

Q: What warranty applies to an obsolete rotary union?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on confirmed New Old Stock (NOS) units. Warranty terms are confirmed in writing at the time of sale.

Q: How do I know the unit is genuine OEM and not a counterfeit?
A: Every unit is cross-checked against OEM part markings, revision codes, and dimensional records prior to dispatch. Documentation of the verification process is available upon request. We do not source from unverified brokers.

Q: Should I buy more than one unit?
A: For any discontinued component installed in critical machinery, holding a minimum of one spare unit on-site is standard risk management practice. For high-utilization equipment or multi-machine installations using the same part, two to three units is a defensible position. Once our current stock is exhausted, resourcing this specific part number cannot be guaranteed.

Q: Can you source additional units if I need more than you currently stock?
A: We maintain active sourcing networks for obsolete industrial components. Contact us with your quantity requirement and timeline, and we will provide a sourcing assessment within 48 hours.

Q: What is the lead time?
A: In-stock units ship within 3–5 business days after order confirmation and payment. Express dispatch options are available for urgent breakdown situations.
