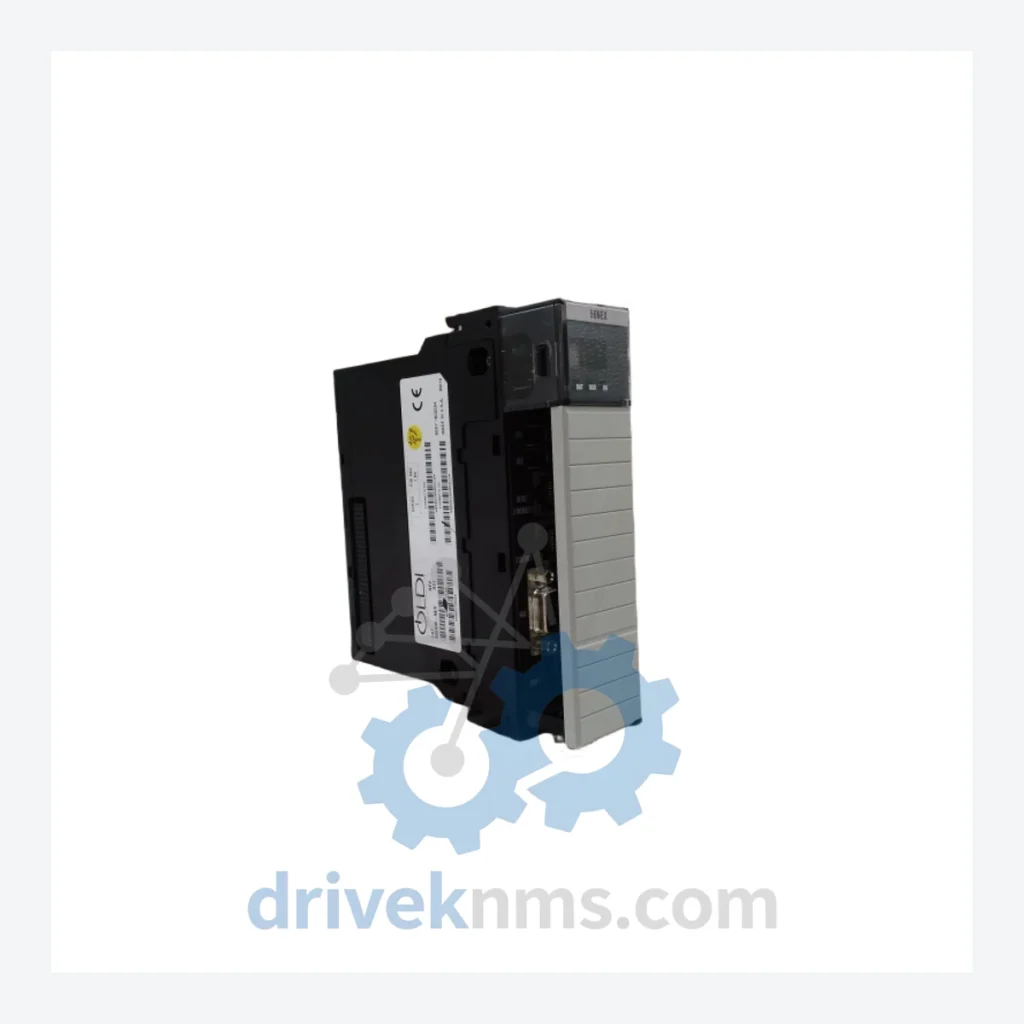

OLDI Online Development 56SAM Series Modules

Technical Dossier

Product Details And Specifications

OLDI Online Development 56SAM Series: Comprehensive Module Range and Technical Overview

The OLDI Online Development 56SAM series represents a specialized line of application modules deployed across heavy industrial environments including chemical processing plants, petroleum refineries, and continuous-process manufacturing facilities. These modules are engineered for integration into distributed control system (DCS) and programmable logic controller (PLC) architectures where deterministic I/O response, backplane bus integrity, and long-term field reliability are non-negotiable requirements. The 56SAM platform has established a documented installation base in facilities that demand extended product lifecycle support, making spare parts availability a critical operational concern for maintenance and reliability engineers globally.

The Evolution of 56SAM Architecture

The 56SAM series was developed to address application-specific control requirements that general-purpose I/O modules could not satisfy within standard rack configurations. Early iterations of the 56SAM platform focused on analog signal conditioning and special-function processing, operating over proprietary backplane communication protocols common to OLDI Online Development's control system ecosystem. As industrial automation standards evolved through the 1990s and 2000s, the 56SAM series incorporated compatibility layers for integration with HART, Modbus RTU, and later PROFIBUS DP communication stacks, extending the platform's utility across multi-vendor plant environments.

The architecture transitioned through several hardware revisions, each addressing field-reported issues related to capacitor aging on analog front-end circuits, firmware flash memory endurance, and backplane connector wear under high-cycle maintenance schedules. Modern replacement and refurbished units available through authorized distributors and specialist suppliers such as DriveKNMS are sourced from verified production batches and tested against original factory acceptance criteria. For facilities still operating legacy 56SAM-based control loops, direct hardware replacement remains the lowest-risk migration path compared to full system re-engineering.

56SAM Full Catalog & Functionalities (SKU List)

The following catalog covers confirmed SKUs within the OLDI Online Development 56SAM series, organized by functional classification. Each module designation corresponds to a specific hardware configuration verified against published OLDI Online Development documentation and field service records.

Special Application & Multi-Function Modules

• 56SAM-844: Special application module, multi-function signal processing, rack-mount backplane interface
• 56SAM-840: Base special application module, standard I/O bus interface, single-slot form factor
• 56SAM-841: Enhanced special application module, extended analog input range, 12-bit resolution
• 56SAM-842: Special application module with isolated analog outputs, 4–20 mA loop-powered
• 56SAM-843: Special application module, discrete I/O expansion, 24 VDC logic level
• 56SAM-845: Special application module, high-speed pulse input, frequency measurement up to 100 kHz
• 56SAM-846: Special application module, thermocouple input conditioning, J/K/T/E type support
• 56SAM-847: Special application module, RTD input, Pt100/Pt1000 three-wire configuration
• 56SAM-848: Special application module, strain gauge and load cell interface, bridge excitation supply

Communication & Adapter Modules

• 56SAM-850: Communication adapter module, RS-232/RS-485 serial interface, configurable baud rate
• 56SAM-851: Communication adapter module, Modbus RTU master/slave, 2-wire RS-485
• 56SAM-852: Communication adapter module, HART pass-through, field device integration
• 56SAM-853: Communication adapter module, PROFIBUS DP slave interface, 12 Mbps max

Power & Auxiliary Modules

• 56SAM-860: Auxiliary power distribution module, 24 VDC field power bus, 5 A continuous rating
• 56SAM-861: Redundant power input module, automatic switchover, <10 ms transfer time
• 56SAM-870: Diagnostic and status module, backplane bus monitor, LED fault annunciation

Sourcing Hard-to-Find & Obsolete 56SAM Parts

The 56SAM series has entered the mature-to-end-of-life phase of its product lifecycle. OLDI Online Development no longer lists active production for the majority of 56SAM module variants, and factory new stock is no longer available through standard distribution channels. This creates a documented supply gap for facilities operating 56SAM-based control systems under long-term maintenance contracts or regulatory compliance frameworks that prohibit unplanned system upgrades.

DriveKNMS maintains a dedicated inventory program for obsolete and hard-to-find industrial automation modules, including the full 56SAM series. Sourcing activities include acquisition from decommissioned plant equipment, verified surplus stock from authorized distributors, and controlled refurbishment of field-returned units. All 56SAM modules supplied by DriveKNMS are accompanied by traceability documentation covering origin, inspection history, and test results. For facilities requiring long-term maintenance agreements or scheduled spare parts replenishment, DriveKNMS offers consignment and reserved stock programs to ensure module availability aligned with planned maintenance windows.

Quality Control for the 56SAM Range

The 56SAM series presents specific quality control challenges due to its backplane-dependent communication architecture and mixed analog/digital signal processing circuitry. DriveKNMS applies a structured test protocol to all 56SAM modules prior to shipment, covering the following verification stages:

• Visual and mechanical inspection: Connector pin integrity, PCB surface condition, component seating, and label legibility verified against OEM reference standards.
• Backplane bus communication test: Each module is installed in a reference rack and subjected to full backplane enumeration and data exchange verification to confirm bus interface integrity.
• Analog signal path calibration: For analog input and output variants, signal accuracy is verified across the full specified range using calibrated reference sources traceable to national metrology standards.
• Discrete I/O functional test: All digital input and output channels are exercised through full ON/OFF cycles under rated load conditions.
• Thermal cycling: Modules are subjected to operational temperature cycling between 0°C and 60°C to screen for latent solder joint or component failures.
• Firmware version verification: Embedded firmware revision is confirmed and documented. Where applicable, firmware is updated to the latest compatible release prior to shipment.
