OMRON 3G8F5-CLK01 Controller Link Support Board – Obsolete CS/CJ Series Spare Part

Technical Dossier

Product Details And Specifications

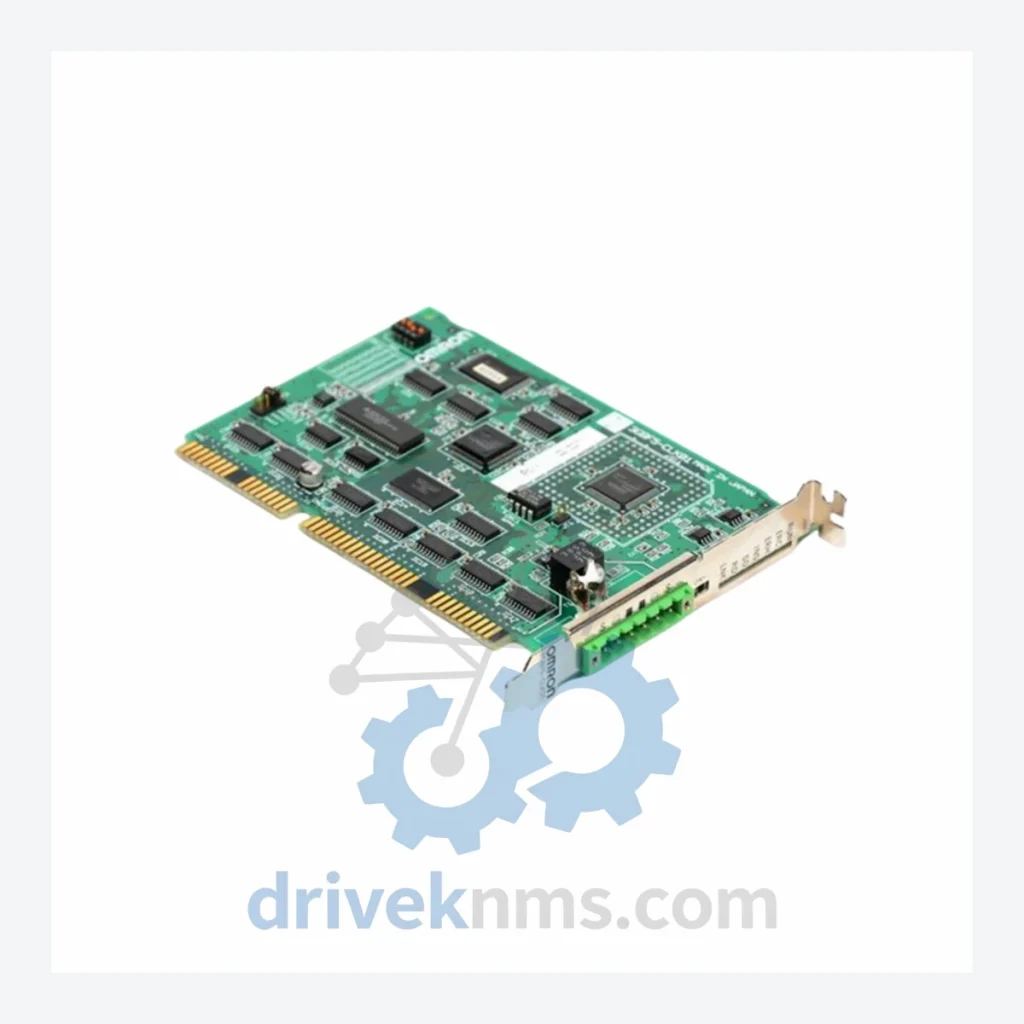

OMRON 3G8F5-CLK01 Controller Link Support Board – Obsolete CS/CJ Series Spare Part

When a Controller Link Support Board fails in an aging OMRON CS/CJ-series control system, the consequences extend far beyond a single module. The 3G8F5-CLK01 is the communication backbone that ties distributed PLCs together across the Controller Link network. Without it, the entire peer-to-peer data exchange between nodes collapses. For facilities running production lines built around OMRON's CS1/CJ1 architecture, sourcing a replacement is not a procurement task — it is a crisis management exercise. A forced migration to a current-generation network infrastructure can carry engineering, rewiring, and recommissioning costs well into six figures, with production downtime compounding the loss daily.

DriveKNMS maintains verified physical stock of the 3G8F5-CLK01. This is not a lead-time quotation. This is available inventory, held specifically for facilities that cannot afford to wait.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are drawn from known product documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The OMRON Controller Link network was a mature, deterministic communication solution deployed extensively in automotive assembly, food processing, pharmaceutical batch control, and semiconductor handling facilities throughout the 1990s and 2000s. The 3G8F5-CLK01 support board allowed host PCs and supervisory systems to participate directly in the Controller Link data link layer — a function that has no direct equivalent in OMRON's current EtherNet/IP or EtherCAT product lines without significant architectural changes.

Facilities still operating on CS1 or CJ1 PLCs face a structural problem: OMRON's current support lifecycle for these platforms has narrowed, and the 3G8F5-CLK01 is no longer available through authorized distribution channels. When this board fails, the options are stark — locate a genuine replacement unit, or commit to a full network migration that touches every node, every cable run, and every piece of supervisory software on the line.

For plant managers and maintenance engineers responsible for assets with 10–20 years of remaining mechanical life, the calculus is straightforward. A single verified spare board, procured and held on-site, eliminates the single largest risk factor in the system's remaining service life. The cost of that spare is a fraction of one day of unplanned downtime.

Extending automation asset life by 5–10 years through critical spare management:

• Identify single-point-of-failure components. The 3G8F5-CLK01 is exactly this type of component. There is no hot-swap redundancy in a standard Controller Link topology. One failed board stops all inter-node communication.
• Procure before failure, not after. Post-failure sourcing of discontinued parts on the open market is slower, more expensive, and carries higher counterfeit risk. A planned procurement from a verified supplier with physical stock is the only reliable strategy.
• Hold a minimum of one cold spare per network segment. For lines running three shifts, consider two. The carrying cost is negligible against the replacement cost of the surrounding infrastructure.
• Document firmware and configuration baselines. Before any board swap, ensure the Controller Link configuration — node addresses, data link tables, routing tables — is fully documented and backed up. This eliminates the risk of a hardware fix becoming a software recovery exercise.
• Negotiate a maintenance window for proactive replacement. If the installed board is original and has been in service for over 15 years, scheduled replacement during a planned shutdown is lower risk than waiting for in-service failure.

Condition & Reliability Assurance

Discontinued hardware sourced from secondary markets carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every unit before it is offered for sale.

1. Visual and mechanical inspection. Full examination of the PCB surface, connector pins, and board edge for physical damage, corrosion, or evidence of prior repair work.
2. Electrolytic capacitor assessment. Boards of this generation are susceptible to capacitor aging — bulging, leakage, and ESR drift. Each unit is inspected for these failure modes. Units with compromised capacitors are not offered for sale.
3. Pin and connector integrity check. All edge connectors and header pins are inspected for oxidation, bending, and contact resistance issues that would cause intermittent communication faults.
4. Firmware and label verification. Where applicable, firmware revision markings and product labels are cross-referenced against known genuine OMRON production records to screen for counterfeit units.
5. Functional verification. Units are powered and tested for basic operational response where test infrastructure permits. Condition grade is clearly stated in the product listing and quotation.

Key Features for System Maintenance

• Drop-in replacement. The 3G8F5-CLK01 installs into the same slot and uses the same driver and configuration software as the original board. No hardware modifications to the host system are required.
• No reprogramming of PLC logic required. Controller Link node addresses and data link tables reside in PLC memory, not on the support board. A board swap does not require changes to ladder logic or data link configuration.
• Avoids engineering reconstruction costs. Migrating from Controller Link to a current network protocol requires new hardware at every node, new cabling, updated SCADA/HMI drivers, and full recommissioning. A spare 3G8F5-CLK01 defers that cost indefinitely.
• Preserves validated process configurations. In regulated industries — pharmaceutical, food, automotive — a network migration triggers revalidation requirements. Maintaining the existing hardware architecture avoids this compliance burden entirely.

FAQ

What warranty applies to a discontinued part?
DriveKNMS provides a 90-day warranty against defects in the unit as supplied. Given the discontinued status of this part, we recommend customers treat the purchased unit as a working spare and procure a second unit for long-term cold storage.

How do I confirm the unit is genuine and not counterfeit?
Every unit we supply has passed our 5-step inspection protocol, including label and firmware verification against known OMRON production references. We provide full traceability documentation with each shipment. If you require additional third-party inspection or testing, we can accommodate that request prior to shipment.

Should I buy more than one unit?
For any facility where this board represents a single point of failure on a critical production line, yes. The cost of a second unit held in climate-controlled storage is a fixed, one-time expense. The cost of a second sourcing exercise in an emergency — with no guarantee of availability — is open-ended. For lines running continuous operations, a minimum of two units is the standard recommendation.

What is the lead time?
Units in stock ship within 2–5 business days of order confirmation, subject to export documentation requirements. Contact us to confirm current availability before placing an order.

© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
