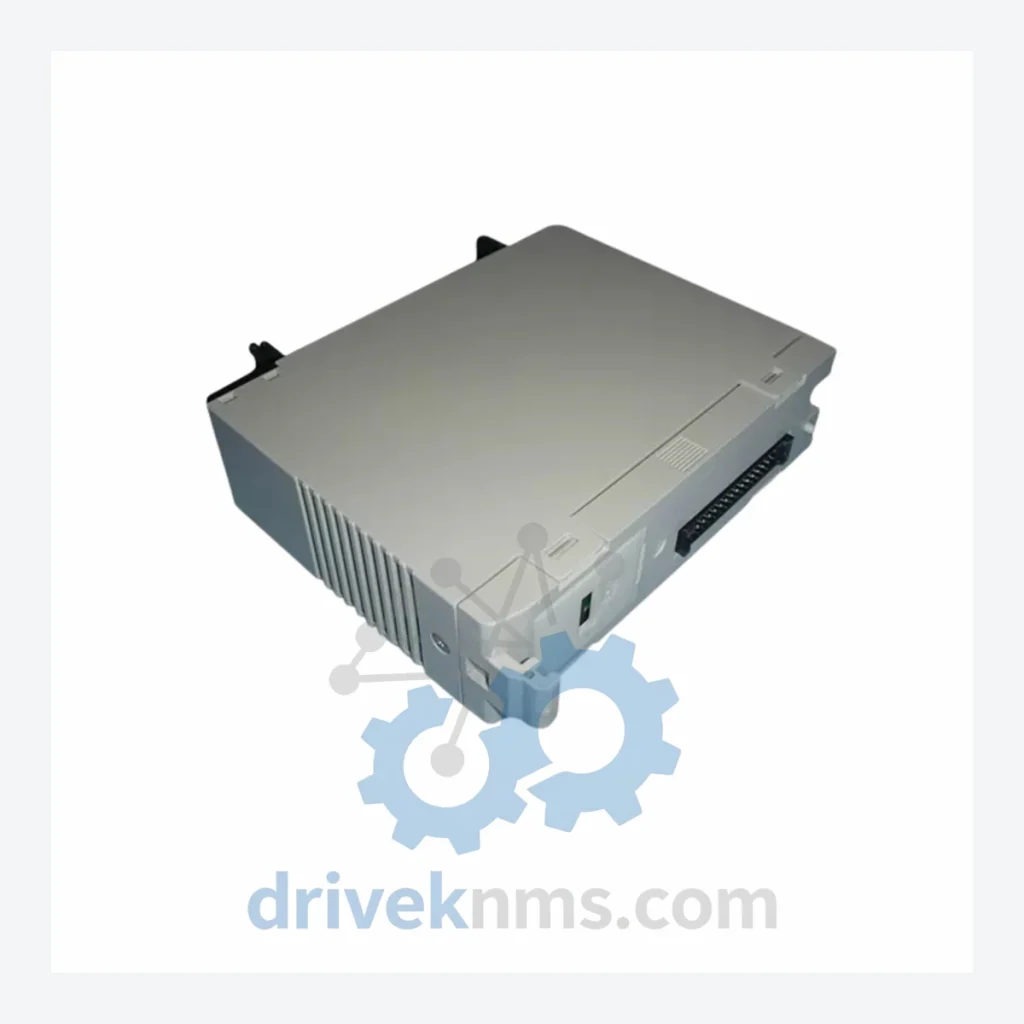

OMRON C200H-OC224 Output Unit – Obsolete C200H Series Spare Part

Technical Dossier

Product Details And Specifications

OMRON C200H-OC224 Output Unit – Securing Your Legacy PLC Assets Against Unplanned Downtime

When a single output unit fails on a production line built around the OMRON C200H PLC platform, the consequences are rarely limited to the cost of the part itself. A full system migration — replacing the C200H rack, CPU, I/O modules, and rewriting ladder logic — routinely runs into six or seven figures when engineering hours, commissioning time, and lost production are factored in. The C200H-OC224 is a transistor output unit that has been officially discontinued by OMRON, yet it remains a load-bearing component in thousands of active manufacturing cells across automotive, food processing, pharmaceutical, and discrete manufacturing facilities worldwide.

DriveKNMS maintains verified inventory of the C200H-OC224 specifically to serve plant engineers and procurement managers who are not ready — or not funded — to retire a functioning control architecture. Securing a qualified spare now is not a procurement luxury; it is a risk management decision.

Technical Specifications

Note: Electrical parameters are stated based on published OMRON documentation. DriveKNMS does not fabricate or estimate specifications. For parameters not listed, please consult the original OMRON C200H Hardware Reference Manual.

Solving the Discontinued Hardware Crisis

The OMRON C200H platform was one of the most widely deployed mid-range PLC families of the 1990s and early 2000s. Its modular rack architecture, combined with OMRON's CX-Programmer compatibility layer, made it the backbone of countless automated lines that are still running profitably today. The C200H-OC224 output unit sits at the interface between the PLC's logic and the physical actuators — solenoids, relays, motor starters — that drive production.

Because OMRON has ceased manufacturing this module, the only supply path is through distributors and specialist traders who have maintained bonded or warehouse stock. The risk of sourcing from unverified channels is real: counterfeit or improperly refurbished output units can introduce intermittent faults that are extraordinarily difficult to diagnose and can damage connected field devices.

For plant managers facing pressure to modernize, the financial case for maintaining the C200H platform with genuine spare parts is straightforward. A verified C200H-OC224 unit, properly installed, can extend the productive life of an existing control system by 5 to 10 years — deferring a capital expenditure that, when fully costed (new PLC hardware, I/O rewiring, software migration, operator retraining, and production downtime during cutover), rarely comes in under $150,000 USD for a mid-complexity line. The spare part cost is a rounding error by comparison.

The C200H-OC224 is commonly found in systems that also include the C200H-CPU42, C200H-BC101, and various C200H analog and special I/O modules. If your facility operates any of these components, a proactive spares strategy covering the full I/O layer is strongly advisable.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step QA process to all obsolete and legacy units before dispatch:

1. Visual & Physical Inspection: Full examination of the PCB, connector pins, and housing for corrosion, mechanical damage, or evidence of prior field failure. Units with pin corrosion or burn marks are rejected at this stage.
2. Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in legacy output modules. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with equivalent-spec components or quarantined.
3. Firmware & Label Verification: The module's revision marking and any embedded firmware identifiers are cross-referenced against OMRON's published revision history to confirm compatibility with target CPU firmware versions.
4. Functional Output Test: Each output channel is exercised under load to verify switching integrity and confirm that no channels are latched, shorted, or open-circuit.
5. Final Documentation: A QA record is issued with each unit, confirming the inspection steps completed and the condition grade assigned (New Old Stock, Tested Refurbished, or Tested Used).

Condition grade and any observed cosmetic wear are disclosed in full prior to order confirmation. There are no surprises after delivery.

Key Features for System Maintenance

• Drop-in Replacement: The C200H-OC224 installs directly into any C200H-compatible I/O rack slot without hardware modification. No rewiring of the field terminal block is required if replacing a like-for-like unit.
• No Reprogramming Required: The C200H CPU recognizes the output unit automatically upon rack power-up. There is no firmware flashing, address reconfiguration, or ladder logic modification needed for a standard replacement.
• Avoids Engineering Reconstruction Costs: Substituting a non-equivalent output module — or migrating to a different PLC platform — requires engineering validation, updated P&IDs, and potentially new safety assessments. A genuine C200H-OC224 eliminates all of these costs.
• Global Logistics: Units are dispatched via DHL Express or FedEx International Priority with full export documentation, commercial invoice, and packing declaration. Typical transit time to major industrial hubs is 3–7 business days.
• Multi-Currency Payment: USD, EUR, CNY, and HKD accepted. T/T bank transfer, PayPal, and trade finance arrangements available for qualified buyers.

FAQ

Q: What warranty applies to an obsolete part like the C200H-OC224?
A: DriveKNMS provides a 12-month warranty on all units dispatched, covering functional failure under normal operating conditions. The warranty period and specific terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from traceable channels — original equipment decommissions, authorized distributor excess stock, or bonded warehouse holdings. Our QA process includes label and revision verification. We do not source from anonymous spot markets.

Q: Can I order multiple units for long-term spares holding?
A: Yes. Bulk orders receive priority allocation from available stock. For facilities with multiple C200H lines, we recommend a minimum of two C200H-OC224 units per line as a strategic buffer. Contact us to discuss volume pricing and staged delivery schedules.

Q: What is your return and exchange policy?
A: Units that fail to function as described upon receipt may be returned within 14 days for exchange or full refund. Return shipping is covered by DriveKNMS for confirmed DOA (dead on arrival) cases. Units damaged by incorrect installation are not covered under warranty.

Q: Do you carry other C200H series modules?
A: Yes. DriveKNMS maintains stock across the C200H I/O range including CPU units, power supply modules, analog I/O, and communication units. Submit your full BOM or parts list for a consolidated quotation.
