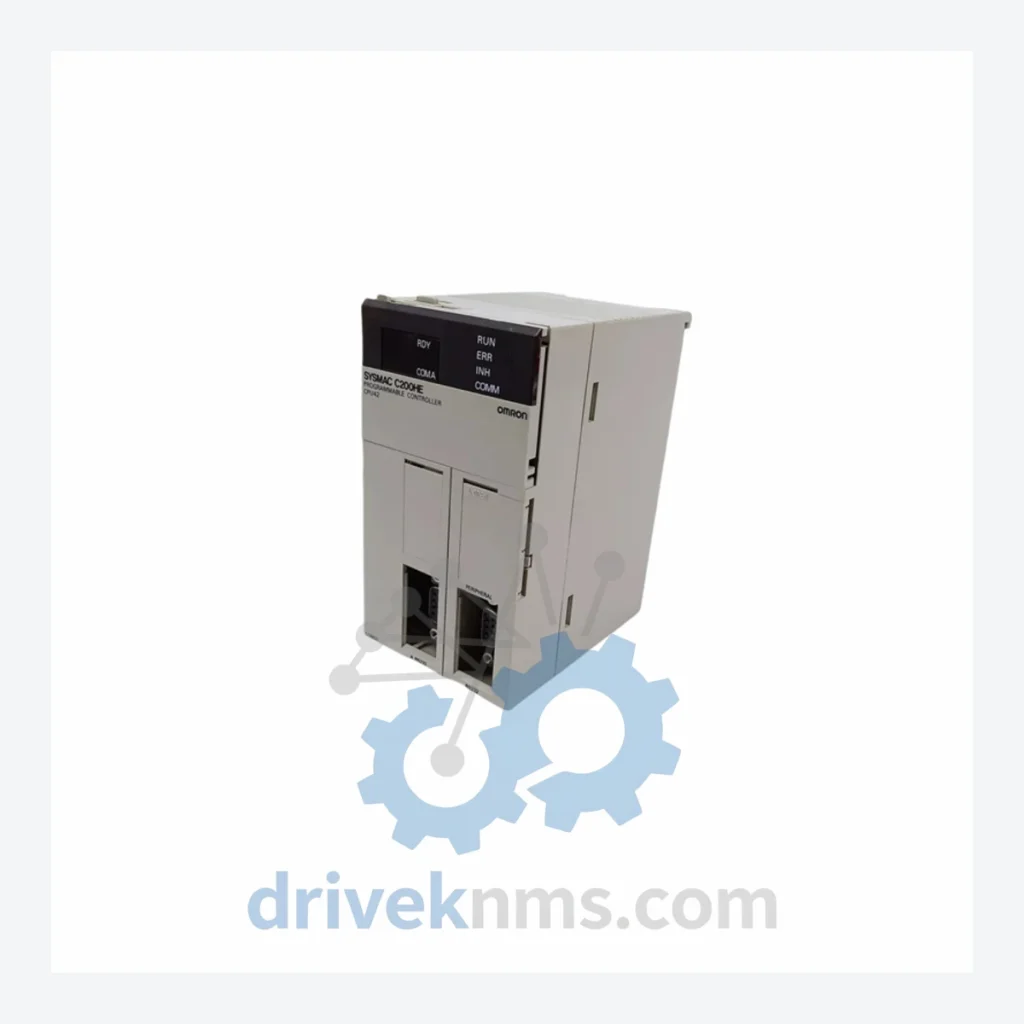

OMRON C200HE-CPU42 CPU Unit – Obsolete C200H Series Spare Part

Technical Dossier

Product Details And Specifications

OMRON C200HE-CPU42 CPU Unit – Obsolete C200H Series Spare Part

When the CPU module at the heart of your OMRON C200H-series control system fails, the consequences extend far beyond a single line stoppage. A full system migration — new PLC platform, re-engineering of ladder logic, I/O rewiring, operator retraining, and production downtime — routinely costs manufacturing operations between $200,000 and $2,000,000 USD depending on system complexity and line criticality. The C200HE-CPU42 and its companion communications module C200HW-C0M02-V1 have been discontinued by OMRON, making verified physical stock the only viable path to keeping these assets operational. DriveKNMS maintains sourced inventory of this unit for plant engineers and maintenance managers who cannot afford to gamble on system retirement timelines.

Technical Specifications

Note: Electrical parameters such as program memory capacity and I/O point counts are not published here to avoid inaccuracy. Please contact us with your specific configuration requirements for verification.

Solving the Discontinued Hardware Crisis

The OMRON C200H platform was deployed extensively throughout the 1990s and early 2000s across automotive assembly, food processing, pharmaceutical packaging, and semiconductor fabrication facilities. Many of these installations remain in active production today — not because the technology is preferred, but because the cost and risk of migration outweigh the cost of maintenance. The C200HE-CPU42 is the processing core of these systems. Without it, the entire rack — including all I/O modules, communication cards, and field wiring — becomes inoperable.

OMRON officially discontinued the C200H series and has directed users toward the CJ2 and NX platforms. However, the engineering effort required to migrate a mid-size C200H installation to a modern platform typically involves 6–18 months of project time, significant capital expenditure, and production risk during cutover. For plant managers operating under tight capital budgets or managing assets with defined end-of-life horizons within 5–10 years, sourcing a verified replacement CPU is the rational decision. One confirmed spare unit on the shelf eliminates the single point of failure that could otherwise force an unplanned, budget-breaking system replacement.

Facilities that have extended C200H system life by 5–10 years through strategic spare parts procurement consistently report the following approach: identify the CPU and communications modules as the highest-risk components (lowest availability, longest lead time), secure at least one verified spare of each, and establish a documented maintenance schedule for electrolytic capacitor inspection on boards manufactured before 2005. This is not a workaround — it is a recognized asset protection strategy used by maintenance engineering teams at major industrial operators globally.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every C200HE-CPU42 unit before it is offered for sale:

Step 1 – Visual and Physical Inspection: Full examination of PCB surfaces, connector pins, and housing for corrosion, mechanical damage, or evidence of prior field failure. Units with pin corrosion or burn marks are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Boards manufactured in the 1990s and early 2000s are subject to capacitor aging. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Capacitors showing degradation are flagged and, where applicable, replaced with equivalent-rated components.

Step 3 – Firmware Version Verification: The CPU firmware version is documented and cross-referenced against known compatibility requirements for C200H I/O modules and communication units. Incompatible firmware versions are disclosed prior to sale.

Step 4 – Functional Power-On Test: Each unit is powered and tested for normal initialization behavior. Units that fail to reach a stable run state are not offered for sale.

Step 5 – Packaging and ESD Protection: Qualified units are packaged in anti-static bags with foam cushioning. Condition grade (New, Refurbished-Grade A, or Tested-Used) is clearly stated on the product documentation accompanying each shipment.

Key Features for System Maintenance

The C200HE-CPU42 is a direct drop-in replacement for failed units within any compatible C200H rack configuration. No re-engineering of the control panel is required. The replacement procedure follows OMRON's standard CPU swap protocol: power down the rack, remove the failed CPU, seat the replacement unit, restore power, and reload the program from backup media or a connected programming device. There is no requirement to modify field wiring, replace I/O modules, or engage a system integrator for the swap itself.

This characteristic — the ability to restore full system operation without reprogramming or hardware redesign — is the core economic argument for maintaining a spare CPU on site. The alternative, an unplanned system retirement triggered by CPU failure, forces engineering decisions under production pressure, a condition that consistently produces cost overruns and extended downtime. A verified spare eliminates that scenario entirely.

For facilities managing multiple C200H installations, a centralized spare parts strategy — one CPU spare per site or per production zone — provides coverage against simultaneous failures and reduces emergency sourcing lead times from weeks to hours.

FAQ

Q: What warranty applies to a discontinued unit?
A: DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New old-stock units carry a 180-day warranty. Warranty covers failure under normal operating conditions and excludes damage from incorrect installation or electrical overstress.

Q: How do I confirm the unit is genuine and not counterfeit?
A: All units sourced by DriveKNMS are verified against OMRON's original labeling standards, including part number markings, date codes, and board revision identifiers. We provide full traceability documentation upon request. We do not sell units that cannot be verified as genuine OMRON manufacture.

Q: Should I purchase more than one unit?
A: For any facility where the C200H system supports critical production, holding a minimum of one spare CPU is standard practice. Given that secondary market availability of the C200HE-CPU42 continues to decline as installed base units age out, procurement now — while verified stock exists — is preferable to emergency sourcing under production stoppage conditions. Contact us to discuss volume pricing for multi-unit orders.

Q: Can you source other C200H series modules?
A: Yes. DriveKNMS specializes in the full C200H ecosystem including I/O modules, power supply units, and communication cards. Contact us with your complete BOM for availability and pricing.
