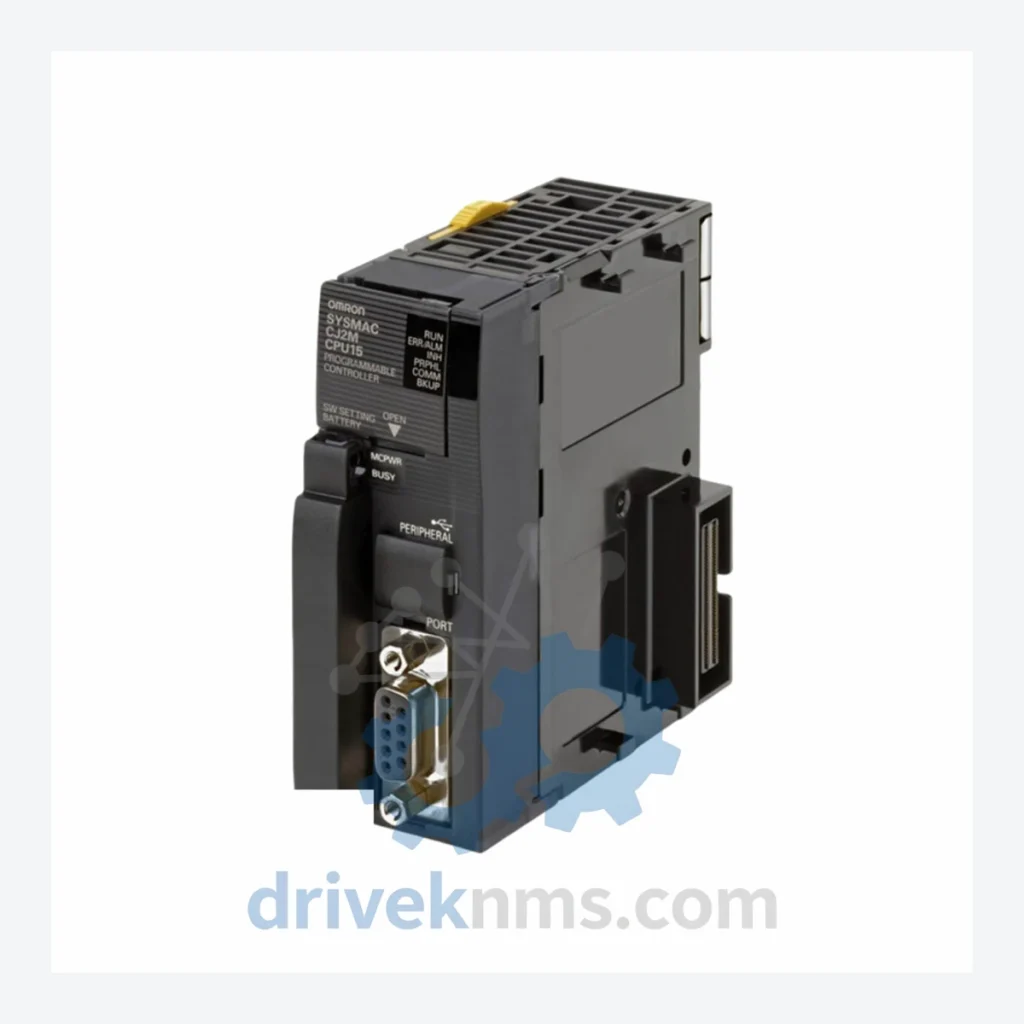

OMRON CJ1M Series Modules

Technical Dossier

Product Details And Specifications

OMRON CJ1M Series: Comprehensive Module Range and Technical Overview

The OMRON CJ1M series is a compact, modular programmable logic controller platform deployed across global heavy industry sectors including petrochemical plants, nuclear facility auxiliary systems, oil refinery process lines, automotive assembly, and water treatment infrastructure. Built on OMRON's CJ-series backplane architecture, the CJ1M platform supports high-speed I/O scanning, structured ladder/function block programming per IEC 61131-3, and seamless integration with OMRON's SYSMAC Studio engineering environment. Its compact form factor — occupying a single DIN-rail mounted rack — makes it the preferred controller for distributed control nodes where panel space is constrained. Installed base globally exceeds several hundred thousand units, with active deployments spanning systems commissioned from the early 2000s through the present decade.

The Evolution of CJ1M Architecture

The CJ1M series was introduced as a successor to OMRON's CPM2A and CQM1H platforms, inheriting the CJ-series high-speed bus (cycle time as low as 0.04 μs/step) while reducing the physical footprint. Early CJ1M units (circa 2001–2005) shipped with CPU11 and CPU12 variants offering 5K–10K program steps and basic built-in I/O. The mid-generation refresh introduced the CPU21, CPU22, and CPU23 variants with expanded memory (up to 20K steps), integrated Ethernet option boards, and enhanced pulse output for motion-adjacent applications.

The CJ1M-CPU13 — the subject of this listing — represents the upper tier of the CJ1M CPU range, offering 20K program steps, 32K words DM area, built-in RS-232C and RS-422A/485 ports, and support for up to 10 expansion units. Compatibility with CJ1-series I/O units is maintained across all CJ1M CPU variants, enabling mixed-generation rack configurations. As of 2024, OMRON has transitioned primary development focus to the NX/NJ series (Sysmac platform), positioning CJ1M as a mature/legacy product line. Long-term spare parts availability is confirmed through OMRON's global distribution network and authorized third-party suppliers.

CJ1M Full Catalog & Functionalities (SKU List)

CPU Units

• CJ1M-CPU11: Compact CPU, 5K steps, 10K words DM, built-in RS-232C ×1
• CJ1M-CPU12: Mid-range CPU, 10K steps, 32K words DM, RS-232C ×1
• CJ1M-CPU13: High-end CPU, 20K steps, 32K words DM, RS-232C + RS-422A/485
• CJ1M-CPU21: CPU with built-in I/O (10 DI / 6 DO), 5K steps, RS-232C ×1
• CJ1M-CPU22: CPU with built-in I/O (10 DI / 6 DO), 10K steps, RS-232C ×1
• CJ1M-CPU23: CPU with built-in I/O (10 DI / 6 DO), 20K steps, dual serial ports

Digital Input (DI) Modules

• CJ1W-ID211: 16-point DC 24V digital input, screw terminal, standard density
• CJ1W-ID231: 32-point DC 24V digital input, MIL connector, high-density
• CJ1W-ID261: 64-point DC 24V digital input, high-density MIL connector

Digital Output (DO) Modules

• CJ1W-OD211: 16-point transistor (NPN) output, 0.5A/point, screw terminal
• CJ1W-OD231: 32-point transistor (NPN) output, MIL connector
• CJ1W-OD261: 64-point transistor (NPN) output, high-density MIL connector
• CJ1W-OC211: 16-point relay output, 2A/point, screw terminal

Analog I/O Modules

• CJ1W-AD081-V1: 8-channel analog input, 1–5V / 4–20mA, 12-bit resolution
• CJ1W-DA041: 4-channel analog output, 1–5V / 4–20mA, 12-bit resolution
• CJ1W-DA08V: 8-channel analog voltage output, ±10V / 0–10V, 12-bit

Communications & Network Adapters

• CJ1W-EIP21: EtherNet/IP communications unit, 100BASE-TX, tag data link support
• CJ1W-PRM21: PROFIBUS-DP master unit, up to 125 slave nodes
• CJ1W-DRM21: DeviceNet master/slave unit, 63-node network support
• CJ1W-SCU21-V1: Serial communications unit, 2× RS-232C ports, protocol macro

Power Supply Units

• CJ1W-PA202: AC power supply, 100–240VAC input, 5VDC/2A + 24VDC/0.8A output
• CJ1W-PD022: DC power supply, 24VDC input, 5VDC/2A output

Sourcing Hard-to-Find & Obsolete CJ1M Parts

DriveKNMS maintains a dedicated inventory program for CJ1M series components, with particular focus on CPU variants and communications units that have reached end-of-production status. For facilities operating CJ1M-based control systems with 10–20 year maintenance horizons, sourcing replacement CPUs, I/O modules, and power supplies through standard distribution channels becomes progressively unreliable as production volumes decline.

DriveKNMS sources CJ1M inventory through decommissioned plant equipment, authorized surplus channels, and direct manufacturer overstock. All units are catalogued by firmware revision and hardware lot code where applicable. For critical spares programs, DriveKNMS can provide multi-unit buffer stock agreements with documented storage conditions (temperature-controlled, ESD-protected warehousing). Customers operating in regulated industries (nuclear auxiliary, pharmaceutical, oil & gas) can request full traceability documentation packages.

Quality Control for the CJ1M Range

Each CJ1M unit processed by DriveKNMS undergoes a structured inspection and functional verification protocol prior to dispatch. The procedure addresses the specific failure modes documented for CJ1M hardware: backplane bus connector wear, capacitor degradation on power supply boards, and firmware version mismatches between CPU and expansion units.

Inspection steps include: visual inspection of PCB, connectors, and housing for physical damage; power-on self-test (POST) verification via CX-Programmer or Sysmac Studio connection; I/O point functional test using calibrated signal sources; serial port loopback test for RS-232C and RS-422A/485 interfaces; and for communications units, network enumeration test confirming node address assignment and data link establishment. Units failing any stage are quarantined and documented. Test records are available upon request for quality-critical procurement.

For sourcing inquiries, technical specifications, or spare parts availability on the OMRON CJ1M series:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
