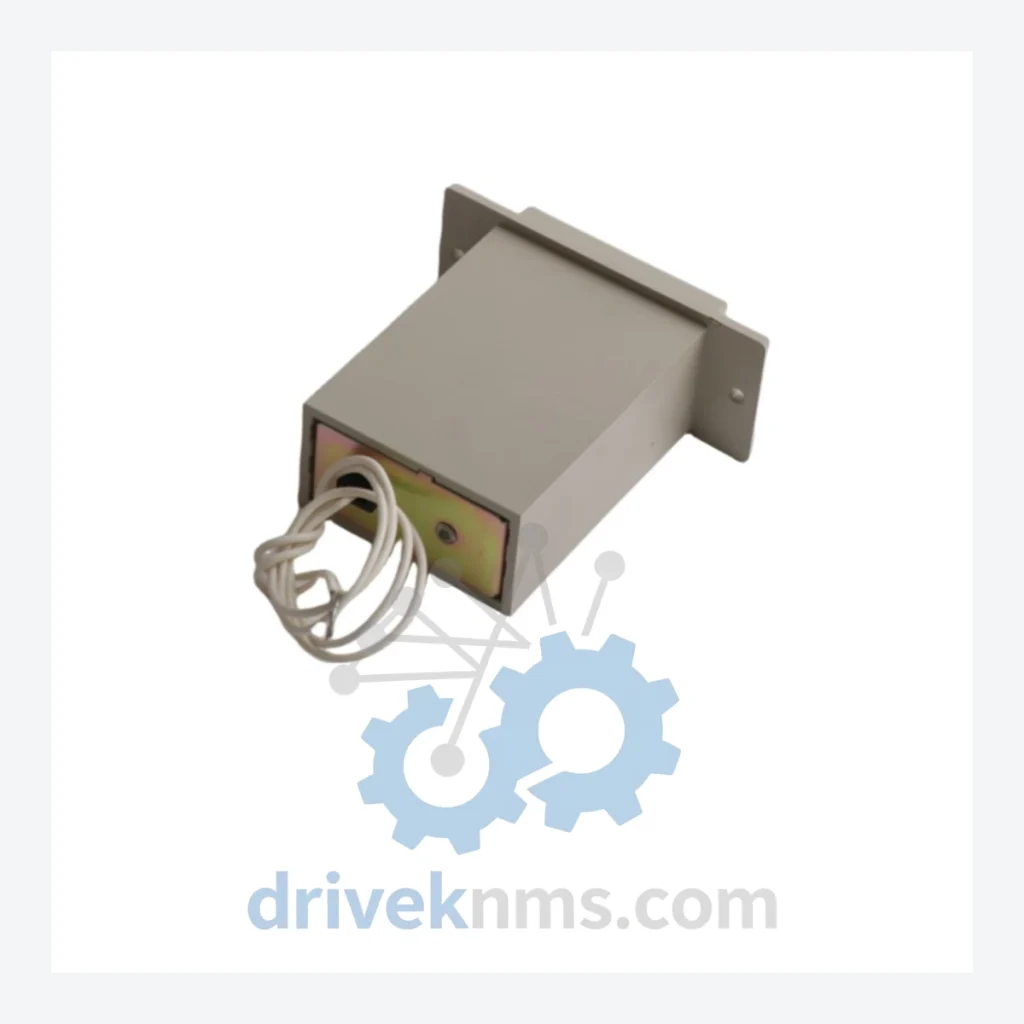

OMRON CSK6-YKW Electromagnetic Counter – Obsolete CSK Series Spare Part

Technical Dossier

Product Details And Specifications

OMRON CSK6-YKW Electromagnetic Counter – Obsolete CSK Series Spare Part

When a single counting module fails on a production line built around legacy OMRON infrastructure, the consequences are not limited to a replacement cost. The real exposure is the forced migration: new PLC platforms, rewiring, re-commissioning, operator retraining, and weeks of unplanned downtime. Conservative estimates place full-line upgrade costs for a mid-scale manufacturing facility in the range of hundreds of thousands to several million dollars — triggered by one discontinued component. The OMRON CSK6-YKW is exactly that kind of component. DriveKNMS maintains verified stock of this discontinued unit specifically to prevent that scenario.

Technical Specifications

Note: Electrical parameters such as coil voltage and contact ratings vary by production batch. DriveKNMS will confirm exact specifications against your unit upon inquiry. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The CSK6-YKW belongs to OMRON's CSK series of electromechanical counters — a product family that served industrial automation for decades before being phased out. These units were embedded into counting and batching circuits across packaging lines, press machines, injection molding equipment, and conveyor systems throughout Asia, Europe, and North America.

The core problem facing maintenance engineers today is not the cost of the part itself. It is the architectural dependency. A CSK6-YKW installed in a 1990s-era machine panel is not a standalone device — it is integrated into a relay logic sequence, mechanically mounted to a DIN rail or panel cutout, and wired to a specific input/output scheme that was designed around its exact footprint and electrical behavior. Replacing it with a modern digital counter requires engineering hours, panel modification, and in many cases, a full re-validation of the machine's safety and production parameters.

For factory management facing capital budget constraints, the calculus is straightforward: sourcing a verified CSK6-YKW spare extends the operational life of the asset by 5 to 10 years at a fraction of the cost of system replacement. This is not a temporary fix — it is a deliberate asset protection strategy used by maintenance teams at facilities where legacy equipment continues to deliver acceptable throughput and where the business case for full modernization does not yet exist.

DriveKNMS specializes in sourcing exactly these components — parts that OEMs no longer manufacture, that distributors have long since cleared from inventory, and that procurement teams struggle to locate through conventional channels.

Condition & Reliability Assurance

Discontinued components carry age-related risks that standard incoming inspection does not address. DriveKNMS applies a 5-step quality process to all obsolete electromechanical parts before shipment:

• Step 1 – Visual and Mechanical Inspection: Housing integrity, dial wheel condition, and mounting hardware are checked against original production standards.
• Step 2 – Electrolytic Capacitor Assessment: Where applicable in associated driver circuits, capacitor aging and leakage are evaluated. Swollen or leaking capacitors are grounds for rejection.
• Step 3 – Contact and Coil Verification: Coil resistance and contact continuity are measured. Units outside tolerance are quarantined.
• Step 4 – Pin and Terminal Corrosion Check: All connection points are inspected under magnification for oxidation, pitting, or contamination that could cause intermittent failure in service.
• Step 5 – Functional Cycle Test: Where test fixtures are available, units are cycled through counting sequences to confirm mechanical and electrical operation before packaging.

Units that do not pass all five stages are not offered for sale. Condition grade (new surplus, tested refurbished, or inspected used) is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The CSK6-YKW retains the original mechanical footprint and wiring interface of the CSK series, allowing direct substitution without panel modification.
• No reprogramming required: Electromechanical counters operate on hardwired logic. Replacing a CSK6-YKW does not require PLC software changes, parameter uploads, or engineering reconfiguration.
• Avoids engineering reconstruction costs: A verified spare eliminates the need to redesign counting circuits around modern alternatives — a process that typically involves electrical engineering labor, panel fabrication, and machine re-validation.
• Preserves production continuity: Stocking one or two CSK6-YKW units as critical spares eliminates the risk of extended downtime caused by a single-point component failure on an otherwise functional machine.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms for specific condition grades are confirmed at the time of sale.

How do I know the unit is genuine and not counterfeit?
All OMRON parts sourced by DriveKNMS are verified against original manufacturer markings, date codes, and construction standards. We do not source from unverified secondary markets. Inspection reports are available upon request for critical applications.

Should I stock multiple units as long-term spares?
For any machine where the CSK6-YKW is a single point of failure, holding a minimum of two units is standard practice in facilities with a formal spare parts management program. Global availability of this part continues to decline. Procurement now, while verified stock exists, is the lowest-risk position.

Can you source other obsolete OMRON parts?
Yes. DriveKNMS maintains sourcing networks for discontinued OMRON components across multiple product families. Submit your full BOM or part list for a consolidated quotation.
