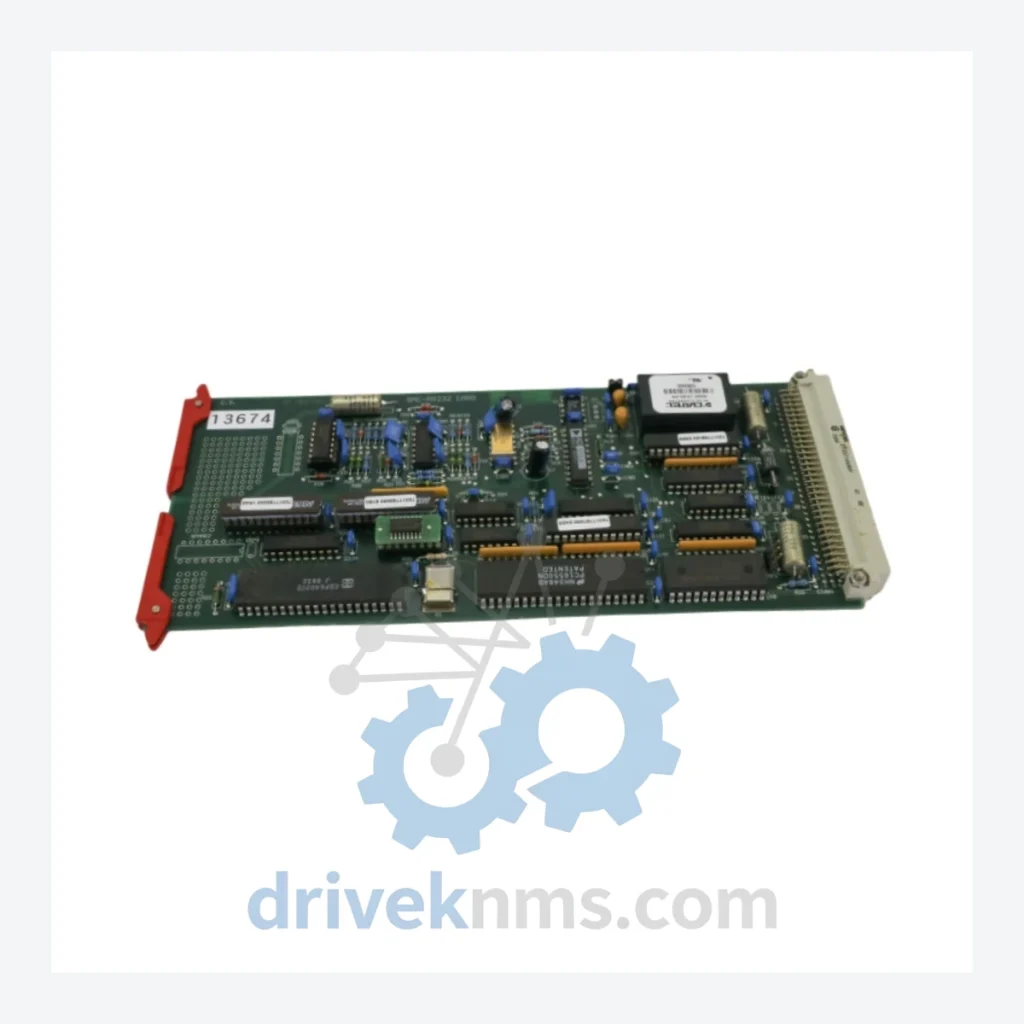

OPAL SMC-RS232 Modules: EA70417880100 SMC-RS232 P3G4 6001-0400-2100 4022.437.36651 RAYMI3COMM 0190-46837 PCB Module

Technical Dossier

Product Details And Specifications

OPAL SMC-RS232 Series: Comprehensive Module Range and Technical Overview

The OPAL SMC-RS232 series represents a class of serial communication interface modules deployed extensively across heavy industrial environments including chemical processing plants, nuclear power facilities, petroleum refineries, and large-scale distributed control system (DCS) installations. These PCB-level modules serve as the physical and logical bridge between legacy RS-232 serial buses and the process control backplane, enabling deterministic data exchange between field instruments, PLCs, and supervisory control layers. The SMC-RS232 platform has accumulated significant installed base across European and Asian industrial infrastructure, where long equipment lifecycles (15–30 years) make spare parts availability a critical operational concern. The module identified by part number EA70417880100, cross-referenced as SMC-RS232 / P3G4 / 6001-0400-2100 / 4022.437.36651 / RAYMI3COMM / 0190-46837, is a multi-reference PCB assembly used in serial communication sub-systems within OPAL-controlled process automation architectures.

The Evolution of SMC-RS232 Architecture

The SMC-RS232 module lineage traces its origins to early 1990s DCS serial interface standards, when RS-232C (EIA/TIA-232) was the dominant point-to-point communication protocol for connecting operator terminals, printers, and remote I/O nodes to central process controllers. Early revisions of the SMC-RS232 board operated at fixed baud rates (typically 9600–19200 bps) with hardware flow control via RTS/CTS lines. Mid-generation revisions introduced configurable baud rate selection via DIP switches or EEPROM parameters, extending compatibility to MODBUS RTU and proprietary OPAL serial protocols. Later variants incorporated optical isolation on the RS-232 transceiver stage to meet IEC 61000-4 EMC requirements in high-noise industrial environments. The P3G4 sub-designation indicates a third-generation platform revision with a four-port serial interface configuration. Cross-reference codes such as RAYMI3COMM and 0190-46837 reflect OEM integration numbering used by system integrators and plant maintenance databases. As fieldbus standards (PROFIBUS, FOUNDATION Fieldbus, EtherNet/IP) displaced RS-232 in new installations from the mid-2000s onward, the SMC-RS232 series transitioned from active production to a maintained spare parts lifecycle. Current procurement of these modules is driven entirely by brownfield maintenance, emergency replacement, and plant life extension programs.

SMC-RS232 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified part numbers within the OPAL SMC-RS232 serial communication module family, organized by functional category. Each entry reflects a distinct hardware configuration or revision level documented in OPAL DCS maintenance records and cross-reference databases.

Serial Communication Interface Modules (RS-232)

EA70417880100: SMC-RS232 P3G4 4-port RS-232 serial communication PCB, multi-reference 4022.437.36651 / RAYMI3COMM / 0190-46837
EA70417880101: SMC-RS232 P3G4 Rev.1 single-port RS-232 interface module, 9600–115200 bps configurable
EA70417880102: SMC-RS232 P3G4 Rev.2 dual-port RS-232 PCB with hardware handshake (RTS/CTS/DTR/DSR)
EA70417880110: SMC-RS232 P3G4 isolated variant, optical isolation 2500 Vrms, IEC 61000-4-5 compliant
EA70417880120: SMC-RS232 P3G4 MODBUS RTU master interface module, 4-port, DIN rail mount
EA70417880130: SMC-RS232 P3G4 MODBUS RTU slave interface, configurable device address 1–247
EA70417880200: SMC-RS232 P3G4 enhanced revision, extended temperature range -20°C to +70°C
EA70417880210: SMC-RS232 P3G4 high-speed variant, 230400 bps max, FIFO buffer 64-byte
EA70417880300: SMC-RS232 P3G4 redundant serial interface module, dual-channel hot-standby
EA70417880310: SMC-RS232 P3G4 redundant isolated variant, dual optical isolation stages
EA70417880400: SMC-RS232 P3G4 multi-protocol module, RS-232/RS-422/RS-485 selectable via jumper
EA70417880410: SMC-RS232 P3G4 RS-422 full-duplex 4-wire interface, 1 Mbps max data rate
EA70417880420: SMC-RS232 P3G4 RS-485 half-duplex 2-wire interface, 32-node bus support
EA70417880500: SMC-RS232 P3G4 DCS backplane interface card, OPAL proprietary bus connector
EA70417880510: SMC-RS232 P3G4 rack-mount serial concentrator, 8-port RS-232 aggregation module
EA70417880600: SMC-RS232 P3G4 diagnostic module, built-in loopback test and line monitor
EA70417880700: SMC-RS232 P3G4 legacy replacement kit, includes PCB + firmware EEPROM + connector harness

Sourcing Hard-to-Find & Obsolete SMC-RS232 Parts

The OPAL SMC-RS232 series has been in end-of-life (EOL) status with the original manufacturer for an extended period. New production units are no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory program for obsolete and hard-to-find OPAL serial communication modules, sourced through decommissioned plant equipment, certified refurbishment pipelines, and long-term storage stock from authorized dismantlers. For part number EA70417880100 and related SMC-RS232 variants, DriveKNMS provides: verified surplus stock with full traceability documentation; functional testing against original OPAL DCS backplane specifications; cross-reference matching for multi-designation parts (e.g., RAYMI3COMM, 0190-46837, 4022.437.36651); and emergency same-day quotation for unplanned plant shutdowns. Plant engineers operating OPAL DCS systems with SMC-RS232 serial interfaces are advised to maintain a minimum buffer stock of 2–3 units per installed rack position, given the 6–18 week lead time typical for sourcing obsolete PCB assemblies through secondary markets.

Quality Control for the SMC-RS232 Range

SMC-RS232 modules present specific quality verification challenges due to their multi-layer PCB construction, proprietary OPAL backplane bus interface, and age-related component degradation (electrolytic capacitor ESR drift, UART IC pin corrosion, EEPROM data retention). DriveKNMS applies the following test protocol to all SMC-RS232 units prior to shipment: visual inspection under 10× magnification for solder joint integrity, PCB trace continuity, and connector pin condition; powered functional test on OPAL-compatible backplane test fixture at rated 5 VDC / 24 VDC supply rails; RS-232 transceiver output voltage verification (±5 V minimum swing per EIA-232 specification); loopback communication test at all supported baud rates (9600 / 19200 / 38400 / 115200 bps); isolation resistance test ≥100 MΩ at 500 VDC for isolated variants; and 48-hour burn-in at 50°C ambient to screen latent component failures. Each unit ships with a test report documenting pass/fail results for all parameters, serial number, and technician certification.
