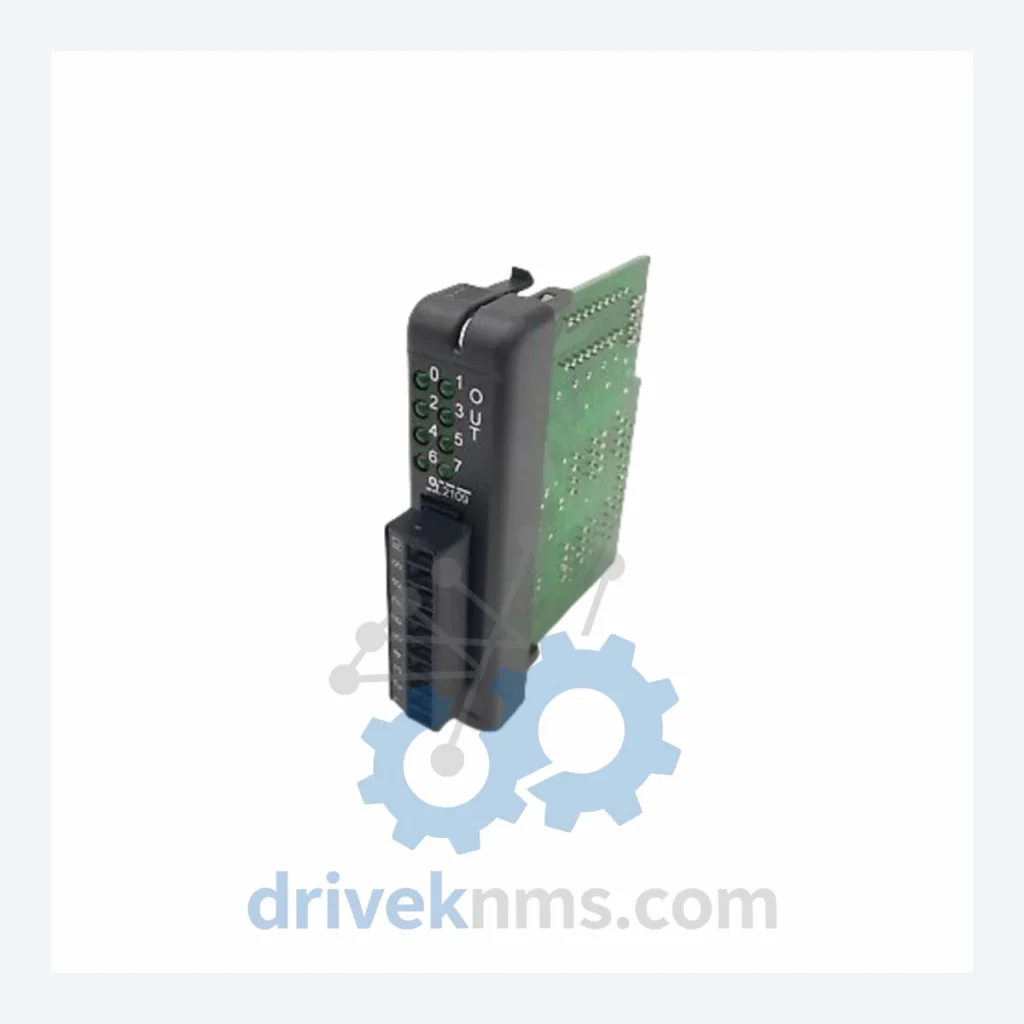

OPTILOGTC OL2109 Output Module – Obsolete Optimation Spare Part

When an output module fails in a legacy Optimation-based control system, the consequences extend far beyond a single line stoppage. A full control system migration — including engineering assessment, new hardware procurement, software re-commissioning, operator retraining, and production downtime — routinely costs manufacturing facilities between $500,000 and $3,000,000 USD. The OPTILOGTC OL2109 is a discontinued output module that remains a load-bearing component in aging process control architectures. DriveKNMS maintains verified stock of this module specifically to protect facilities from that capital exposure.

Technical Specifications

Note: Electrical parameters (voltage ratings, channel count, signal type) are not published here to prevent misapplication. Contact our technical team for specification verification against your system documentation.

Solving the Discontinued Hardware Crisis

The OPTILOGTC OL2109 was designed as an integral output interface within Optimation's modular control architecture. In these systems, output modules handle the final command layer — translating controller logic into physical actuator signals. There is no generic substitute. Replacing this module with a non-native component requires signal mapping reconfiguration, I/O address reassignment, and in most cases, a full control logic audit. That engineering work alone can consume weeks of skilled labor.

Facilities running Optimation legacy systems face a compounding problem: the OEM no longer supports this hardware, authorized distributors have exhausted their stock, and the secondary market supply is finite and shrinking. Each year that passes, the probability of sourcing a verified OL2109 decreases. Procurement teams that delay this decision are not saving money — they are accumulating unquantified risk against a fixed-cost asset.

The practical strategy for asset protection is straightforward: identify every OL2109 position in your system, determine the minimum spare holding required to sustain operations through your planned equipment lifecycle, and secure that quantity now. DriveKNMS exists to support exactly this procurement window.

Condition & Reliability Assurance

Every OPTILOGTC OL2109 unit processed by DriveKNMS passes a structured 5-step quality protocol before it is offered for sale:

• Step 1 – Visual & Mechanical Inspection: Full board examination for physical damage, burn marks, cracked solder joints, and connector pin integrity.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in stored legacy modules. Each unit is evaluated for capacitor condition; units showing ESR degradation are recapped with equivalent-spec components.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for the target system generation. Mismatched firmware is a documented cause of intermittent faults in legacy I/O modules.
• Step 4 – Pin & Connector Corrosion Audit: Backplane connectors and field wiring terminals are inspected and cleaned. Oxidation on contact surfaces is the second most common cause of field failures in stored modules.
• Step 5 – Functional Power-On Test: Units are powered and output channel response is verified under controlled bench conditions prior to packaging.

Units that do not pass all five steps are not offered for sale. Condition grade (New Old Stock or Refurbished) is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in Replacement: The OL2109 installs directly into the existing backplane slot. No hardware modification to the chassis or adjacent modules is required.
• No Reprogramming Required: The controller recognizes the module at the original I/O address. Existing control logic, HMI tag mappings, and historian configurations remain intact.
• Avoids Engineering Reconstruction Costs: Substituting a non-native module triggers a cascade of engineering tasks — signal reconfiguration, safety validation, and recommissioning sign-off. A direct OL2109 replacement eliminates this entirely.
• Extends Asset Lifecycle 5–10 Years: A single verified spare module, held in climate-controlled storage, can sustain a production line through its remaining planned operational life without triggering a capital replacement project. For facilities with a 7–10 year decommission horizon, this is the lowest-cost path to that endpoint.
• Protects Institutional Knowledge: Legacy systems carry embedded process tuning accumulated over years of operation. Forcing a platform migration to resolve a single module failure discards that tuning and introduces process variability risk during recommissioning.

FAQ

Q: What warranty applies to a discontinued module like the OL2109?
A: DriveKNMS provides a 12-month warranty on all units sold, covering functional failure under normal operating conditions. Warranty terms are confirmed in writing on the sales order.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented supply channels. Physical markings, board revision codes, and component profiles are cross-referenced against known-good reference units. We do not source from unverified brokers.

Q: Should I buy one unit or hold multiple spares?
A: For any system where the OL2109 is a single point of failure, holding a minimum of two units is the standard recommendation. One unit covers an immediate failure; the second covers the lead time required to source a replacement after the first is consumed. For facilities with multiple OL2109 positions, a proportional holding strategy should be developed based on criticality ranking of each position.

Q: Can DriveKNMS source additional units if I need more than you have in stock?
A: We maintain active sourcing networks for obsolete industrial hardware. Contact us with your quantity requirement and we will provide a sourcing assessment with realistic lead time and availability data.
