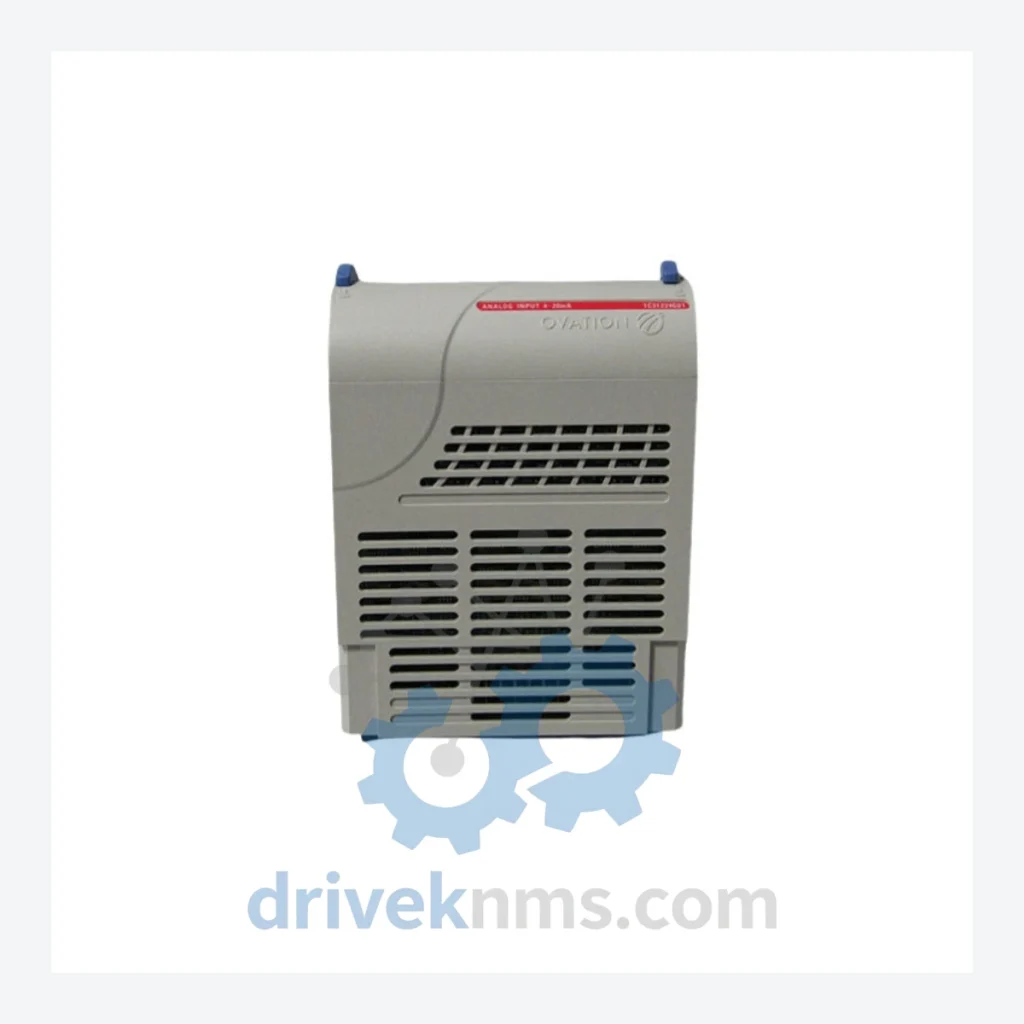

Emerson Ovation Modules | 1C31227G01 8-Channel Analog Input

Technical Dossier

Product Details And Specifications

Emerson Ovation Series: Comprehensive Module Range and Technical Overview

The Emerson Ovation Distributed Control System (DCS) is one of the most widely deployed process control platforms in global heavy industry. Installed across fossil-fuel and nuclear power generation facilities, petroleum refineries, chemical processing plants, and pulp & paper mills, the Ovation architecture provides deterministic, high-availability control for continuous and batch processes. Its modular I/O design, redundant controller topology, and open Ethernet-based communication backbone have made it the reference platform for large-scale plant automation since the mid-1990s. The 1C31227G01 8-Channel Analog Input module is a representative field I/O card within this ecosystem, responsible for acquiring 4–20 mA or voltage signals from field transmitters and delivering scaled engineering-unit values to the Ovation controller over the internal I/O bus.

The Evolution of Ovation Architecture

The Ovation platform originated from Westinghouse Electric's WDPF (Westinghouse Distributed Processing Family) system, which was commercialized in the 1980s. Following the acquisition of Westinghouse's power generation business by CBS and subsequent divestiture, the control systems division was absorbed into Emerson Electric under the Process Management segment, rebranded as Emerson Ovation. The first-generation Ovation 1.x controllers used proprietary backplane buses and RS-485-based field communication. The transition to Ovation 2.x introduced 100 Mbps Ethernet as the primary plant network, replacing the older Ovation Data Highway (ODH). Ovation 3.x further consolidated the I/O subsystem, introducing the Compact Controller (OCR1100) and expanding the supported I/O module count per drop. Current Ovation 3.5+ installations support IEC 61850 for substation integration and OPC UA for historian connectivity. Legacy 1C3xxxx-series I/O modules remain electrically and mechanically compatible with modern Ovation drops via the standard I/O module carrier, making long-term sparing feasible without controller migration. Sites running first-generation WDPF hardware face a harder compatibility boundary; those modules (WDP series) are not interchangeable with 1C3xxxx Ovation cards.

Ovation Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked Emerson Ovation field I/O, controller, power, and communication modules. Each entry reflects the module's primary functional role within an Ovation drop.

Analog Input Modules

• 1C31227G01: 8-channel analog input, 4–20 mA / voltage, 12-bit resolution, single-ended
• 1C31227G02: 8-channel analog input, 4–20 mA, differential input configuration
• 1C31234G01: 8-channel analog input, thermocouple / RTD, cold-junction compensated
• 1C31234G02: 8-channel analog input, RTD only, 3-wire Pt100 configuration
• 5X00106G01: 16-channel analog input, 4–20 mA, high-density I/O carrier required

Analog Output Modules

• 1C31238G01: 4-channel analog output, 4–20 mA, 12-bit DAC, loop-powered
• 1C31238G02: 4-channel analog output, 0–10 V DC, voltage-sourcing configuration
• 5X00119G01: 8-channel analog output, 4–20 mA, high-density format

Digital Input Modules

• 1C31116G01: 32-channel digital input, 24 V DC, sourcing, optically isolated
• 1C31116G02: 32-channel digital input, 120 V AC, optically isolated
• 5X00241G01: 32-channel digital input, 24 V DC, HART-capable field interface

Digital Output Modules

• 1C31129G01: 16-channel digital output, 24 V DC, sourcing, 0.5 A per channel
• 1C31129G02: 16-channel digital output, relay contact, Form C, 2 A rated
• 5X00242G01: 32-channel digital output, 24 V DC, high-density, short-circuit protected

Controller & CPU Modules

• 1C31166G01: Ovation Controller Module (OCM), primary CPU, 133 MHz processor, 32 MB RAM
• 5X00070G01: Ovation Compact Controller (OCR1100), dual-core CPU, integrated Ethernet, redundancy-capable

Power Supply Modules

• 1C31192G01: 24 V DC I/O bus power supply, 10 A output, DIN-rail mount
• 5X00095G01: Redundant power supply module, hot-swap, 24 V DC / 20 A

Communication & Network Modules

• 1C31169G01: Ovation Network Interface Module (NIM), 100 Mbps Ethernet, dual-port
• 1C31222G01: PROFIBUS DP master module, up to 12 Mbps, 126-node support
• 5X00300G01: IEC 61850 communication module, GOOSE messaging, substation integration

Sourcing Hard-to-Find & Obsolete Ovation Parts

A significant portion of the installed Ovation base operates on hardware that Emerson has classified as End-of-Life (EOL) or End-of-Service (EOS). The 1C31xxx module family, including the 1C31227G01, entered the mature phase of its product lifecycle in the early 2010s. Emerson's standard policy is to provide repair and spare parts support for a defined period post-EOL, after which field replacement units must be sourced from the secondary market.

DriveKNMS maintains a dedicated inventory of Ovation spare parts, including EOL 1C3xxxx-series I/O cards, legacy controller modules, and obsolete power supply units. All units are sourced from decommissioned plant inventories, tested prior to listing, and shipped with full traceability documentation. For sites operating under long-term service agreements (LTSAs) or planning a phased migration to Ovation 3.x, DriveKNMS can provide multi-year sparing packages to reduce procurement risk. Customers requiring certified-refurbished units with extended warranty coverage should specify this requirement at the time of inquiry.

Quality Control for the Ovation Range

Ovation I/O modules present specific test challenges due to their integrated backplane bus interface, onboard EEPROM configuration storage, and analog signal conditioning circuitry. DriveKNMS applies the following test protocol to all Ovation modules prior to dispatch:

• Visual inspection: PCB examination for corrosion, damaged connectors, and capacitor condition.
• Backplane bus communication test: Module is seated in a live Ovation I/O carrier and polled by an Ovation controller to verify correct module-type identification and register map response.
• Analog accuracy verification (for AI/AO modules): Each channel is stimulated with a calibrated signal source; output values are compared against the module's published accuracy specification (typically ±0.1% of full scale for 1C31227G01-class cards).
• Digital I/O functional test: All channels are cycled through ON/OFF states; optocoupler isolation resistance is measured.
• EEPROM integrity check: Configuration registers are read and compared against factory defaults; corrupted units are reflashed where firmware is available.
• Burn-in: Modules are powered continuously for a minimum of 24 hours at ambient temperature before final inspection.
