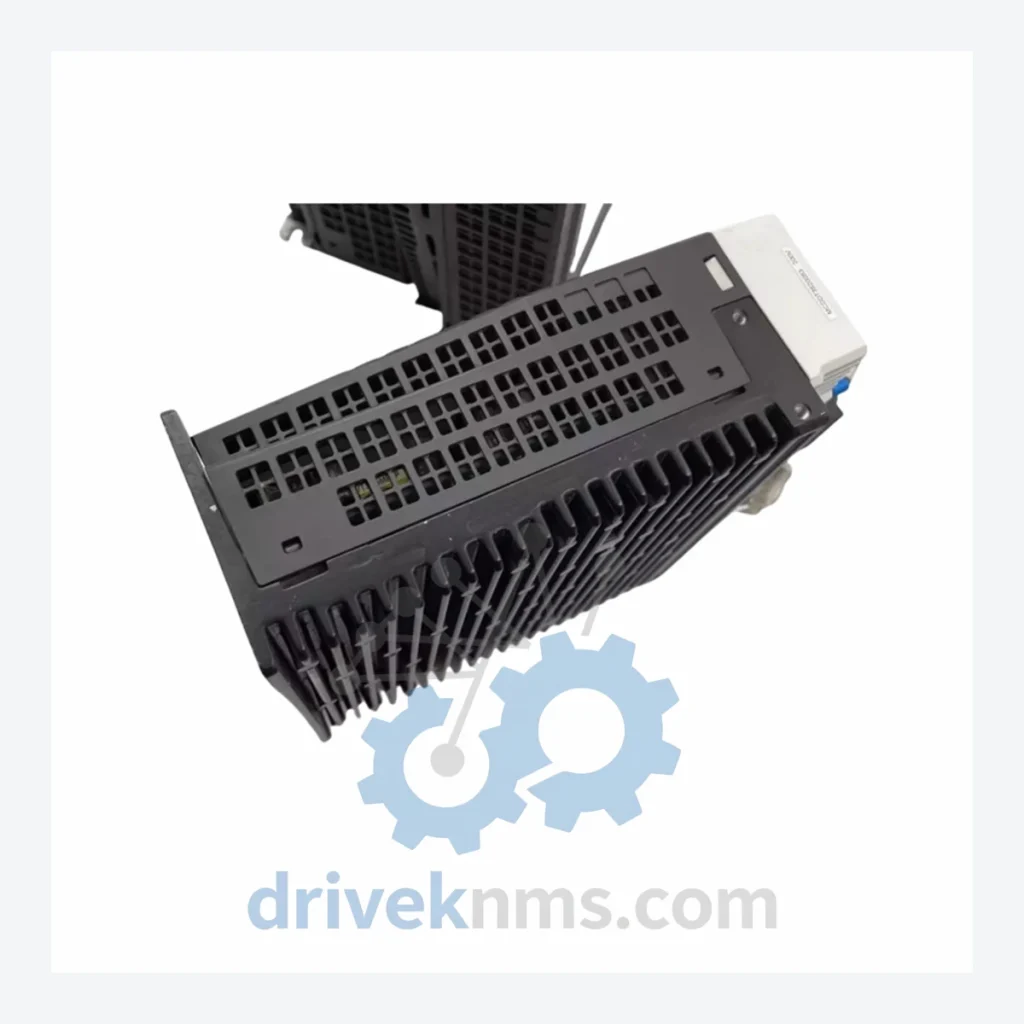

Panasonic MCDDT3520053 Servo Driver – Obsolete MINAS A4 Series Spare Part

Technical Dossier

Product Details And Specifications

Panasonic MCDDT3520053 Servo Driver – Obsolete MINAS A4 Series Spare Part

When a Panasonic MCDDT3520053 servo driver fails in a production line built around the MINAS A4 platform, the consequences extend far beyond a single axis going offline. The MINAS A4 series has reached end-of-life status, and Panasonic no longer manufactures or provides factory support for this driver. For plant managers operating legacy motion control systems, the failure of this unit presents a binary choice: locate a genuine replacement, or face a forced migration to a current-generation servo platform — a project that routinely costs hundreds of thousands to millions of dollars in engineering hours, downtime, revalidation, and retraining.

DriveKNMS maintains verified physical stock of the MCDDT3520053. This is not a catalog listing. Securing this unit now is a direct investment in the operational continuity of your existing automation asset.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS are intentionally omitted. Specifications above are drawn from publicly available Panasonic MINAS A4 series documentation. Buyers requiring full electrical datasheets should contact us directly.

Solving the Discontinued Hardware Crisis

The Panasonic MINAS A4 servo platform was widely deployed across precision manufacturing, semiconductor handling, packaging machinery, and medical device production lines throughout the 2000s and 2010s. Its motion control architecture was deeply integrated into machine designs — axis tuning parameters, electronic cam profiles, and safety interlock logic were all written to the MINAS A4 communication protocol.

Replacing this driver with a current-generation unit is not a swap. It is a re-engineering project. A single axis migration typically requires: new servo motor selection and mechanical coupling verification, complete re-parameterization of motion profiles, PLC or motion controller communication reconfiguration, safety system revalidation, and production line requalification. For multi-axis systems, multiply accordingly.

The MCDDT3520053 is not a commodity component. It is the load-bearing element of a motion control architecture that your production process was built around. Maintaining a verified spare on the shelf is the lowest-cost risk mitigation strategy available to any plant operating this equipment.

How to extend your MINAS A4 system life by 5–10 years:

• Identify single points of failure. Map every MINAS A4 driver in your facility. Axes with no spare coverage represent unacceptable operational risk. Prioritize by criticality and cycle frequency.
• Establish a minimum spare holding. For high-cycle axes, a minimum of two units per model is a defensible standard. For lower-cycle axes, one verified spare per model is the floor.
• Negotiate a scheduled maintenance window. Proactively replace drivers showing signs of capacitor aging or intermittent fault codes before they cause unplanned downtime. A planned swap costs a fraction of an emergency shutdown.
• Document firmware versions. MINAS A4 drivers may carry different firmware revisions. Record the firmware version of every installed unit so that replacement units can be matched or upgraded consistently.
• Engage a specialist supplier now. Global stock of discontinued Panasonic MINAS A4 components is finite and diminishing. Prices increase as availability contracts. Procurement decisions made today cost less than the same decisions made under emergency conditions.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all discontinued servo drivers before shipment:

• Step 1 – Visual and mechanical inspection: Full external inspection for physical damage, connector pin condition, and housing integrity. Pin corrosion and oxidation are specifically checked and documented.
• Step 2 – Electrolytic capacitor assessment: Capacitor aging is the primary failure mode in stored servo drivers. Units are assessed for capacitor condition; where aging is identified, this is disclosed to the buyer prior to shipment.
• Step 3 – Firmware version verification: The firmware revision is read and recorded. Buyers are informed of the exact firmware version present on the unit.
• Step 4 – Power-on functional test: Where test equipment is available for the specific model, units are powered on and basic operational status is confirmed.
• Step 5 – Packaging for long-term storage: Units are packaged in anti-static materials with desiccant. Units intended for shelf storage rather than immediate installation are packaged accordingly.

Key Features for System Maintenance

• Drop-in replacement: The MCDDT3520053 is a direct physical and electrical replacement for the same part number. No mechanical modification is required.
• No reprogramming required: Axis parameters stored in the host controller or PLC are not affected by a driver swap. Existing motion profiles remain valid.
• No engineering reconstruction: Unlike a platform migration, a like-for-like driver replacement does not trigger revalidation requirements in most production environments. Confirm with your process engineering team based on your specific regulatory context.
• Immediate operational restoration: A verified spare on hand converts a potential multi-week production shutdown into a same-shift recovery.

FAQ

Q: What warranty applies to a discontinued servo driver?
A: DriveKNMS provides a 90-day warranty against unit failure under normal operating conditions. Given the discontinued status of this part, we recommend buyers treat this as a working spare and implement the condition monitoring practices described above.

Q: How do I know the unit is genuine and not counterfeit?
A: All units sourced by DriveKNMS are inspected for authenticity markers consistent with genuine Panasonic manufacturing. We do not source from unverified secondary markets. If you require additional documentation, contact us before purchase.

Q: Should I buy more than one unit?
A: For any axis running more than one shift per day, holding a minimum of two units is a reasonable operational standard. Global availability of MINAS A4 components is declining. The cost of a second unit today is a fraction of the cost of an emergency procurement or a forced system migration.

Q: Can you source other MINAS A4 series components?
A: Yes. Contact us with your full bill of materials for legacy Panasonic components and we will advise on availability.
