Panasonic MDDDT5540003 AC Servo Drive – Obsolete MINAS A4 Spare Part

Technical Dossier

Product Details And Specifications

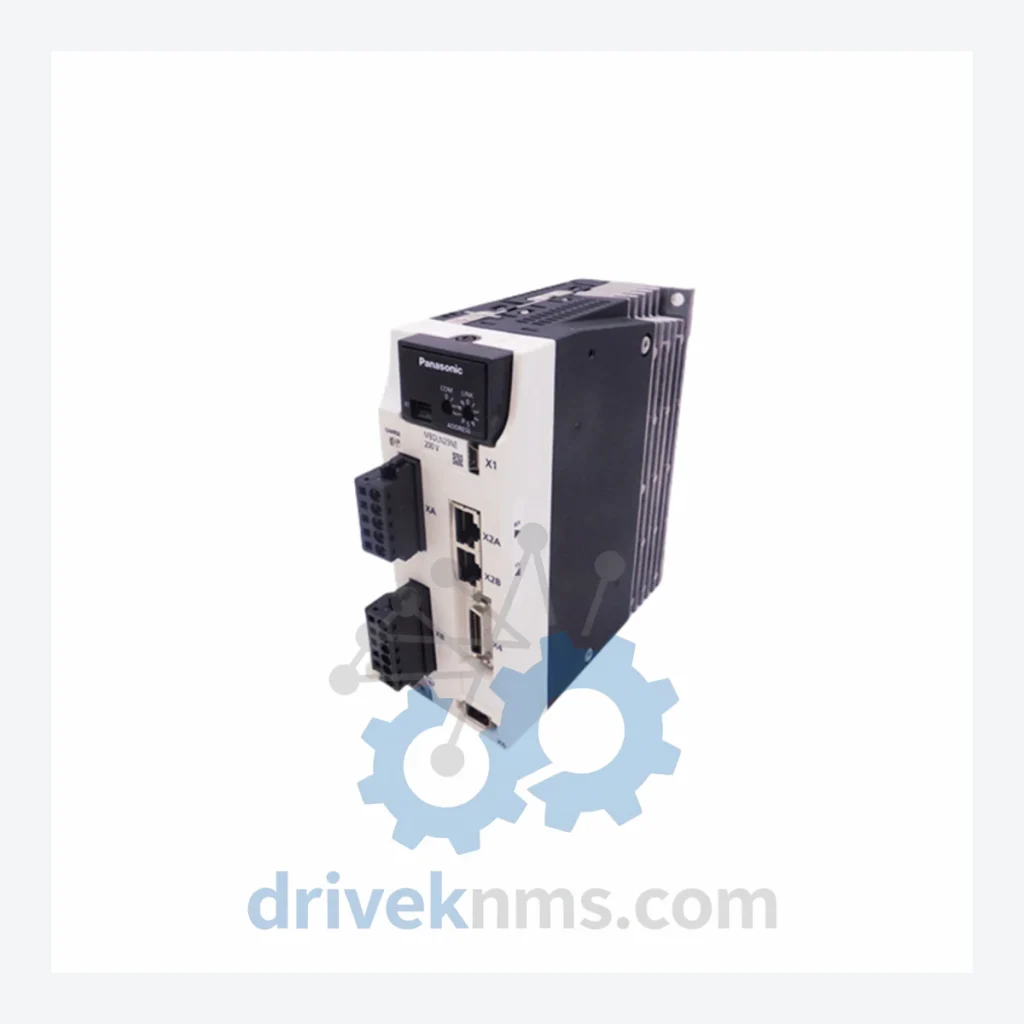

Panasonic MDDDT5540003 AC Servo Drive – Obsolete MINAS A4 Spare Part

When a Panasonic MDDDT5540003 servo drive fails on your production line, the clock starts immediately. This unit is a core motion control component in Panasonic's MINAS A4 series — a platform that has been deployed across thousands of precision manufacturing cells worldwide. Replacing the entire servo system or migrating to a current-generation platform is not a matter of days. Engineering re-scoping, new wiring harnesses, PLC reprogramming, mechanical re-mounting, and re-commissioning can consume 6 to 18 months of project time and routinely exceed USD $500,000 per axis cluster in total system cost. A single verified spare MDDDT5540003 eliminates that exposure entirely. DriveKNMS maintains allocated stock of this discontinued unit specifically for facilities that cannot afford unplanned downtime or forced capital expenditure.

Technical Specifications

Note: Electrical parameters such as rated output current, input voltage range, and encoder interface specifications should be verified against the original unit nameplate and the MINAS A4 series technical manual (Panasonic document SX-DSV02002). DriveKNMS does not publish unverified electrical data.

Solving the Discontinued Hardware Crisis

The MINAS A4 platform reached end-of-life status, yet it remains embedded in a substantial installed base of CNC machining centers, semiconductor handling equipment, electronic assembly lines, and packaging machinery. The core problem facing plant engineering teams is not technical — it is economic. The MDDDT5540003 communicates with host controllers via established pulse-train and analog interfaces that are deeply integrated into existing machine programs. Replacing it with a current-generation drive requires interface translation, motor re-matching, and in most cases a full re-qualification of the machine's motion profile. For regulated industries — medical device manufacturing, aerospace component machining, food processing — re-qualification alone can take months and require third-party validation. The MDDDT5540003 spare eliminates every one of those steps. It is a direct hardware replacement that preserves the existing control architecture, the existing motor, and the existing machine certification status. For facilities operating 10, 20, or 50 of these axes, maintaining a verified spare inventory is not optional — it is the lowest-cost risk management strategy available.

Long-Term Asset Protection Strategy: Industry data from automation maintenance programs consistently shows that extending the operational life of a proven servo platform by 5 to 10 years costs between 3% and 8% of the capital expenditure required for a full system migration. For a facility with 20 MINAS A4 axes, a structured spare parts program — covering servo drives, encoder cables, and regenerative resistors — typically costs under USD $50,000 and defers a migration project that would otherwise consume USD $800,000 to $1,500,000 in engineering, hardware, and lost production time. The MDDDT5540003 is the highest-criticality component in that spare parts matrix. A failed drive with no replacement on hand converts a maintenance event into a capital project overnight. Procurement managers and plant directors who have experienced that scenario do not repeat it.

Condition & Reliability Assurance

Discontinued servo drives sourced from the secondary market carry real risks that must be systematically addressed before installation. DriveKNMS applies a 5-step inspection and restoration protocol to every MDDDT5540003 unit before it leaves our facility:

• Step 1 – Electrolytic Capacitor Assessment: DC bus and control board electrolytic capacitors are the primary age-related failure point in stored servo drives. Each unit undergoes capacitance measurement and ESR testing. Units with degraded capacitors are either recapped with equivalent-specification components or quarantined from stock.
• Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility requirements for MINAS A4 motor combinations. Units with incompatible or corrupted firmware are not released.
• Step 3 – Terminal and Connector Inspection: All I/O terminals, power terminals, and encoder connectors are inspected under magnification for oxidation, pin corrosion, and mechanical damage. Affected contacts are treated or the unit is rejected.
• Step 4 – Insulation and Power Stage Test: The power stage is tested for insulation integrity and switching function prior to shipment.
• Step 5 – Functional Run Test: Where test fixtures permit, units are powered and verified for basic drive response before packaging.

Each unit ships with a condition report documenting the inspection findings.

Key Features for System Maintenance

• Drop-in replacement: The MDDDT5540003 installs directly into the existing drive mounting position with no mechanical modification.
• No reprogramming required: Parameter sets stored in the host controller or on the drive's internal memory card are retained. Axis re-commissioning is limited to parameter restore and a basic jog test in the majority of installations.
• Preserves machine certification: Because the hardware interface is unchanged, existing CE, UL, or industry-specific machine certifications are not invalidated by the replacement.
• Avoids engineering re-scoping costs: No new wiring harness, no motor re-matching, no PLC program modification — the replacement is a maintenance event, not an engineering project.
• Supports multi-axis spare strategy: DriveKNMS can supply multiple units to support a facility-wide spare parts program. Contact us for volume pricing and allocation agreements.

FAQ

Q: What warranty applies to a discontinued MDDDT5540003?
A: DriveKNMS provides a 12-month warranty against defects in the unit as supplied, covering failure under normal operating conditions. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or use outside the unit's rated parameters.

Q: How do I confirm the unit is new or quality-refurbished rather than untested pull stock?
A: Every unit shipped by DriveKNMS is accompanied by a condition report generated during our 5-step inspection process. We clearly state the condition grade — new old stock, tested refurbished, or inspected pull — before order confirmation. We do not ship untested units.

Q: Should I purchase more than one unit as a long-term reserve?
A: For facilities with multiple MINAS A4 axes, holding a minimum of one spare per 10 operating axes is a standard recommendation in industrial maintenance practice. Given that secondary market availability of the MDDDT5540003 is finite and declining, procurement of reserve stock now is materially lower risk than sourcing under emergency conditions. DriveKNMS can structure a phased delivery or consignment arrangement for larger reserve quantities.

Q: Can DriveKNMS source other MINAS A4 series components?
A: Yes. We maintain or can source a range of MINAS A4 series components including servo motors, encoder cables, and regenerative resistor units. Contact us with your full BOM for a consolidated quotation.
