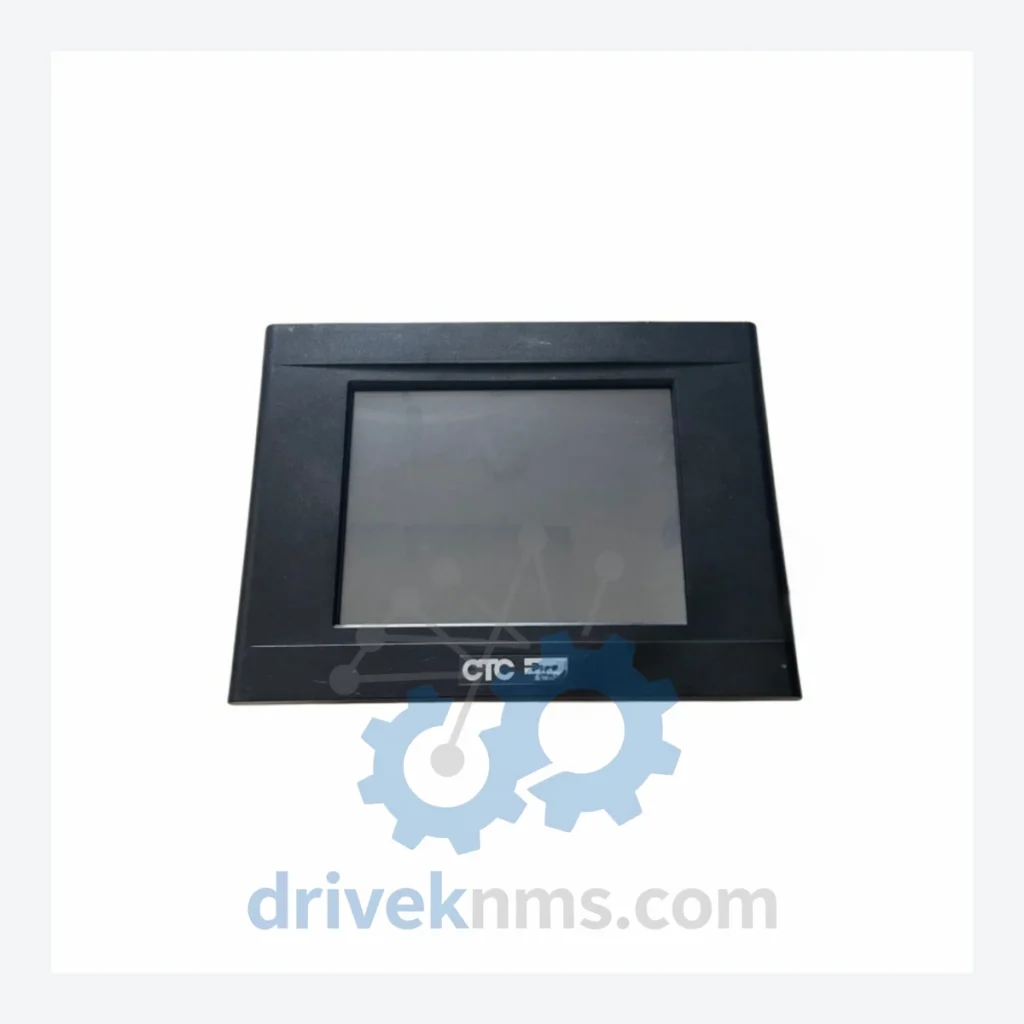

Parker P11-014DR Operator Interface Panel – Obsolete SSD Series Spare Part

Technical Dossier

Product Details And Specifications

Parker P11-014DR Operator Interface Panel – Obsolete SSD Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this panel variant are verified during our QA process. Unconfirmed specifications are not published to protect equipment safety.

Solving the Discontinued Hardware Crisis

Parker's SSD 590 and 690 series DC and AC drives remain in active service at paper mills, metal processing lines, crane systems, and water treatment facilities across multiple continents. These drives were engineered for 20-year service lives, and many installations have already exceeded that mark — a testament to the platform's robustness, but also a growing liability when interface components fail.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Facilities managing aging Parker SSD infrastructure should treat operator interface panels as a priority spare category. A single unit held in reserve can protect an asset worth 100 to 500 times its cost.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Managers

The decision to retire a legacy drive system is rarely driven by the drive itself. It is driven by the unavailability of a single failed component. This is the core vulnerability that a structured spare parts strategy addresses.

For plant managers operating Parker SSD-based systems under pressure from corporate asset retirement schedules, the following approach has been used successfully to defer costly upgrades by five to ten years:

This approach does not require capital expenditure approval. It is a maintenance budget decision that protects a capital asset. The argument to plant ownership is straightforward: the cost of a structured spare parts program for a legacy drive line is a fraction of one unplanned shutdown event.

Condition & Reliability Assurance

Every P11-014DR unit that leaves DriveKNMS has passed a five-stage inspection protocol developed specifically for discontinued industrial components:

1. Electrolytic capacitor assessment: Capacitors are the primary age-related failure point in legacy interface panels. Each unit is inspected for bulging, leakage, and ESR deviation. Units with degraded capacitors are recapped with equivalent-specification replacements before release.
2. Firmware version verification: The panel firmware version is confirmed against the compatible drive firmware range. Mismatched firmware versions cause communication faults that are frequently misdiagnosed as hardware failure.
3. Connector and pin inspection: All edge connectors and ribbon cable interfaces are inspected under magnification for oxidation, corrosion, and mechanical damage. Affected contacts are cleaned and treated.
4. Display and keypad functional test: All display segments and keypad inputs are exercised through a full functional cycle. Dead pixels and non-responsive keys are rejection criteria.
5. Final power-on verification: The unit is powered and confirmed to initialize correctly before packaging.

Units that do not pass all five stages are either remediated to standard or withheld from sale. Condition grade is documented and provided with each shipment.

Key Features for System Maintenance

• Drop-in replacement: The P11-014DR installs directly into the existing drive housing using the original mounting points and connector interface. No mechanical modification is required.
• No reprogramming required: Drive parameters are stored in the drive's own memory, not in the panel. Swapping the panel does not alter drive configuration. Commissioning time is limited to physical installation and a functional check.
• Avoids engineering redesign costs: Using the original-specification panel eliminates the need for any control system modification, PLC interface update, or HMI software change that a drive replacement would trigger.
• Preserves existing operator familiarity: Operators trained on the SSD interface do not require retraining. This is a non-trivial operational consideration in facilities with high shift turnover.

Can you source other Parker SSD components?
Yes. DriveKNMS specializes in the full Parker SSD 590 and 690 series component range, including field supply boards, encoder interface cards, and control PCBs. Contact us with your part number for availability.
