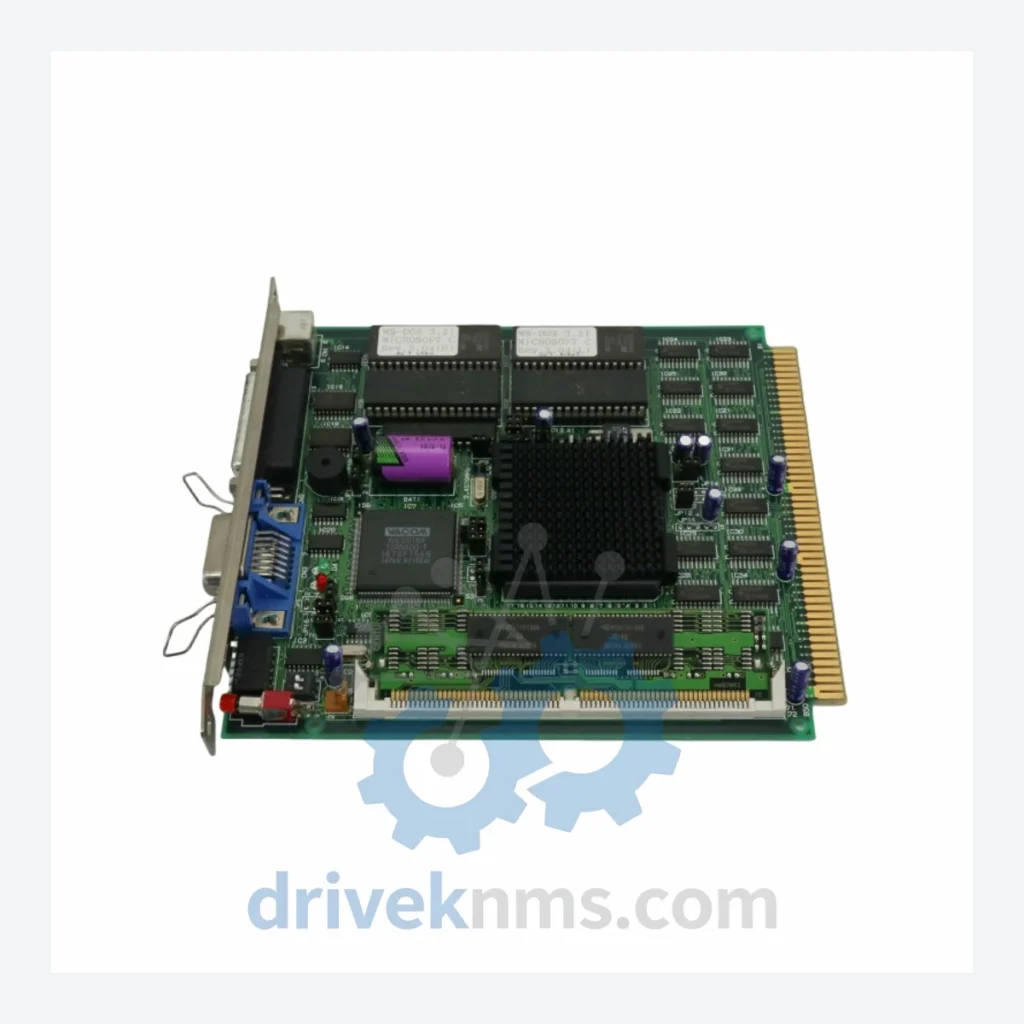

PCB-A002-B PRTM-040 BP486 Industrial SBC Modules

Technical Dossier

Product Details And Specifications

PRTM BP486 Series: Comprehensive Module Range and Technical Overview

The PRTM BP486 series represents a generation of 486-class single-board computers (SBC) and backplane PCB assemblies deployed extensively across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants. The PCB-A002-B PRTM-040 BP486 board is a core compute/backplane module within this architecture, providing the CPU and bus arbitration functions that underpin distributed control system (DCS) and programmable logic controller (PLC) installations built during the 1990s–2000s industrial automation expansion cycle. Installed base units remain operational in facilities where full DCS migration is deferred due to capital cost, process criticality, or regulatory freeze periods. Lifecycle extension and verified spare parts sourcing are the primary demand drivers for this series in 2024–2026.

The Evolution of BP486 / PRTM-040 Architecture

The BP486 platform is built on the Intel 486DX/486SX processor family operating at 25–66 MHz, interfacing with ISA (Industry Standard Architecture) and proprietary backplane buses common to late-generation DCS rack systems. Early revisions (A-series boards) used through-hole component construction with socketed EPROM firmware; later B-series revisions (including the PCB-A002-B) transitioned to surface-mount technology (SMT) for improved vibration tolerance in industrial enclosures. The PRTM-040 designation identifies the 40 MHz clock variant of the BP486 CPU module. Compatibility constraints are significant: BP486 boards are not hot-swap capable, require specific BIOS/firmware revisions matched to the host DCS rack, and use proprietary edge connectors that are not interchangeable with later Pentium-class (BP586/BP686) successors. Field engineers must verify board revision, firmware checksum, and backplane slot assignment before substitution.

BP486 / PRTM-040 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the BP486 and PRTM-040 product family. Each entry is classified by functional role within the rack architecture.

CPU / SBC Modules

• PCB-A002-B PRTM-040 BP486: 40 MHz 486DX SBC, ISA backplane, SMT revision B — primary compute module.
• PCB-A001-A PRTM-025 BP486: 25 MHz 486SX SBC, through-hole revision A — early-generation CPU board.
• PCB-A003-C PRTM-066 BP486: 66 MHz 486DX2 SBC, SMT revision C — high-clock variant for scan-intensive applications.
• PCB-A004-B PRTM-040 BP486: 40 MHz SBC with onboard math coprocessor socket — process calculation variant.
• PCB-A005-A BP486-CPU-EXT: CPU extension daughterboard for memory expansion to 32 MB DRAM.

Digital Input (DI) Modules

• PCB-B001-A BP486-DI-16: 16-channel 24 VDC digital input, optically isolated, rack-mount.
• PCB-B002-B BP486-DI-32: 32-channel 24 VDC digital input, dual-port, high-density I/O slot.
• PCB-B003-A BP486-DI-8-120VAC: 8-channel 120 VAC digital input module, field-wiring terminal block.

Digital Output (DO) Modules

• PCB-C001-A BP486-DO-16-RELAY: 16-channel relay output, SPDT contacts, 5A/250VAC rated.
• PCB-C002-B BP486-DO-32-TRANS: 32-channel transistor output, 24 VDC sourcing, 0.5A per channel.

Analog Input (AI) Modules

• PCB-D001-A BP486-AI-8-4-20MA: 8-channel 4–20 mA analog input, 12-bit ADC, loop-powered.
• PCB-D002-B BP486-AI-16-RTD: 16-channel RTD/thermocouple input, Pt100/Pt1000 compatible.
• PCB-D003-A BP486-AI-4-0-10V: 4-channel 0–10 VDC analog input, differential measurement.

Communication / Network Adapter Modules

• PCB-E001-A BP486-COMM-RS485: RS-485/RS-422 serial communication adapter, Modbus RTU master/slave.
• PCB-E002-B BP486-COMM-PROFIBUS: PROFIBUS-DP slave adapter, 12 Mbit/s, GSD file configurable.
• PCB-E003-A BP486-COMM-ETHERNET: 10BASE-T Ethernet adapter, ISA bus interface, SNMP-capable.

Power Supply Modules

• PCB-F001-A BP486-PSU-5V-10A: 5 VDC / 10A rack power supply, linear regulated, fan-cooled.
• PCB-F002-B BP486-PSU-24V-5A: 24 VDC / 5A field power supply module, short-circuit protected.

Sourcing Hard-to-Find & Obsolete BP486 / PRTM-040 Parts

Quality Control for the BP486 / PRTM-040 Range

BP486-series boards present specific test challenges due to their ISA bus architecture, socketed EPROM firmware, and mixed through-hole/SMT construction. DriveKNMS applies the following test protocol to all units prior to dispatch: (1) Visual inspection — solder joint integrity, capacitor ESR check, corrosion assessment on edge connectors and backplane pins; (2) Power-on self-test (POST) — board is seated in a reference BP486 rack and cycled through full POST sequence; firmware checksum is verified against known-good reference; (3) Bus communication test — ISA bus arbitration, DMA channel assignment, and interrupt mapping are verified using a dedicated test harness; (4) I/O functional test — for I/O modules, all channels are exercised at rated voltage/current with pass/fail logging; (5) Burn-in — CPU and power modules undergo 48-hour thermal cycling at 0–55°C to screen latent failures. Test records are retained and available on request for quality-audited facilities.
