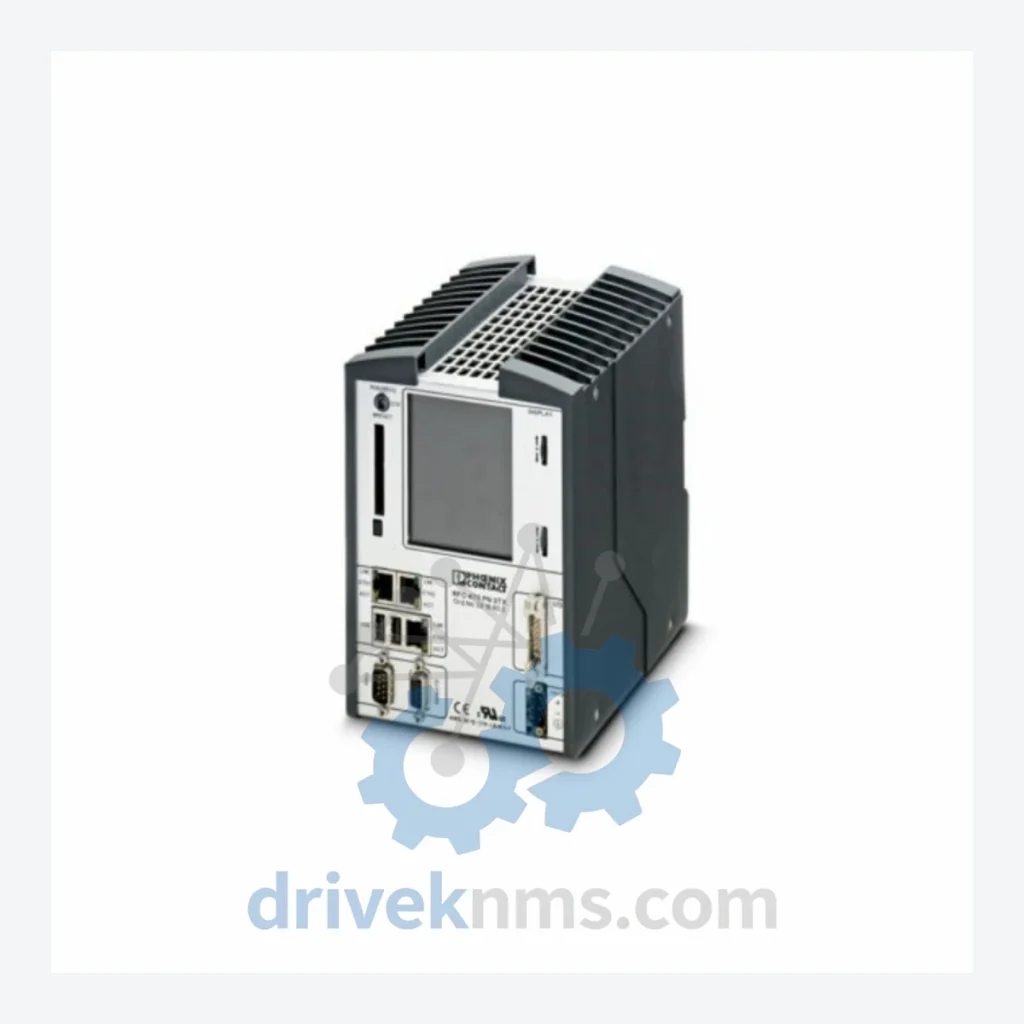

Phoenix Contact RFC470 PN 3TX PROFINET Controller – Obsolete ILC Series Spare Part

Technical Dossier

Product Details And Specifications

Phoenix Contact RFC470 PN 3TX PROFINET Controller – Obsolete ILC Series Spare Part

When a PROFINET controller fails inside a legacy Phoenix Contact ILC automation cell, the consequences extend far beyond a single module replacement. A full system migration — new PLC platform, re-engineering of control logic, requalification of safety interlocks, and operator retraining — routinely costs manufacturing operations between $500,000 and $2,000,000 USD, plus weeks of unplanned downtime. The RFC470 PN 3TX is the load-bearing component of that architecture. DriveKNMS holds verified physical stock of this discontinued module, sourced through controlled industrial channels, for facilities that cannot afford to gamble on system integrity.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS. Refer to the original Phoenix Contact datasheet for full electrical specifications. DriveKNMS does not fabricate technical data.

Solving the Discontinued Hardware Crisis

The RFC470 PN 3TX served as the PROFINET IO controller backbone in Phoenix Contact's RFC 470 and ILC-series automation platforms — systems that were widely deployed across pharmaceutical batch processing lines, automotive body shop conveyors, and food & beverage packaging cells throughout the 2000s and 2010s. These installations were engineered for 20–30 year operational lifespans. The hardware has outlasted its supply chain.

Phoenix Contact's discontinuation of the RFC 470 series left a specific gap: facilities running PROFINET-based distributed I/O topologies with RFC 47x controllers cannot simply swap in a current-generation AXC F controller without rewriting the entire PROFINET device configuration, re-mapping I/O addresses, and re-validating process interlocks. In regulated industries — pharmaceutical, food safety, nuclear auxiliary systems — that revalidation alone can take 6 to 18 months and require third-party audit sign-off.

The RFC470 PN 3TX is not a commodity item. It is the difference between a controlled maintenance event and a forced capital project. Facilities that maintain a strategic stock of one or two units extend the operational life of their existing automation asset by 5 to 10 years at a fraction of the cost of platform migration. For plant engineering managers facing board-level pressure to defer capital expenditure, this is a defensible, documented maintenance strategy — not a workaround.

DriveKNMS specializes in sourcing discontinued Phoenix Contact modules through verified industrial surplus channels. Each unit passes through a structured inspection protocol before shipment.

Condition & Reliability Assurance

Discontinued hardware carries age-related failure risks that standard incoming inspection does not address. DriveKNMS applies a 5-step QA protocol specifically designed for legacy industrial modules:

• Step 1 – Visual & Mechanical Inspection: Housing integrity, connector pin condition, label legibility, and absence of physical damage or prior repair attempts.
• Step 2 – Electrolytic Capacitor Assessment: Inspection for capacitor bulging, electrolyte leakage, and ESR deviation — the primary age-related failure mode in controller boards manufactured before 2015.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatibility matrices for RFC 47x platform versions.
• Step 4 – Pin & Contact Corrosion Check: All backplane connectors and communication port pins are inspected under magnification for oxidation, corrosion, or mechanical deformation that would cause intermittent communication faults.
• Step 5 – Functional Power-On Test: Unit is powered and communication port activity is verified prior to packaging.

Units that do not pass all five steps are quarantined and not offered for sale. Condition grade is documented on the shipment certificate.

Key Features for System Maintenance

• Drop-in replacement: The RFC470 PN 3TX installs directly into the existing RFC 470 backplane slot. No hardware modification required.
• No reprogramming required: The replacement unit accepts the existing project file from PC Worx or PC Worx Express without modification, provided firmware versions are compatible — eliminating engineering hours and revalidation risk.
• Avoids engineering reconstruction costs: Replacing this module preserves the existing PROFINET device table, I/O mapping, and safety logic. A platform migration would require rebuilding all of this from scratch.
• Supports long-term asset protection strategy: Procurement of strategic spare units allows maintenance teams to respond to failures within hours rather than initiating a capital project that takes months to approve and execute.
• Documented chain of custody: Each unit shipped by DriveKNMS includes sourcing documentation, inspection records, and condition certification.

FAQ

Q: What warranty applies to a discontinued module like the RFC470 PN 3TX?
A: DriveKNMS provides a 90-day functional warranty on all tested units. The warranty covers failure under normal operating conditions and excludes damage caused by incorrect installation or electrical overstress.

Q: How do I confirm the unit is new or quality-refurbished — not a counterfeit?
A: All units are sourced from traceable industrial surplus channels, not grey-market brokers. Shipments include a condition certificate specifying whether the unit is new-surplus (unused, original packaging) or inspected-refurbished (used, passed 5-step QA). We do not sell units of unknown origin.

Q: Should we buy more than one unit as a long-term reserve?
A: For any facility running a single RFC 470 platform, holding a minimum of two spare RFC470 PN 3TX units is a standard risk mitigation practice. Global stock of this module is finite and diminishing. Procurement cost today is a fraction of the emergency sourcing premium that applies when the last available units are gone. We recommend assessing your installed base and reserving accordingly.

Q: Can DriveKNMS source other discontinued Phoenix Contact ILC or RFC series modules?
A: Yes. Contact us with your full part number list. We maintain sourcing networks across multiple industrial surplus channels and can advise on availability and lead times for related legacy Phoenix Contact hardware.
