Allen-Bradley 1756-IF8H Analog Input Module – Obsolete ControlLogix Spare Part

Technical Dossier

Product Details And Specifications

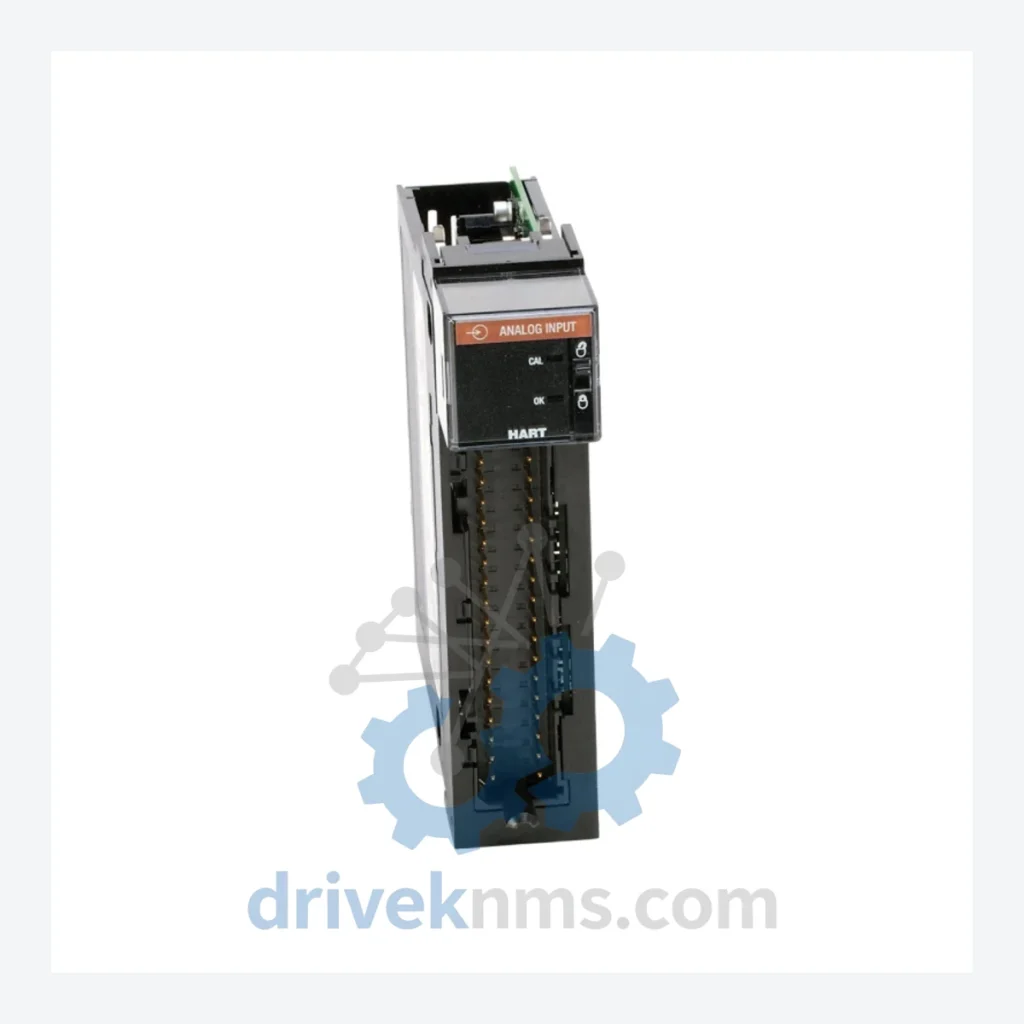

Allen-Bradley 1756-IF8H Analog Input Module – Obsolete ControlLogix Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The 1756-IF8H is a HART-capable analog input module integrated into ControlLogix chassis that have been in continuous service across oil & gas, chemical processing, water treatment, and power generation facilities for over two decades. Its discontinuation does not eliminate the installed base — it creates a supply gap that grows more acute with each passing year.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The practical strategy for plant engineers and maintenance managers is straightforward: source verified spare 1756-IF8H modules now, before the next failure event forces a decision under pressure. A single module held in a climate-controlled spare parts cabinet can defer a multi-million dollar system migration by 5 to 10 years. That is not an estimate — it is the documented experience of facilities that have managed ControlLogix asset life cycles through proactive spare parts programs.

Condition & Reliability Assurance

Discontinued modules sourced from secondary markets carry real risks: electrolytic capacitor degradation, firmware version mismatches, and pin corrosion from improper storage. DriveKNMS applies a 5-step QA process to every 1756-IF8H unit before dispatch review:

Step 1 – Visual and Physical Inspection: Full examination of the module housing, backplane connector pins, and field wiring terminals. Any unit showing corrosion, mechanical damage, or evidence of prior field repair is rejected.

Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in modules stored beyond five years. We assess capacitor condition and flag units showing ESR drift outside acceptable tolerance.

Step 3 – Firmware Version Verification: The installed firmware version is documented and matched against the customer's existing ControlLogix system revision to confirm compatibility before dispatch review.

Step 4 – Functional Bench Test: Each module is powered and tested in a ControlLogix chassis to verify channel-by-channel analog input response and HART communication integrity.

Step 5 – Packaging and Storage Certification: Units are packaged in ESD-safe materials with desiccant and sealed for long-term storage if required. Storage condition records are provided on request.

Key Features for System Maintenance

The 1756-IF8H is a drop-in replacement for any existing 1756-IF8H slot in a ControlLogix chassis. No hardware modification, no re-engineering, no reprogramming of the controller logic. The module is recognized by the existing I/O configuration in your RSLogix 5000 or Studio 5000 project without modification.

For facilities managing multiple ControlLogix chassis, holding two to three 1756-IF8H spares per site is a defensible maintenance budget line item when measured against the cost of a single unplanned shutdown event.

Q: Can you supply multiple units for a stocking program?
A: Yes. DriveKNMS supports bulk procurement for spare parts stocking programs. Contact us to discuss quantity, pricing, and staged delivery schedules.

Q: How do I confirm firmware compatibility before ordering?
A: Provide your current ControlLogix controller catalog number and firmware revision when you contact us. We will match the module firmware version to your system before dispatch review.
