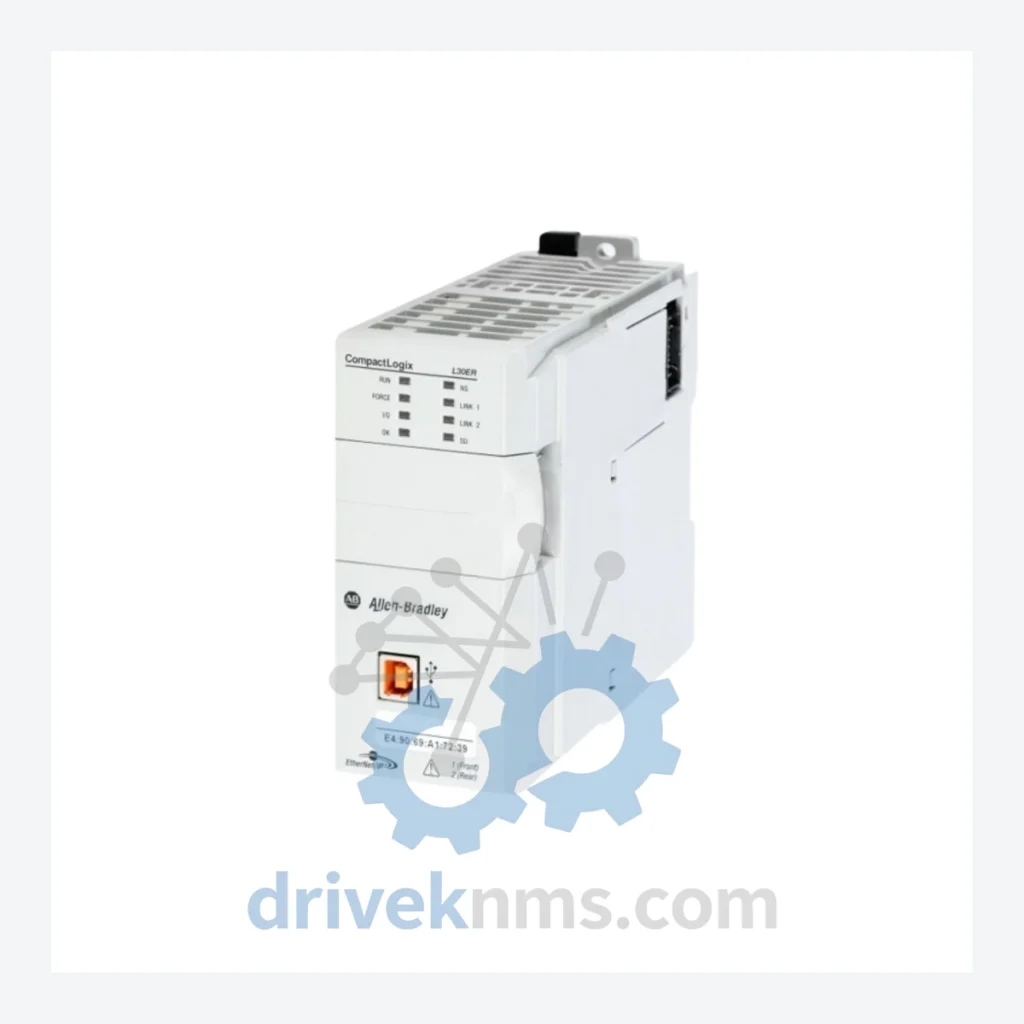

Allen-Bradley 1769 CompactLogix L3 Series Controllers

Technical Dossier

Product Details And Specifications

Allen-Bradley 1769 CompactLogix L3 Series Technical Notes

The 1769-L37ERM is a CompactLogix 5370 L3 controller with EtherNet/IP motion control capability, supporting up to 16 axes of integrated motion and managing up to 3 MB of user memory. It operates within the broader 1769 backplane ecosystem, sharing a common I/O bus with the full range of 1769 analog, digital, and specialty modules. Facilities that standardized on this controller in the 2010s now face a critical inflection point: the surrounding infrastructure — field wiring, SCADA integration, operator training, and process tuning — represents capital investment that cannot be replicated by a platform migration without substantial engineering expenditure.

DriveKNMS maintains sourced inventory of 1769 series controllers and modules specifically to support facilities that have made the rational decision to extend asset life rather than absorb migration costs prematurely.

The Evolution of 1769 CompactLogix Architecture

The 1769 CompactLogix platform was introduced by Rockwell Automation as a scalable alternative to the larger ControlLogix (1756) chassis, targeting applications requiring fewer I/O points and a smaller physical footprint. The architecture evolved through three distinct generations:

First Generation (1769-L3x, pre-EtherNet/IP motion): Controllers such as the 1769-L31, 1769-L32E, and 1769-L35E established the platform's footprint. These units used serial and early EtherNet/IP communications but lacked integrated motion control. Many remain in service in legacy SCADA-connected systems where the communication architecture has not changed since original commissioning.

Second Generation (CompactLogix 5370 L1/L2/L3): The 5370 revision introduced dual-port EtherNet/IP, Device Level Ring (DLR) topology support, and integrated motion via EtherNet/IP (the EDRV instruction set). The 1769-L37ERM belongs to this generation. Memory expanded significantly, and USB programming ports replaced RS-232 serial connections. This generation is the current production standard.

Transition Considerations: Facilities running first-generation 1769 controllers face a compatibility boundary when sourcing replacement units. A 1769-L32E cannot be directly swapped with a 1769-L37ERM without project file conversion in Studio 5000 Logix Designer. This distinction is operationally significant and must be confirmed before procurement.

1769 CompactLogix Full Catalog & Functionalities (SKU List)

Controllers (CPU Modules)

• 1769-L16ER-BB1B: CompactLogix 5370 L1, 384 KB memory, 16 I/O points onboard, EtherNet/IP dual-port
• 1769-L18ER-BB1B: CompactLogix 5370 L1, 512 KB memory, 18 I/O points onboard, EtherNet/IP dual-port
• 1769-L24ER-QB1B: CompactLogix 5370 L2, 750 KB memory, 24 I/O points onboard, EtherNet/IP dual-port
• 1769-L27ERM-QBFC1B: CompactLogix 5370 L2, 1 MB memory, 4-axis EtherNet/IP motion, onboard I/O
• 1769-L30ER: CompactLogix 5370 L3, 1 MB user memory, EtherNet/IP dual-port, no onboard I/O
• 1769-L33ER: CompactLogix 5370 L3, 2 MB user memory, EtherNet/IP dual-port, no onboard I/O
• 1769-L36ERM: CompactLogix 5370 L3, 2 MB user memory, 8-axis EtherNet/IP motion, EtherNet/IP dual-port
• 1769-L37ERM: CompactLogix 5370 L3, 3 MB user memory, 16-axis EtherNet/IP motion, EtherNet/IP dual-port — current page SKU
• 1769-L38ERM: CompactLogix 5370 L3, 4 MB user memory, 16-axis EtherNet/IP motion, EtherNet/IP dual-port

Digital Input Modules (DI)

• 1769-IQ16: 16-point 24V DC sink/source digital input module
• 1769-IQ32: 32-point 24V DC digital input, high-density format
• 1769-IA8I: 8-point 120V AC isolated digital input module

Digital Output Modules (DO)

• 1769-OB16: 16-point 24V DC source digital output module
• 1769-OB32: 32-point 24V DC source digital output, high-density
• 1769-OA8: 8-point 120/240V AC digital output module

Analog I/O Modules (AI/AO)

• 1769-IF4: 4-channel analog input, 4–20 mA / 0–10V configurable
• 1769-OF4: 4-channel analog output, 4–20 mA / 0–10V configurable
• 1769-IF8: 8-channel analog input module, differential inputs

Communication & Specialty Modules

• 1769-L37ERM: Integrated EtherNet/IP motion controller (see Controllers above)
• 1769-SDN: DeviceNet scanner module for legacy field device integration

Power Supplies

• 1769-PA2: 120/240V AC input, 2A @ 5V DC output power supply
• 1769-PB2: 18–32V DC input, 2A @ 5V DC output power supply
• 1769-PA4: 120/240V AC input, 4A @ 5V DC output power supply

Quality Control for the 1769 CompactLogix Range

The 1769 backplane uses a proprietary serial bus for I/O communication between the controller and expansion modules. Counterfeit and improperly refurbished modules in this ecosystem present a specific risk: a module that passes basic power-on testing may still fail under backplane communication load or at temperature extremes. Our QC process for 1769 modules addresses this directly.

Each unit processed by DriveKNMS undergoes the following verification steps:

• Visual inspection: Board-level examination for corrosion, damaged connectors, and evidence of prior repair or component substitution.
• Firmware version verification: Controller firmware is read and compared against Rockwell Automation's published revision history. Units with unsupported or corrupted firmware are rejected.
• Backplane communication test: Controllers are bench-tested in a live 1769 rack with known-good I/O modules to verify backplane arbitration and I/O tree construction.
• EtherNet/IP port validation: Dual-port EtherNet/IP functionality is verified, including DLR participation and CIP connection establishment.
• Thermal cycle check: Units are operated through a temperature cycle to identify marginal components that pass at ambient but fail under thermal stress.
