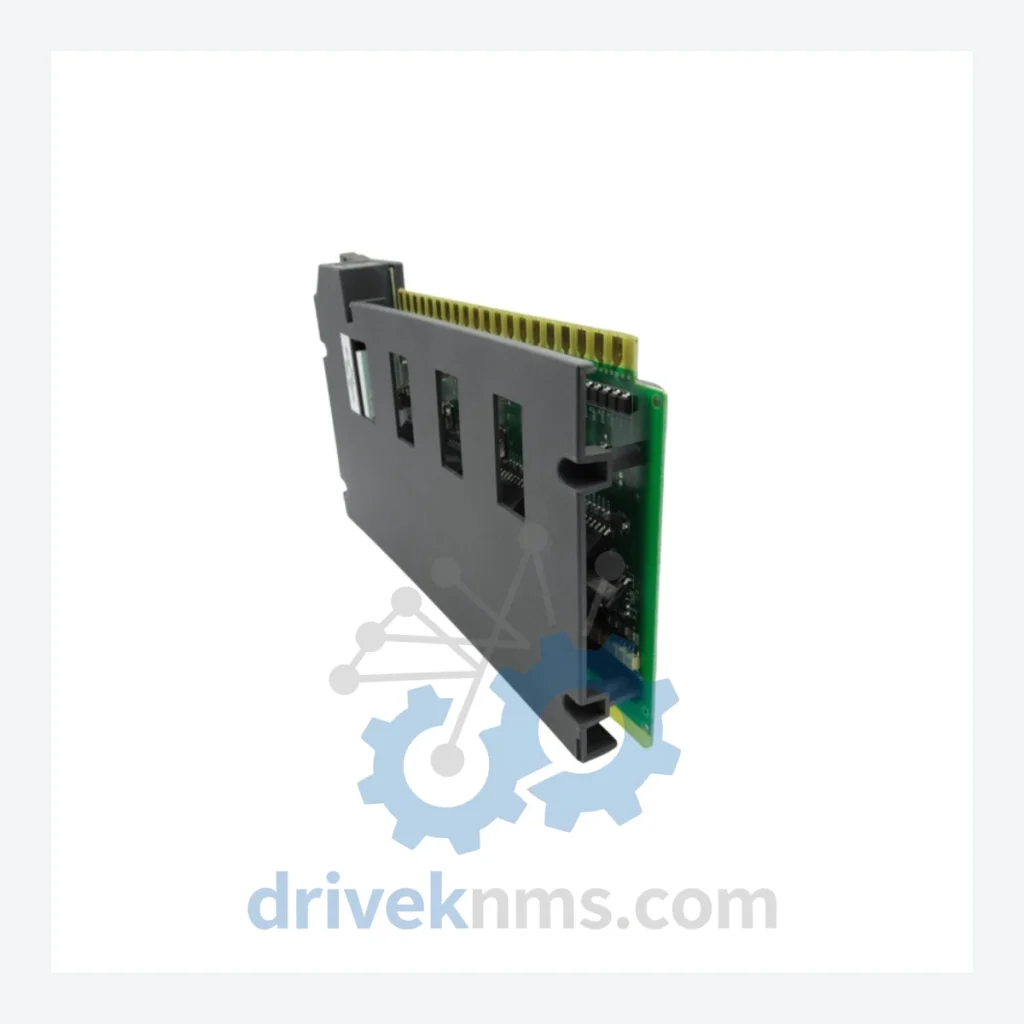

Allen-Bradley 1771-OVN Digital Output Module – Obsolete PLC-5 Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1771-OVN Digital Output Module – Obsolete PLC-5 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Allen-Bradley 1771 I/O platform was the backbone of industrial automation throughout the 1980s and 1990s. Thousands of PLC-5 systems remain in active service today — in automotive stamping lines, chemical batch processes, water treatment facilities, and power generation plants — because the cost and risk of migration outweigh the operational status quo. Rockwell Automation officially discontinued the PLC-5 product line, and the 1771 I/O modules that support it are no longer manufactured.

The 1771-OVN Digital Output Module sits at a critical junction in these systems. It translates processor logic into physical switching commands for field devices: solenoids, motor starters, indicator panels, and relay coils. When this module fails, the processor cannot command the process. There is no software workaround. There is no firmware patch. The only path to restoring production without a full system overhaul is a direct hardware replacement.

For plant managers and maintenance engineers operating under capital expenditure constraints, the calculus is straightforward: a verified replacement module at a fraction of the cost of migration buys 5 to 10 additional years of productive asset life. That window is sufficient to plan a controlled, budgeted migration on the facility's schedule — not on the schedule imposed by an unplanned failure.

Condition & Reliability Assurance

Every 1771-OVN unit processed through DriveKNMS undergoes a structured 5-step quality verification protocol before it is offered for sale. This process is designed specifically for legacy hardware, where age-related degradation follows predictable failure patterns.

Step 1 – Electrolytic Capacitor Assessment: Capacitors are the primary age-failure component in modules of this era. Each unit is inspected for signs of electrolyte leakage, case bulging, and capacitance drift. Units with degraded capacitors are removed from serviceable inventory.

Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for PLC-5 processor families. Incompatible or corrupted firmware renders a module non-functional regardless of physical condition.

Step 3 – Pin and Connector Inspection: Backplane connector pins are examined under magnification for corrosion, mechanical deformation, and contact oxidation. Pin integrity is non-negotiable for reliable I/O communication.

Step 4 – Board-Level Visual Inspection: PCB traces, solder joints, and component seating are reviewed for cold joints, cracked traces, and physical damage consistent with overcurrent events or improper handling.

Step 5 – Functional Verification: Where test infrastructure permits, modules are powered and output channel response is confirmed prior to packaging.

Units that do not pass all five steps are not sold as serviceable spares. Condition grade is disclosed at the time of quotation.

Key Features for System Maintenance

The 1771-OVN is a direct, drop-in replacement for failed modules within the 1771 I/O chassis. Installation requires no processor reprogramming, no I/O address reassignment, and no modification to existing ladder logic. The replacement procedure is a physical swap — remove the failed module, seat the replacement, restore power. Engineering involvement is limited to verification, not redesign.

This characteristic is the defining economic argument for spare parts-based maintenance over system migration. A migration project requires engineering scoping, hardware procurement, software conversion, factory acceptance testing, site acceptance testing, and a planned production outage. A module replacement requires a trained technician and a verified spare. The cost differential is not marginal — it is structural. For facilities operating on maintenance budgets rather than capital budgets, the 1771-OVN replacement path is the only operationally viable option when a failure occurs.

Should I purchase more than one unit?
For any PLC-5 system where the 1771-OVN is installed, holding a minimum of one verified spare on-site is standard practice. For systems with multiple 1771-OVN modules, or for facilities without rapid access to emergency procurement, holding two to three units is a defensible maintenance position. The cost of carrying spare inventory is a fraction of the cost of a single unplanned production stoppage.

Can this module be used with ControlLogix or CompactLogix systems?
No. The 1771 I/O platform is specific to PLC-5 processors and the 1771 chassis architecture. It is not compatible with the ControlLogix or CompactLogix I/O systems, which use a different backplane and communication protocol.
