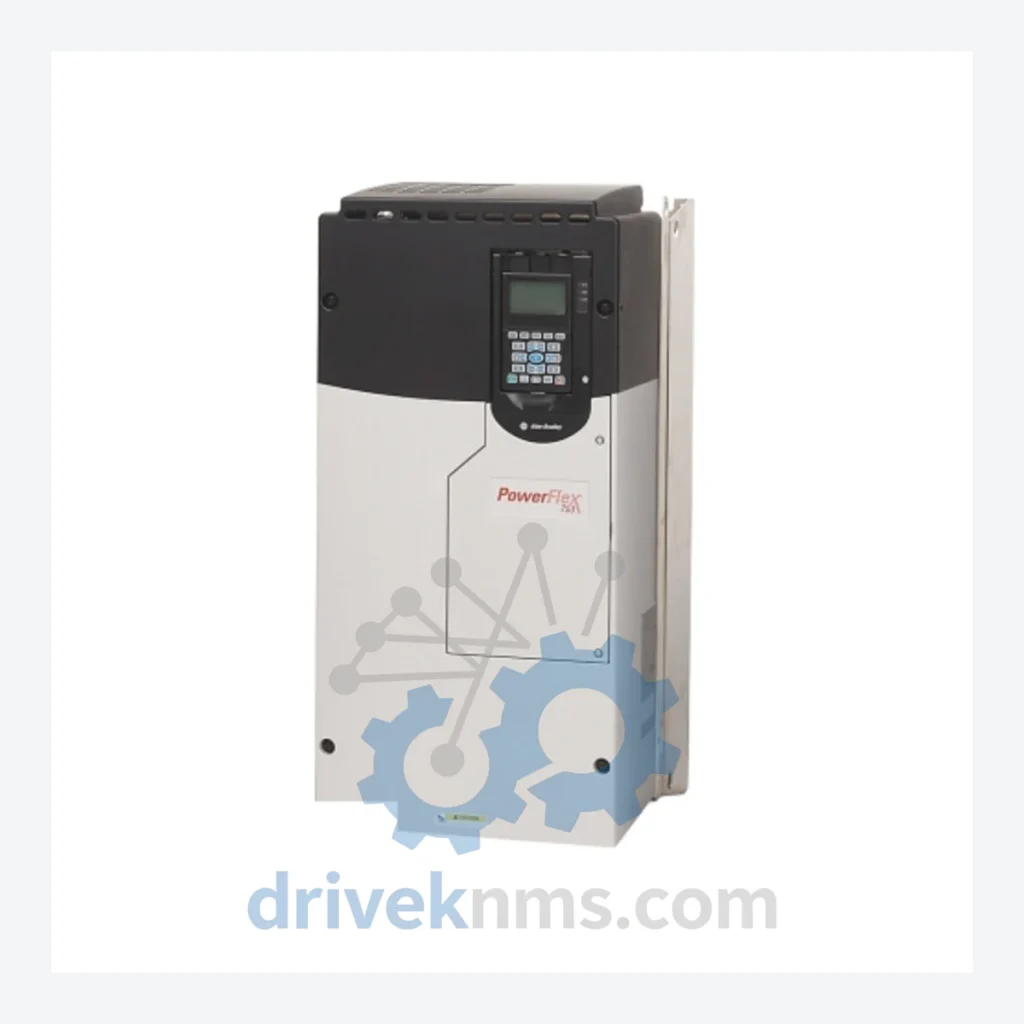

Allen-Bradley PowerFlex 753 AC Drives – 20F1ANF015JN0NNNNN

Technical Dossier

Product Details And Specifications

Allen-Bradley PowerFlex 753 Series: Comprehensive Drive Range and Technical Overview

The Allen-Bradley PowerFlex 753 is a general-purpose AC variable frequency drive (VFD) manufactured by Rockwell Automation, designed for a broad range of industrial motor control applications. It occupies a critical position in global heavy industry installations including petrochemical refineries, water treatment facilities, pulp and paper mills, mining operations, and HVAC systems. The PowerFlex 753 supports voltage classes from 200V to 600V AC and power ratings from 0.37 kW (0.5 HP) to 250 kW (400 HP), making it one of the most widely deployed mid-range drives in the Rockwell Automation portfolio. Its modular I/O architecture, embedded EtherNet/IP port, and compatibility with the Rockwell Automation Integrated Architecture framework have made it a standard specification in new plant builds and retrofit projects worldwide.

The Evolution of PowerFlex 753 Architecture

The PowerFlex 753 was introduced as part of Rockwell Automation's PowerFlex 750-Series platform, which succeeded the earlier PowerFlex 700 and PowerFlex 400 product lines. The 750-Series architecture introduced a common hardware platform shared with the higher-specification PowerFlex 755, enabling a scalable approach to drive selection within a single engineering framework.

Key architectural milestones include:

• Early 750-Series (2008–2012): Initial release with optional I/O, feedback, and communication modules via the peripheral expansion port. Supported DeviceNet, ControlNet, and EtherNet/IP adapters.
• Firmware Series B (2013–2016): Enhanced Safe Torque Off (STO) functionality to meet SIL 2 / PLd safety ratings without external safety relays. Expanded embedded EtherNet/IP dual-port capability for Device Level Ring (DLR) topology.
• Firmware Series C / Current Production (2017–present): Integration with Studio 5000 Logix Designer Add-On Profiles (AOPs), improved harmonic mitigation options, and compatibility with Rockwell's FactoryTalk suite for predictive maintenance data logging.

The PowerFlex 753 is currently in the mature/sustained support phase. Rockwell Automation continues to manufacture and support the product, but engineering focus has shifted toward the PowerFlex 755T TotalFORCE series for new high-performance applications. For installed base maintenance, long-term spare parts availability and repair support remain essential operational requirements.

PowerFlex 753 Full Catalog & Functionalities (SKU List)

The following catalog numbers represent verified, commonly deployed PowerFlex 753 configurations. Each entry reflects a specific combination of voltage class, power rating, enclosure type, and factory-installed options.

20F1ANF015JN0NNNNN — 600V, 15A, IP20 open type, no filter, standard I/O, no brake IGBT, general purpose frame
20F1AND015JN0NNNNN — 600V, 15A, IP20, with EMC filter, standard I/O configuration
20F1ANF022JN0NNNNN — 600V, 22A output current, IP20 open type, no internal filter
20F1ANF030JN0NNNNN — 600V, 30A, IP20, suitable for 15 kW motor loads at 600V
20F1ANF043JN0NNNNN — 600V, 43A, IP20, mid-range power for pump and fan applications
20F1ANF060JN0NNNNN — 600V, 60A, IP20, heavy-duty rated for compressor and conveyor loads
20F1ANF072JN0NNNNN — 600V, 72A, IP20, high-current frame for demanding motor control
20F1ANF085JN0NNNNN — 600V, 85A, IP20, suitable for 45 kW applications at 600V class
20F1ANF105JN0NNNNN — 600V, 105A, IP20, large frame drive for industrial fan arrays
20F1ANF140JN0NNNNN — 600V, 140A, IP20, high-power configuration for heavy process loads
20F3ANF015JN0NNNNN — 400V class, 15A, IP20, standard configuration for European/Asian 380–480V systems
20F3ANF022JN0NNNNN — 400V, 22A, IP20, common replacement for PowerFlex 700 mid-range units
20F3ANF030JN0NNNNN — 400V, 30A, IP20, widely used in water treatment pump stations
20F3ANF043JN0NNNNN — 400V, 43A, IP20, standard specification for HVAC air handling units
20F3ANF060JN0NNNNN — 400V, 60A, IP20, suitable for 30 kW motor loads in process industries
20F3ANF072JN0NNNNN — 400V, 72A, IP20, deployed in mining conveyor and crusher applications
20F3ANF085JN0NNNNN — 400V, 85A, IP20, high-current 400V frame for continuous duty cycles
20F3ANF105JN0NNNNN — 400V, 105A, IP20, large frame for 55 kW motor control requirements

Sourcing Hard-to-Find & Obsolete PowerFlex 753 Parts

For plants operating PowerFlex 753 drives beyond the standard 10-year service window, DriveKNMS provides lifecycle extension support including firmware-matched spare units and application-specific parameter backup services.

Quality Control for the PowerFlex 753 Range

All PowerFlex 753 units processed by DriveKNMS undergo a structured verification protocol prior to shipment:

• Visual inspection: Examination of bus capacitors, IGBT modules, control board connectors, and option card slots for physical damage or corrosion
• Power-on functional test: Drive energization, keypad HIM communication verification, and fault code diagnostic review
• Motor simulation test: Output voltage and frequency linearity check across 0–60 Hz range using calibrated load bank
• Communication port test: EtherNet/IP connectivity verification using RSLinx Classic or Studio 5000 environment
• Safe Torque Off (STO) circuit test: Functional verification of STO input response per IEC 62061 test methodology
• Parameter integrity check: Factory default parameter restore and documentation of firmware revision
