Allen-Bradley PanelView Plus 7 Series: Comprehensive Module Range and Technical Overview

The Allen-Bradley PanelView Plus 7 (2711P series) is Rockwell Automation's primary operator interface terminal platform, deployed across global heavy industry including petrochemical refineries, nuclear power facilities, offshore platforms, and continuous-process chemical plants. The 2711P series replaced the legacy PanelView Plus 6 (2711P-Bxxxx) line and introduced a unified hardware architecture based on Windows CE 6.0 and Windows Embedded Standard 7, enabling tighter integration with FactoryTalk View ME software. Installed base spans hundreds of thousands of units across North America, Europe, and Asia-Pacific, making long-term spare parts availability a critical operational concern for plant maintenance teams.

The Evolution of PanelView Plus 7 Architecture

Rockwell Automation's operator interface terminal lineage progressed through PanelView (1985–2000), PanelView Plus (2711P-Bxxxx, 2003–2010), PanelView Plus 6 (2711P-Bxxxx enhanced, 2010–2015), and PanelView Plus 7 Standard/Performance (2711P-Rxxxx / 2711P-Txxxx, 2015–present). The 2711P-R and 2711P-T prefixes denote the Plus 7 generation, with the R-series covering resistive touch and keypad variants and the T-series covering capacitive touch-only units. Key architectural changes in the Plus 7 generation include a 1 GHz ARM Cortex-A8 processor (Standard) or Intel Atom (Performance), integrated USB host/device ports, SD card slot for project backup, and dual Ethernet ports on Performance models. Compatibility with FactoryTalk View ME 8.x and above is required; projects created on Plus 6 require migration using FactoryTalk View Studio. Backplane and mounting cutout dimensions are not interchangeable between Plus 6 and Plus 7 in all cases — engineers must verify panel cutout specifications before substitution.

PanelView Plus 7 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the 2711P series. Each unit ships with FactoryTalk View ME runtime license.

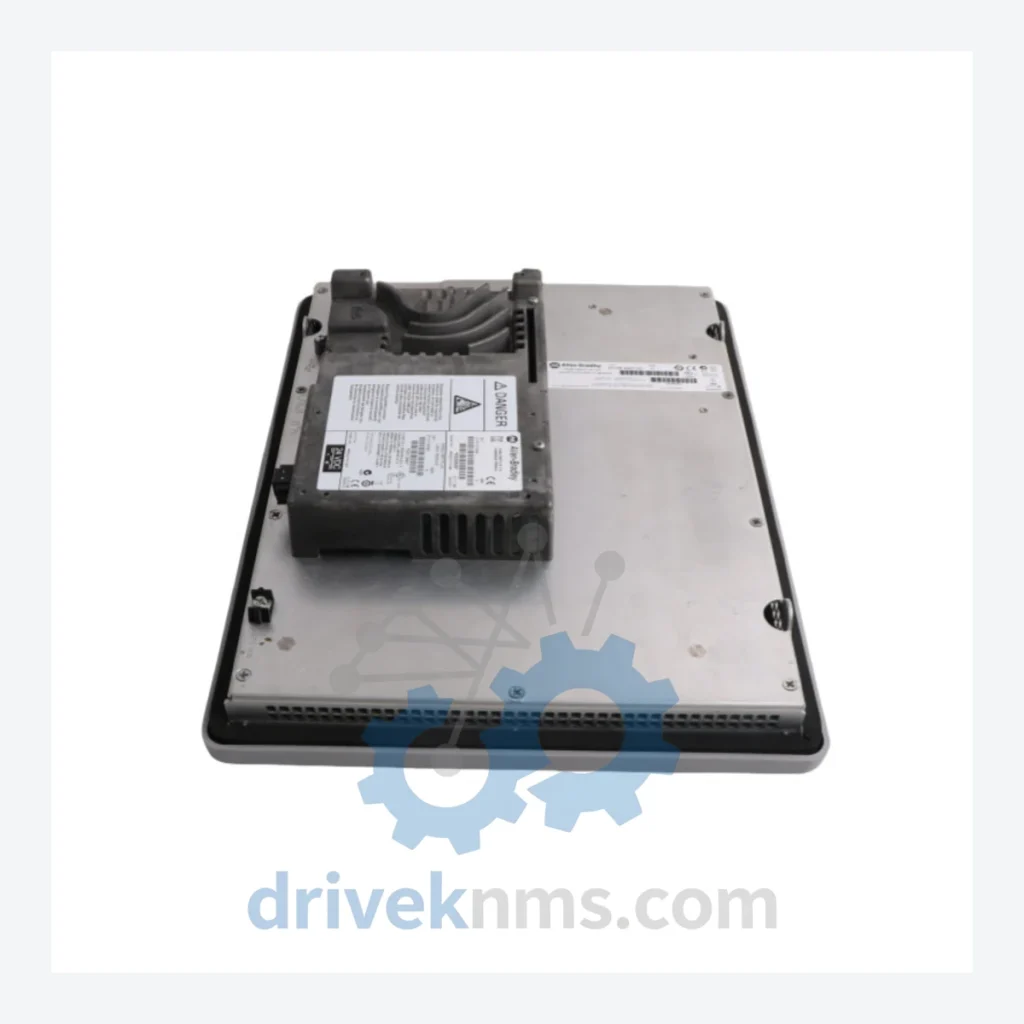

2711P-RDT12C4D9: 12.1-inch SVGA resistive touch, DC power, 512 MB RAM, Windows CE, standard performance — the subject unit of this listing.
2711P-RDT7C4D8: 7-inch WVGA resistive touch, DC power, standard performance, FactoryTalk View ME runtime.
2711P-RDT9C4D8: 9-inch SVGA resistive touch, DC power, standard performance, single Ethernet port.
2711P-RDT10C4D8: 10.4-inch XGA resistive touch, DC power, standard performance, USB host port.
2711P-RDT15C4D9: 15-inch XGA resistive touch, DC power, standard performance, panel-mount bezel.
2711P-T7C4D8: 7-inch WVGA capacitive touch, DC power, standard performance, no keypad.
2711P-T9C4D8: 9-inch SVGA capacitive touch, DC power, standard performance, aluminum front bezel.
2711P-T10C4D8: 10.4-inch XGA capacitive touch, DC power, standard performance, IP65 front face.
2711P-T12C4D9: 12.1-inch SVGA capacitive touch, DC power, standard performance, NEMA 4/4X rated.
2711P-T15C4D9: 15-inch XGA capacitive touch, DC power, standard performance, wide-temperature option.
2711P-T19C4D9: 19-inch SXGA capacitive touch, DC power, standard performance, high-brightness display.
2711P-RDT12C4A9: 12.1-inch SVGA resistive touch, AC power input variant, standard performance.
2711P-T12C4A9: 12.1-inch SVGA capacitive touch, AC power input variant, standard performance.
2711P-RP8D: PanelView Plus 7 Performance 8-inch, dual Ethernet, Intel Atom, Windows Embedded Standard 7.
2711P-RP12D: PanelView Plus 7 Performance 12.1-inch, dual Ethernet, Intel Atom, FactoryTalk View ME 10.x.
2711P-RP15D: PanelView Plus 7 Performance 15-inch, dual Ethernet, Intel Atom, expanded RAM 1 GB.
2711P-RP19D: PanelView Plus 7 Performance 19-inch, dual Ethernet, Intel Atom, high-resolution SXGA panel.

Sourcing Hard-to-Find & Obsolete PanelView Plus 7 Parts

While the PanelView Plus 7 Standard line remains in active production as of 2026, several sub-variants — particularly DC-input models with legacy firmware revisions and early-production resistive touch assemblies — have entered constrained availability through authorized distribution channels. DriveKNMS maintains a dedicated inventory of both current-production and end-of-life 2711P series units sourced from decommissioned plant assets, factory overstock, and certified refurbishment programs. All units are tested against Rockwell Automation's published functional specifications prior to shipment. For OEM-discontinued firmware versions (FactoryTalk View ME 6.x and 7.x compatible units), DriveKNMS provides pre-configured units with the customer's specified firmware revision upon request. Lead times for standard models are typically 1–5 business days; obsolete or low-volume variants are quoted individually.

Quality Control for the PanelView Plus 7 Range

Each 2711P series unit processed by DriveKNMS undergoes a structured inspection and functional test protocol. Display assemblies are evaluated for backlight uniformity, dead pixel count (IEC 61747-6 Class II threshold), and touch calibration accuracy across the full active area. The resistive touch overlay is tested for linearity and pressure sensitivity at 25 points per IEC 60068-2-1 environmental conditioning. Communication ports — including RS-232, USB, and Ethernet — are verified using loopback and network handshake tests. Internal flash and SD card interfaces are read/write tested. Units with Windows CE or WES7 operating systems are booted to FactoryTalk View ME runtime to confirm application launch and EtherNet/IP communication with a test PLC. Final inspection includes cosmetic grading, bezel integrity check, and repackaging with anti-static protection.
