Allen-Bradley PanelView Plus 7 Modules – 2711P-T12W22D9P

Technical Dossier

Product Details And Specifications

Allen-Bradley PanelView Plus 7 Series Technical Notes

The Allen-Bradley PanelView Plus 7 (2711P) series represents Rockwell Automation's primary human-machine interface (HMI) platform deployed across global heavy industry. Installations span petrochemical complexes, nuclear power auxiliary systems, offshore oil & gas platforms, pharmaceutical batch processing lines, and continuous-process steel mills. The 2711P platform is the direct successor to the PanelView Plus 6 (2711P-Bxxxx) and PanelView Plus (2711P-Rxxxx) families, maintaining backward compatibility with FactoryTalk View ME application projects while introducing capacitive multi-touch displays, improved IP65/NEMA 4X ingress protection, and integrated Ethernet/IP communication as standard.

The series covers display sizes from 4 inches to 19 inches, supporting both standard and wide-format aspect ratios. Runtime software is FactoryTalk View Machine Edition (ME). All terminals communicate natively over EtherNet/IP and support optional DH-485, DH+, ControlNet, and DeviceNet via communication modules.

The Evolution of PanelView Plus 7 Architecture

Rockwell Automation's PanelView platform has undergone four distinct architectural generations since the mid-1990s:

Generation 1 – PanelView Standard (2711-Kxxxx / 2711-Txxxx, 1992–2004): Keypad and touchscreen terminals running PanelBuilder 32 software. Monochrome and limited-color displays. RS-232/DH-485 communication only. Now fully obsolete; no replacement parts available from OEM.

Generation 2 – PanelView Plus (2711P-Rxxxx, 2003–2012): Introduced Windows CE runtime, FactoryTalk View ME, and color TFT displays. Resistive touchscreen technology. EtherNet/IP optional via CF card slot. Discontinued; spare parts sourced exclusively from aftermarket.

Generation 3 – PanelView Plus 6 (2711P-Bxxxx, 2010–2018): Refined industrial enclosure, improved brightness, USB host port added. Resistive touch retained. Fully discontinued as of 2022; Rockwell no longer accepts repair orders.

Generation 4 – PanelView Plus 7 Standard & Performance (2711P-Txxxx, 2015–present): Current active platform. Capacitive multi-touch (Performance models), projected capacitive glass, integrated dual Ethernet ports (Performance), SD card slot, USB 2.0 host. FactoryTalk View ME 10.0+ required for full feature support. The 2711P-T12W22D9P belongs to this generation — a 12.1-inch widescreen, Windows Embedded Standard 7 runtime, 1280×800 resolution terminal.

Compatibility note: FactoryTalk View ME applications developed for Generation 2 and 3 terminals can be migrated to Generation 4 with minor resolution and communication path adjustments. DH+ and DH-485 networks require the 2711P-RN15S or 2711P-RN6 communication modules when used with 2711P-T series hardware.

PanelView Plus 7 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified active and recently discontinued models within the Allen-Bradley 2711P PanelView Plus 7 series. Models are classified by display size, touch technology, and communication configuration.

Standard Touch Terminals (Resistive):

2711P-T4W21D8S: 4-inch widescreen, 480×272, Windows CE, single Ethernet, standard touch.
2711P-T7C21D8S: 7-inch standard, 800×480, Windows CE, single Ethernet, standard touch.
2711P-T7W21D8S: 7-inch widescreen, 800×480, Windows CE, single Ethernet, standard touch.
2711P-T9W21D8S: 9-inch widescreen, 800×480, Windows CE, single Ethernet, standard touch.
2711P-T10C21D8S: 10.4-inch standard, 800×600, Windows CE, single Ethernet, standard touch.
2711P-T10C4D8: 10.4-inch standard, 800×600, Windows CE, DH+/DH-485 communication, standard touch.

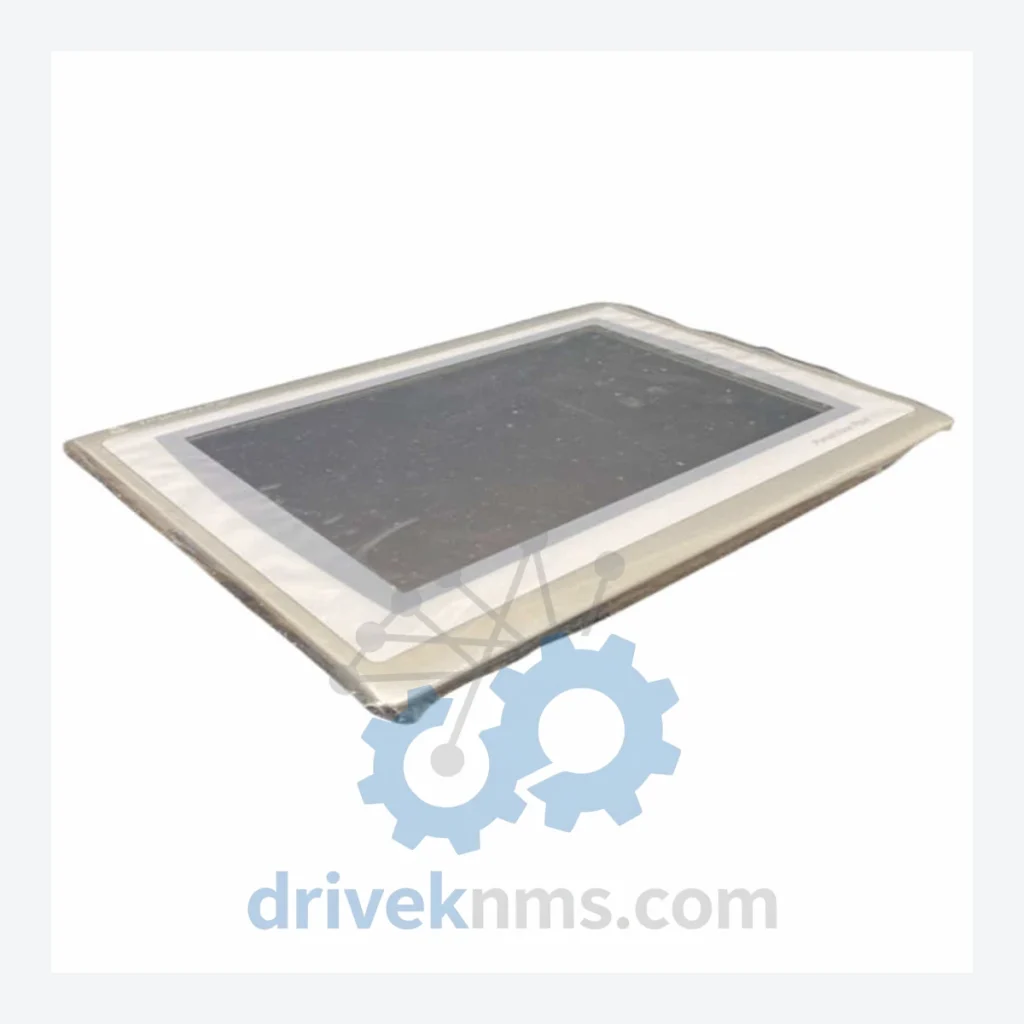

2711P-T12W22D9P: 12.1-inch widescreen, 1280×800, Windows Embedded Standard 7, single Ethernet, standard touch — current page SKU.
2711P-T15C22D9P: 15-inch standard, 1024×768, Windows Embedded Standard 7, single Ethernet, standard touch.
2711P-T19C22D9P: 19-inch standard, 1280×1024, Windows Embedded Standard 7, single Ethernet, standard touch.

Performance Touch Terminals (Capacitive Multi-Touch):

2711P-T7C22D8P: 7-inch standard, 800×480, Windows Embedded Standard 7, dual Ethernet, capacitive touch.
2711P-T9W22D8P: 9-inch widescreen, 800×480, Windows Embedded Standard 7, dual Ethernet, capacitive touch.
2711P-T10C22D8P: 10.4-inch standard, 800×600, Windows Embedded Standard 7, dual Ethernet, capacitive touch.
2711P-T12W22D9P-B: 12.1-inch widescreen Performance variant, dual Ethernet, capacitive touch, stainless bezel option.
2711P-T15C22D9P-B: 15-inch standard Performance variant, dual Ethernet, capacitive touch, stainless bezel option.
2711P-T19C22D9P-B: 19-inch standard Performance variant, dual Ethernet, capacitive touch, stainless bezel option.

Communication & Accessory Modules:

2711P-RN15S: RS-232/DH-485 communication module for 2711P-T series — enables legacy network integration.
2711P-RN6: DH+ communication module — required for Allen-Bradley PLC-5 and SLC 500 network connectivity.
2711P-RN10: ControlNet communication module — for ControlNet-based control architectures.

Sourcing Hard-to-Find & Obsolete PanelView Plus 7 Parts

— Tested surplus units with full functional verification prior to shipment.
— OEM-equivalent replacement backlights and touch digitizer assemblies for 7-inch through 15-inch models.
— SD card image restoration services for units with corrupted FactoryTalk View ME runtime installations.
— Cross-reference and migration consultation: identifying the correct Generation 4 replacement for any Generation 2 or 3 terminal, including application compatibility assessment.

Quality Control for the PanelView Plus 7 Range

Each 2711P-series terminal processed by DriveKNMS undergoes a structured inspection and functional test protocol prior to dispatch:

Display verification: Full-screen pixel mapping to identify dead pixels, backlight uniformity defects, and touch calibration drift. Acceptance threshold: zero dead pixels in the active display area.
Touch digitizer test: Multi-point touch registration across a 9-zone grid (capacitive models) or stylus pressure mapping (resistive models). Response latency measured against OEM specification (<20ms).
Communication port validation: EtherNet/IP port tested via live connection to a ControlLogix L7x controller running a FactoryTalk View ME test application. DH-485 and DH+ modules tested with SLC 500 and PLC-5 emulators.
Runtime integrity check: FactoryTalk View ME runtime version verified, Windows Embedded Standard 7 activation status confirmed, and SD card slot read/write cycle tested.
Enclosure inspection: IP65 gasket condition assessed; USB port covers and SD card door inspected for seal integrity. Units with compromised ingress protection are refurbished before release.
