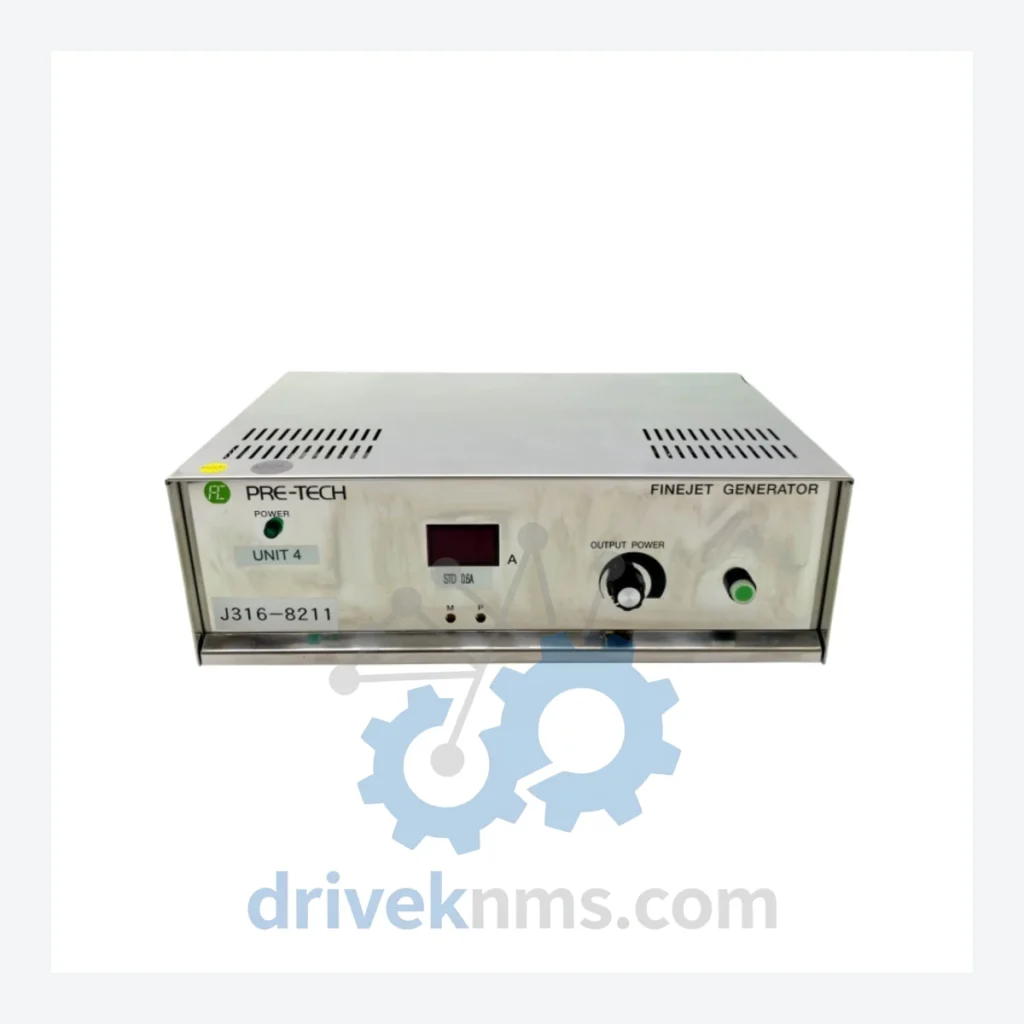

PRE-TECH PT-005J20 0100-02805 RLD10 X3 DI S-9LSS-0153 High-Voltage Generator – Obsolete FineJet Spare Part

Technical Dossier

Product Details And Specifications

PRE-TECH PT-005J20 0100-02805 RLD10 X3 DI S-9LSS-0153 High-Voltage Generator – Obsolete FineJet Spare Part

When a high-voltage generator module fails inside a PRE-TECH FineJet continuous inkjet (CIJ) printing system, the consequences extend far beyond a single machine going offline. In many production environments — food & beverage coding lines, pharmaceutical batch marking, automotive component traceability — the entire downstream process halts. A forced migration to a modern CIJ platform carries engineering integration costs, new operator training, line reconfiguration, and regulatory re-validation that routinely exceed $200,000–$500,000 USD per line. The PT-005J20 0100-02805 generator module is the component that stands between your facility and that capital expenditure. DriveKNMS maintains verified stock of this discontinued assembly specifically to protect facilities that cannot afford unplanned system retirement.

Technical Specifications

Note: Electrical parameters such as output voltage range, frequency, and power draw are not published here to prevent misapplication. Contact our technical team for verified datasheet confirmation before ordering.

Solving the Discontinued Hardware Crisis

The PRE-TECH FineJet platform was deployed extensively across European and Asian manufacturing facilities during the 1990s and 2000s. Its high-voltage generator module — this assembly — is the core of the ink charging and deflection circuit that makes CIJ printing physically possible. Without a functioning generator, the printhead cannot charge ink droplets, and the entire marking operation ceases.

PRE-TECH has ceased production of this component. The OEM supply chain is closed. Facilities that have not secured spare inventory face a binary choice when this module fails: source it from the secondary market, or retire the entire printer and absorb the full cost of platform migration.

For plant managers operating under capital expenditure freezes or managing aging assets through end-of-life cycles, the secondary market is not a compromise — it is the only rational strategy. A single verified spare of the PT-005J20 0100-02805 can extend a production line's operational life by 5 to 10 years at a fraction of the cost of system replacement. Facilities that maintain a buffer stock of two to three units of this module effectively eliminate unplanned downtime risk from this failure mode entirely.

The broader principle applies across industrial automation: the cost of proactive spare parts procurement for discontinued components is almost always less than 5% of the cost of the forced system upgrade it prevents. For a CIJ line running three shifts, the daily production value at risk during an unplanned outage typically exceeds the cost of this spare part by an order of magnitude.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step qualification process to all discontinued modules before they are offered for sale:

• Step 1 – Electrolytic Capacitor Inspection: Aging electrolytic capacitors are the primary failure mode in high-voltage generator assemblies stored over extended periods. Each unit undergoes visual and ESR (Equivalent Series Resistance) testing to identify capacitors that require replacement before the unit is commissioned.
• Step 2 – Firmware & Configuration Verification: Where applicable, firmware version and any embedded configuration parameters are verified against known-good references for the FineJet platform to ensure compatibility with the target system.
• Step 3 – Pin and Connector Corrosion Audit: All connector pins, edge contacts, and solder joints are inspected under magnification for oxidation, corrosion, or mechanical damage. Affected contacts are treated or replaced prior to dispatch.
• Step 4 – Functional Bench Test: Units are powered and tested under controlled conditions to confirm basic operational integrity before packaging.
• Step 5 – Anti-Static Packaging & Documentation: Each unit is sealed in ESD-safe packaging with a condition report and, where available, original documentation or test records.

Key Features for System Maintenance

• Drop-in Replacement: This is the original OEM part number. Installation requires no hardware modification, no software reconfiguration, and no changes to the printhead or ink system. Maintenance personnel familiar with the FineJet platform can complete the swap using standard procedures.
• No Re-programming Required: Unlike third-party alternatives or cross-platform substitutions, the original assembly carries the correct embedded parameters for the FineJet control architecture. There is no risk of parameter mismatch or communication errors with the printer controller.
• Avoids Engineering Reconstruction Costs: Substituting a non-OEM generator or migrating to a different CIJ platform requires electrical re-engineering, new cable harnesses, and often PLC or HMI interface modifications. The original part eliminates all of these costs.
• Supports Long-Term Asset Protection Strategy: Procurement of this spare is a documented, defensible maintenance decision. It protects capital assets, maintains production continuity, and defers system retirement on the facility's own schedule rather than the OEM's.

FAQ

Q: What warranty applies to a discontinued part?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers failure under normal operating conditions and excludes damage from incorrect installation or incompatible system configurations.

Q: How do I confirm this is a genuine OEM part and not a counterfeit?
A: We provide full traceability documentation upon request, including sourcing records and, where available, original packaging or serialization. Our technical team can also cross-reference the part marking against known PRE-TECH manufacturing codes.

Q: Should I purchase more than one unit?
A: For any facility operating a PRE-TECH FineJet system without a current spare, the answer is yes. Given that this component is no longer manufactured, secondary market availability is finite and will decrease over time. Facilities with multiple FineJet printers should evaluate holding one spare per two machines as a minimum buffer. The cost of a second unit is negligible compared to the cost of a single unplanned production stoppage.

Q: Can you source additional units if I need more than you have in stock?
A: DriveKNMS maintains active sourcing networks for discontinued industrial components. Contact us with your quantity requirement and we will advise on availability and lead time.
